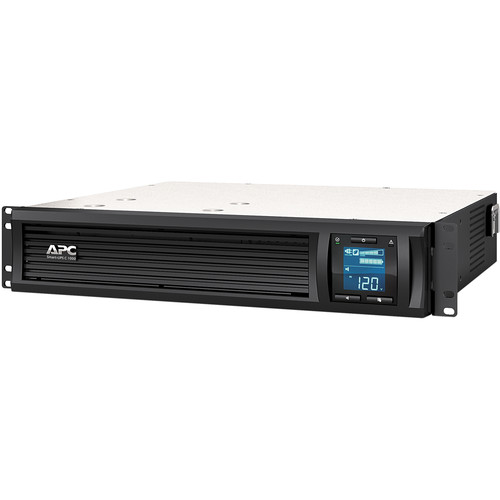

Designed for servers, point-of-sale, routers, switches, hubs, and other network devices, the Smart-UPS C Battery Backup & Surge Protector with SmartConnect from APC has a 2 RU form factor and delivers intelligent and efficient network power protection from entry level to scalable runtime. It can provide 105 minutes of use at 50W, 64 minutes of use at 100W, 34.7 minutes of use at 200W, 22.5 minutes of use at 300W, 16 minutes of use at 400W, 11.9 minutes of use at 500W, and 9.2 minutes of use at 600W.

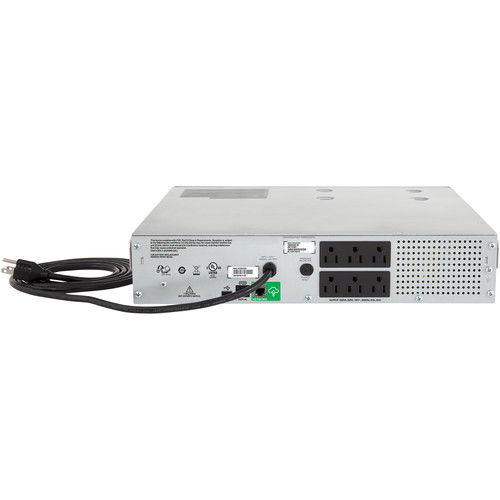

This Smart-UPS C features an output of 600W / 1000 VA, an input of 120V @ 50/60 Hz ±3 Hz, six NEMA 5-15R battery backup outlets, a NEMA 5-15P input connection, a surge energy rating of 680 joules, line interactive topology, and a sine waveform. Included PowerChute Network Shutdown management software helps to provide unattended, yet proper shutdowns of network operating systems, and also included are rack-mounting support rails and a USB cable. Support is provided by a limited 2-year repair or replace warranty and a limited lifetime $150,000 equipment protection policy.
APC SmartConnect makes the Smart-UPS more adaptable and easier to deploy, enabling you to view the status of your UPS through a secure web portal. Through this remote management interface, you’ll receive automatic notifications, firmware updates, and advanced support.
Additional information
| Weight | 47 lbs |
|---|---|
| Dimensions | 22.5 × 22 × 9 in |
| Total Outlets | 6 x NEMA 5-15R |
| External Battery Connection | None |
| Waveform | Sine Wave |
| Chemistry | Lead-Acid |
| Full-Load Runtime | 9.2 Minutes |
| Half-Load Runtime | 22.5 Minutes |
| Charging Time | 3 Hours |
| User Replaceable | Yes |
| Replacement Battery | APCRBC124 |
| Hot-Swap Support | Yes |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Load Capacity | 1000 VA |
| Operating Humidity | 0 to 95% |
| Storage Temperature | 5 to 113°F / -15 to 45°C |
| Storage Humidity | 0 to 95% |
| Operating Altitude | 0.00 to 9842' / 0 to 3000 m |
| Storage Altitude | 0.00 to 49, 212' / 0 to 15, 000 m |
| Noise Level | 41 dBA |
| Cable Length | 8.01' / 2.44 m |
| Rackmount Size | 2RU |
| Thermal Dissipation | 175 BTU/Hour |
| Voltage Distortion | |
| Protected Outlets | 6 x NEMA 5-15R (Battery and Surge) |
| Topology | Line Interactive |
| Plug Type | NEMA 5-15P |
| USB Charging Ports | None |
| SmartSlot Interface | None |
| Coax Protection | None |
| Data Line Protection | RJ45 |
| Communications | USB via Type-A<br />Serial via RJ45 |
| Emergency Power Off (EPO) Support | No |
| Noise Filtering | 0.3% |
| Transfer Time | 6 to 10 ms |
| Output Frequency | 60 Hz ± 3 Hz |
| Surge Energy Rating | 680 Joules |
| Maximum Wattage | 600 W |
| Nominal Input Voltage | 120 VAC |
| Input Voltage Range | 93 to 130 VAC |
| Input Voltage Adjustable Range | 85 to 136 VAC |
| Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) |
| Nominal Output Voltage | 120 VAC |
| Output Voltage Range | 110 to 127 VAC |
| Dimensions (W x H x D) | 17.01 x 3.39 x 15.98" / 43.2 x 8.6 x 40.6 cm |
