Description

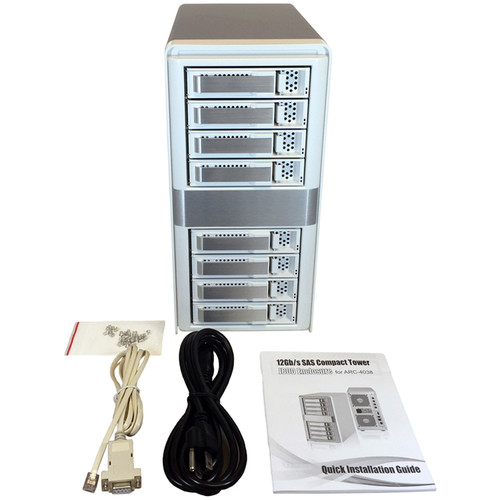

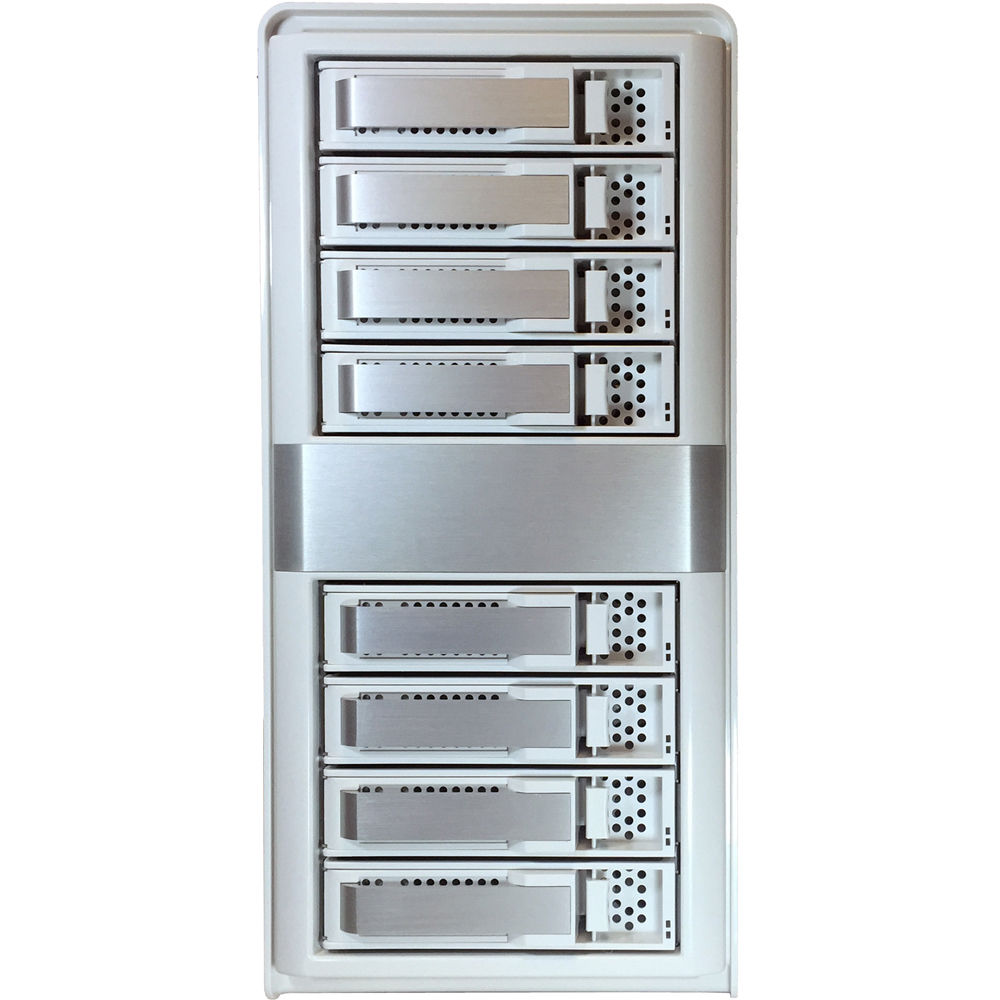

With the ability to accommodate up to eight 12 Gb/s, Serial-Attached SCSI (SAS) drives or 6 Gb/s Serial ATA (SATA) drives, the ARC-4038 8-Bay 12Gb SAS Expander JBOD Tower Enclosure from Areca users can quickly and easily expand their storage. This tower enclosure is capable of housing up to eight 2.5″ and or 3.5″ disk drives at speeds of up to 15K for SAS drives and up to 10K for SATA drives.
With plug-and-play configuration this tower enclosure can be set up in no time. On the back of the unit you will find eight SAS hard drive connectors, a single power supply connector, two cooling fan module connectors, and a single expander board connector. Users can also take advantage of four SFF-8644 and one SFF-8088 connectors making it easy to connect to host/expansion units. To manage this tower enclosure, Areca has integrated into the unit one 6-pin RJ-11 connector and one RJ-45 LAN connector.
Additional information
| Weight | 18.1 lbs |
|---|---|
| Dimensions | 15.3 × 13.8 × 7.7 in |
| SAS / SATA Connectivity | SAS hard drives:<br> Up to 8 x 2.5" or 3.5" SAS hot-plug hard drives (12.0 Gb/s) at speeds of 7.2K, 10K or 15K RPM<br><br> SATA hard drives:<br> Up to 8 x 2.5" or 3.5" SATA hot-plug hard drives (6.0 Gb/s) at speeds of 7.2K or 10K RPM |
| JBOD Controller Modules | Expander board: 1 module<br> Sensors: 1 sensor on the expander board |
| Backplane | 8 x SAS hard-drive connectors<br> 1 x power supply connector<br> 2 x cooling fan module connectors<br> 1 x sets of expander board connector |
| Back Panel Connectors | I/O connectors:<br> 2 x SFF-8644 + 1 x SFF-8088 "Host In" connectors for connection to the host<br> 2 x SFF-8644 "Expansion Out" connectors for expansion to an additional JBOD enclosure<br><br> Management connectors:<br> 1 x 6-pin UART RJ-11 connector<br> 1 x RJ-45 LAN connector (manufacture manager only) |
| LED Indicators | Hard-drive carrier:<br> 1 x Blue single-color activity LED<br> 1 x Two-color LED status indicator per drive<br><br> Expander board:<br> 2 x One-color LED status indicators for each SAS host port, one for SAS host port link and one for the activity status<br> 2 x One-color LED status indicators for each SAS expansion port, one for SAS expansion port link and one for the activity state |
| Wattage | 220 W maximum continuous |
| Voltage | 90-256 V rated, 50/60 Hz |
| Amperage | 12 V/16 A, 5 V/16 A, 3.3 V/14 A |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -40 to 140°F (-40 to 60°C) |
| Operating Humidity (Relative) | 10 to 80% (non-condensing) |
| Storage Humidity | 5 to 95% (non-condensing) |
