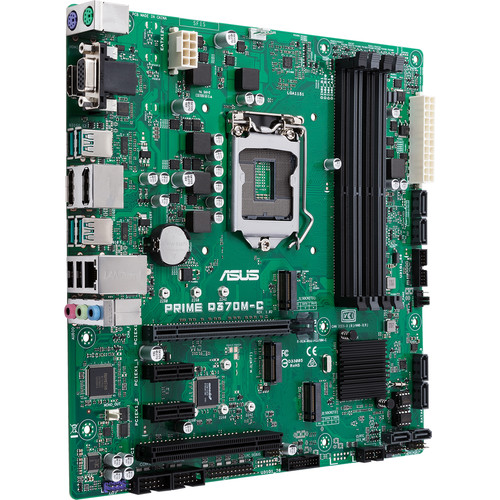

ASUS Prime Q370M-C/CSM Business Motherboard

The Prime Q370M-C/CSM Business Motherboard from ASUS supports Intel 9th and 8th Generation Core i7/Core i5/Core i3/Pentium/Celeron processors. The 9.6 x 9.6″ motherboard comes equipped with an Intel Q370 chipset for two M.2 Socket 3 and six SATA 6 Gb/s ports.

The PRIME Q370M-C/CSM has four DDR4 DIMM slots that can support up to 64GB non-ECC, un-buffered memory. They support up to 2666 MHz memory speeds as well as Intel Extreme Memory Profile (XMP).

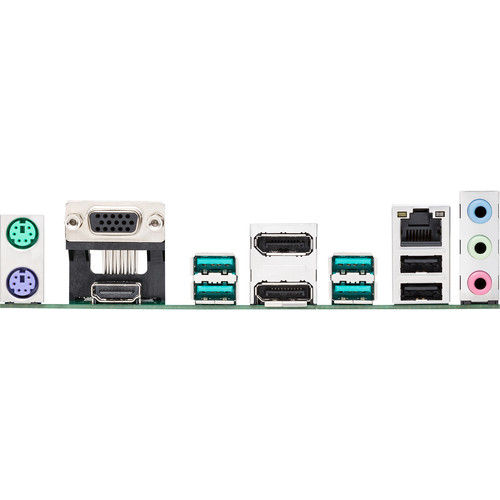

This motherboard features two USB 3.1 Gen 1 connectors that support an additional four USB 3.1 Gen 1 ports, two USB 2.0 connectors that support an additional four USB 2.0 ports, two COM ports, six SATA 6 Gb/s connectors, a 4-pin CPU fan connector, two 4-pin chassis fan connectors, a 24-pin EATX power connector, an 8-pin ATX 12V power connector, a front-panel audio connector, an internal speaker connector, and a chassis intrusion connector. On the back panel there are two PS/2 connectors for the keyboard and mouse, a D-Sub connector, two DisplayPorts, an HDMI port, an RJ45 LAN port, four USB 3.1 Gen 2 Type-A ports, two USB 2.0 ports, and three audio jacks. As for expansion, it provides a PCIe 3.0/2.0 x16 slot, two PCIe 3.0/2.0 x1 slots, and a PCI slot.
