Description

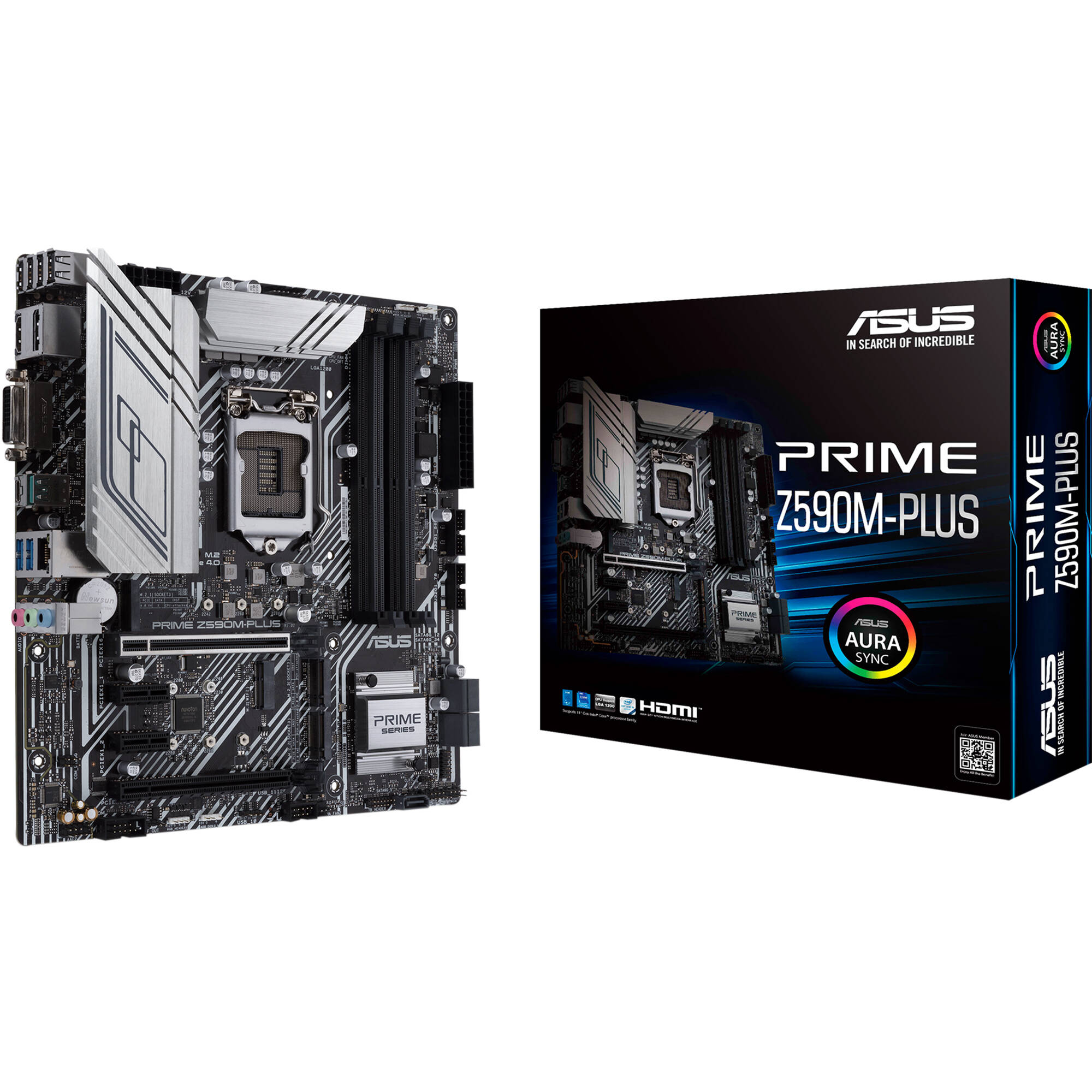

Get your build off on the right foot with the Prime Z590-Plus LGA 1200 Micro-ATX Motherboard from ASUS. Embracing both style and utility, the Prime Z590-PLUS allows you to take advantage of resource-demanding components while offering a clean look suitable for any builder. Featuring a robust power design, enhanced cooling features, and support for Intel 10th and 11th gen processors, the Prime Z590-PLUS provides you with high-quality performance whether you are a business professional or a gaming enthusiast.

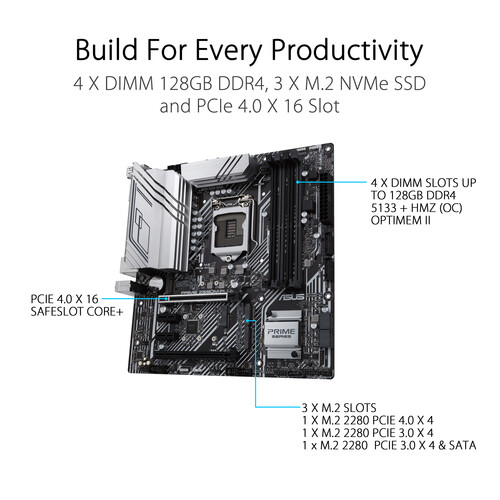

When paired with 11th Gen Intel CPUs, the Z590 chipset gives you access to PCIe 4.0 integration which offers enhanced speeds for graphics cards and M.2 solid-state storage drives. Install up to 128GB of DDR4 RAM with speeds up to 5133 MHz (O.C.), enabling you to multitask with ease. With OptiMem II, you can experience improved memory stability with lower latency, optimizing your overall performance.
Additional information
| Weight | 2.82 lbs |
|---|---|
| Dimensions | 10.9 × 10.5 × 2.7 in |
| Chipset | Intel Z590 |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode)<br />1 x PCIe 3.0 x16 (x4 mode)<br />2 x PCIe 3.0 x1 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Audio Codec | Realtek ALC897 (7.1-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| ROM | 192 Mb |
| Legacy | 1 x Serial |
| Add-On | 1 x Thunderbolt Card Header |
| Diagnostics | Clear CMOS |

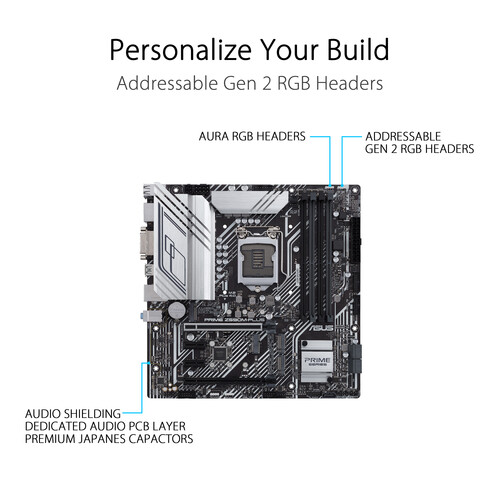

| LED Header | 4 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX<br />1 x 4-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 2 x 4-Pin CPU<br />2 x 4-Pin System |
| Optane Memory Support | Yes |
| CPU Socket | LGA 1200 |
| U.2 | None |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)<br />1 x M Key 2260, 2280 (PCIe 3.0 x4) |
| SATA | 5 x SATA III |
| ECC Support | Non-ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5133 MHz |
| Memory Slots | 4 x 288-Pin |
| Ethernet / Controller | 1 x Intel I219V Gigabit |
| Display | 1 x DisplayPort 1.4<br />1 x DVI-D <br />1 x HDMI 2.0 |
| Thunderbolt | None |
| USB | 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 3 USB Type-A Port) |
| Form Factor | Micro-ATX |
Reviews (8)
8 reviews for ASUS Prime Z590M-PLUS LGA 1200 Micro-ATX Motherboard
Only logged in customers who have purchased this product may leave a review.
Related products
Desktop Components
$12.99
Desktop Components
$44.80
Desktop Components
$6.63
Desktop Components
$69.22
Desktop Components
$232.49
Desktop Components
$157.49
Desktop Components
$107.99
Desktop Components
$104.64
Dane Goldner
Verified Purchase
Very happy with this motherboard. It performs flawlessly and has the flexibility available if I choose to use it.
Emmie Schmeler
Verified Purchase
A wonderful bored for a entry level build at a great price and plenty of room to grow.
Adrain Bayer
Verified Purchase
If you plan to use this motherboard for anything other than Windows, then forget it. The board itself is cheaply made and the quality of its build is very poor. You can see cold soldring shots all over the board. Worst, it is not compatable with Operating Systems other than Windows. It took me a whole day to understand why it will not boot from a bootable Linux on USB. After a whole day of search, I found out that you need to install a legacy Graphics card in order for the board to be compatable with operating systems other than Windows. What a nightmare of failure in design and engineering. Why would I need to install a dedicated Graphics card to make the board compatable with other operating systems. The board has a built-in HDMI and I was using a CPU with built-in GPU. This is just a wast of money and highly recommend that you look at other boards from MSI or Gigabyte. I am very disappointed at ASUS for this failure board. Read about it on the internet to hear all kind of non sense tricks that you need to do to make this bord work.
Arlo Gusikowski
Verified Purchase
Excellent motherboard. Supports Intel Optane RST. The performance is incredible. I installed Windows 10 and when I log in, I feel like I am on my iPad. Everything is just “there”. No waiting. ASUS documentation is good and ASUS phone support was great. Everything works well! Love it.
Casimir Friesen
Verified Purchase
Up and installed in an hour. Easy to install. Super fast freight 1 day
Monroe Mann
Verified Purchase
I really like the features on this board, what I don’t like is I have to upgrade the BIOS to run Windows 11.
Mariana Kilback
Verified Purchase
Great board for a mini build. Works great and has good BIOS controls. I am using on-board sound and that sounds fine but I am not a heavy gamer.
Khalid Funk
Verified Purchase
Works well with the 10th generation i9-10900k and Windows 11. No issue installing another brand’s m.2 wifi.
