Description

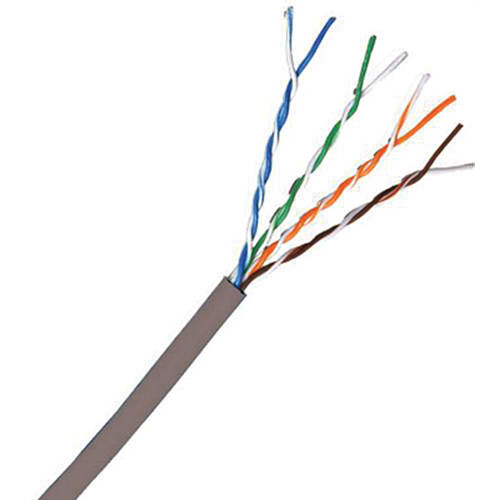

The Comprehensive Cat 5e 350 MHz Shielded Stranded Cable is designed for high-speed local area networks. It features 4 shielded twisted pairs with stranded 24 AWG conductors, making it ideal for environments with high electromagnetic interference (EMI/RFI). This cable meets TIA standards 568 & 570 for reliable connectivity.
Additional information
| Weight | 26.55 lbs |
|---|---|
| Dimensions | 14.8 × 14.1 × 8.4 in |
| Conductors | 4 twisted pairs 24 AWG shielded bare copper-stranded cable |
| Bandwidth | Supports voice / data / video distribution applications up to 350 MHz |
| Standards | Meets all Cat5E TIA/EIA standards, Verified to EIA/TIA 568B.2 |
| Conductor DC Resistance | 89 Ω/km (maximum) |
| Insulation Resistance | 100 Ω/km (minimum) |
| Nominal O.D | 0.2" (5.08 mm) |
| Outer Diameter | 0.21" (5.5 mm) |
| UL Rating | CMR |
| Jacket | PVC |
| RoHS Compliant | Yes |
