Description

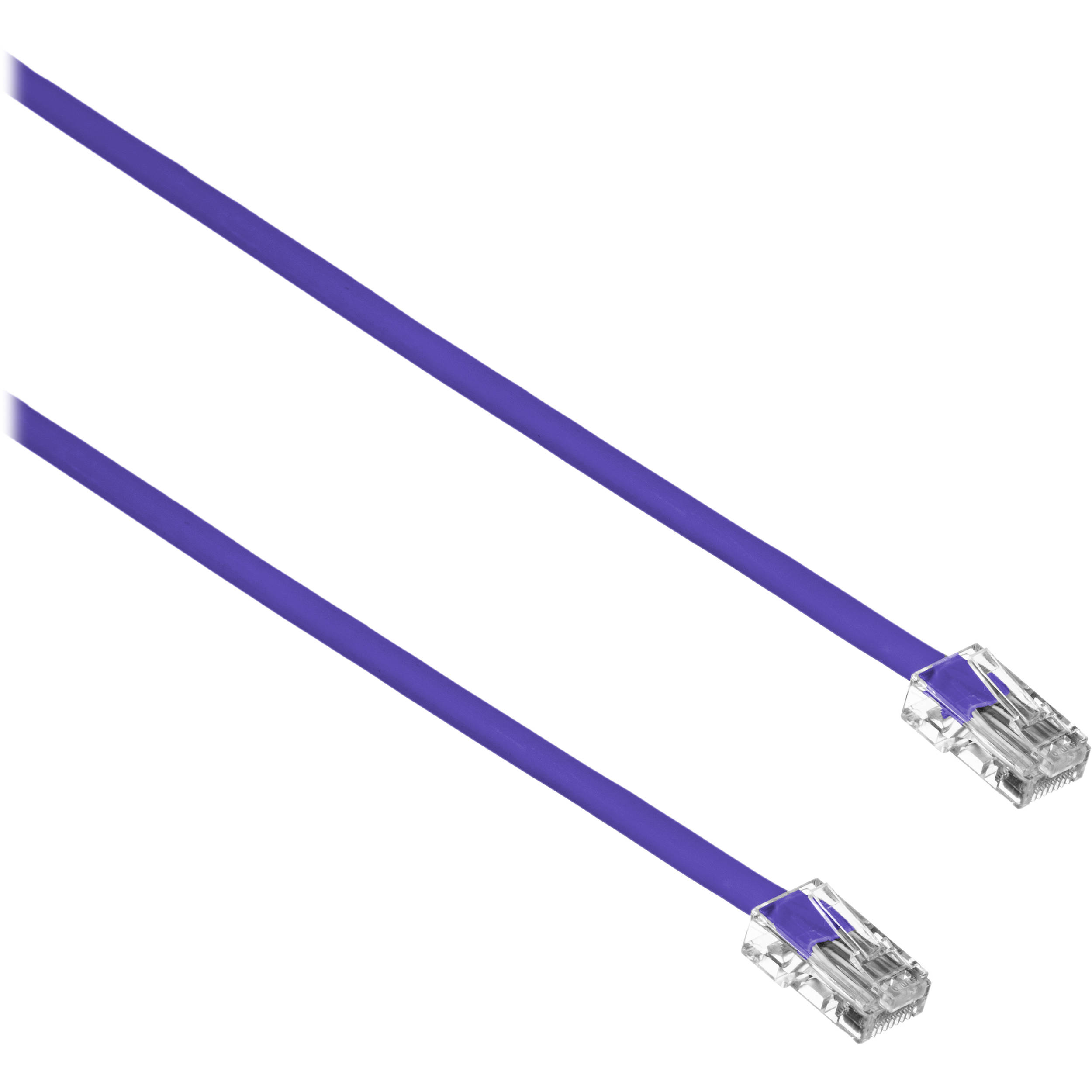

The Comprehensive CAT5e 350 MHz Assembly Cable enhances your network with high-speed cabling for data, voice, and video distribution, supporting advanced fast Ethernet and gigabit computer networks. At 14 feet long, this cable handles bandwidth-intensive applications up to 350 MHz and meets Cat 5e TIA/EIA standards, offering lower impedance and improved structural return loss (SRL) compared to standard 100 MHz cables. Its purple PVC jacket allows for color-coding in network installations, while a shortened body plug minimizes Near-End Crosstalk levels for optimal performance.
Additional information
| Weight | 0.35 lbs |
|---|---|
| Dimensions | 6 × 5 × 0.75 in |
| Connector 1 | RJ45 male |
| Connector 2 | RJ45 male |
| Conductor | 4 twisted pairs, 24 AWG bare copper stranded cable |
| Performance Grade | Good |
| Bandwidth | Supports voice / data / video distribution applications up to 350 MHz |
| Standards | Meets all Cat5E TIA / EIA standards, verified to EIA / TIA 568B.2 |
| Cable | Style: Assembled connectors, no boot |
| Conductor DC Resistance | 89 Ω/km (maximum) |
| Insulation Resistance | 100 Ω/km (minimum) |
| Material | Connector: Polycarbonate <br>Contact: Copper alloy plated with 50 µ gold |
| Outer Diameter | 0.2" / 5.3 mm |
| Jacket | PVC |
| RoHS Compliant | Yes |
