Description

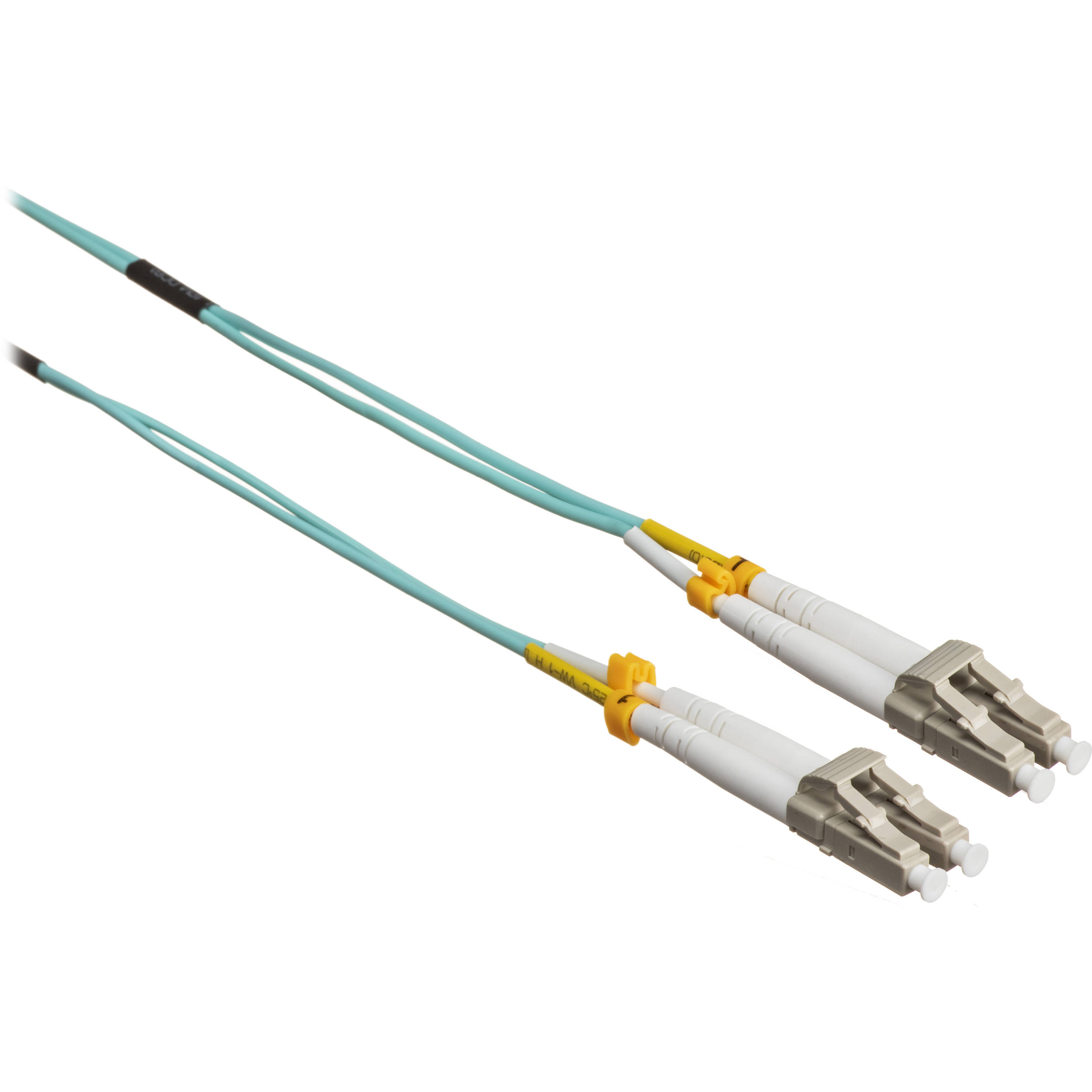

The aqua colored 22.9′ 10GB LC/LC Duplex 50/125 Multimode Fiber Patch Cable from Comprehensive is a laser-optimized multimode fiber (LOMMF) cable that provides backward compatibility with existing 50/125 equipment while providing the performance headroom required to support laser light sources and 10 Gigabit applications. This Optical Multimode 3 (OM3) fiber cable supports 2,000 MHz/km EMB at 850nm, and provides 10 Gigabit transfers up to 984.2′ (300m) using an 850nm VCSEL source. The aqua colored jacket is PVC (OFNR-rated).
Additional information
| Weight | 0.14 lbs |
|---|---|
| Dimensions | 6.95 × 6.55 × 0.85 in |
| Connector | 2 x LC male |
| Fiber Type | Optical Multimode 3 (OM3) fiber supporting 2, 000 MHz/km EMB at 850 nm |
| Loss | Maximum Connector Loss: 0.3 dB<br>Typical Connector Loss: 0.2 dB<br>Typical Return Loss: -25 dB |
| Construction | Buffer Material: PVC<br>Buffer OD: 0.035" (900 µm)<br>Jacket Material: PVC (OFNR riser-rated)<br>Jacket OD: 0.1" (3.0 mm) |
| Additional | Installation Tensile Load: 100 N (445 lb / 202 kg)<br> Long-Term Tensile Load: 50 N (222 lb / 101 kg)<br> Maximum Tensile Load: 100 N/cm<br> Installation (Loaded) Minimum Bend Radius: 1.97" (5.00 cm)<br> Long-Term (Unloaded) Minimum Bend Radius: 1.2" (3.0 cm)<br> Crush Resistance: 750 N/cm<br> Impact Resistance: 1, 000 cycles<br> Flex Resistance: 5, 000 cycles<br> Attenuation at 1, 300 nm: 1 dB/km<br> Attenuation at 850 nm: 3.5 dB/km |
| Operating Temperature | -4 to 176°F (-20 to 80°C) |
| Compliance | RoHS |
| Dimensions (H x W x D) | LC Connector: 0.4 x 0.5 x 2.0" (10.8 x 12.5 x 50.0 mm) (with installed duplex clip) |
| Cable Length | 22.9' (7.0 m) |
