Description
High-Speed Data Transmission Made Easy

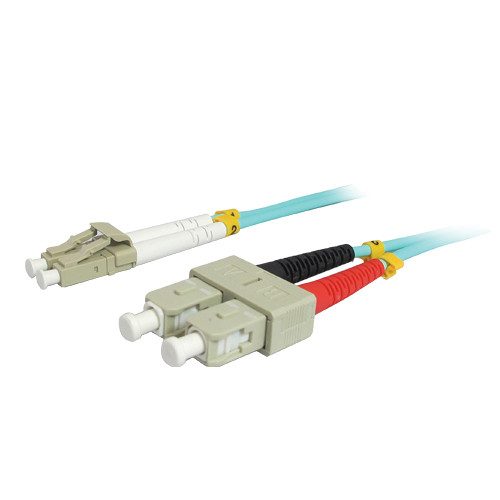

Upgrade your network infrastructure with the Comprehensive 10GB LC/SC Duplex 50/125 Multimode Fiber Patch Cable, designed for high-performance and reliability. This aqua colored 3.3ft cable is a laser-optimized multimode fiber (LOMMF) solution, ensuring backward compatibility with existing 50/125 equipment while supporting advanced 10 Gigabit applications.
Key Features:
- OM3 Rated: Supports 2,000 MHz/km EMB at 850nm for high-bandwidth applications.
- High-Speed Transfers: Enables 10 Gigabit transfers up to 984.2′ (300m) using an 850nm VCSEL source.
- Durable Construction: Features a PVC jacket rated OFNR for reliability and durability.
- LC/SC Duplex Connectors: Ensures secure and precise connections for optimal performance.
This multimode fiber patch cable is ideal for data centers, enterprise networks, and any environment requiring fast and reliable data transmission. With its aqua colored jacket, it’s easily identifiable as an OM3 cable, ensuring you’re getting the performance you need. Trust Comprehensive for all your fiber optic needs, backed by quality and innovation.
Enhance your network’s capabilities with this high-quality fiber patch cable, designed to meet the demands of today’s data-intensive applications.
Additional information
| Weight | 0.07 lbs |
|---|---|
| Dimensions | 6.3 × 5.95 × 1 in |
| Connector | 1 x LC male, 1 x SC male |
| Fiber Type | Optical Multimode 3 (OM3) fiber supporting 2, 000 MHz/km EMB at 850 nm |
| Loss | Maximum Connector Loss: 0.3 dB<br>Typical Connector Loss: 0.2 dB<br>Typical Return Loss: -25 dB |
| Construction | Buffer Material: PVC<br>Buffer OD: 0.035" (900 µm)<br>Jacket Material: PVC (OFNR riser-rated)<br>Jacket OD: 0.1" (3.0 mm) |
| Additional | Installation Tensile Load: 100 N (445 lb / 202 kg)<br> Long-Term Tensile Load: 50 N (222 lb / 101 kg)<br> Maximum Tensile Load: 100 N/cm<br> Installation (Loaded) Minimum Bend Radius: 1.97" (5.00 cm)<br> Long-Term (Unloaded) Minimum Bend Radius: 1.2" (3.0 cm)<br> Crush Resistance: 750 N/cm<br> Impact Resistance: 1, 000 cycles<br> Flex Resistance: 5, 000 cycles<br> Attenuation at 1, 300 nm: 1 dB/km<br> Attenuation at 850 nm: 3.5 dB/km |
| Operating Temperature | -4 to 176°F (-20 to 80°C) |
| Compliance | RoHS |
| Dimensions (H x W x D) | LC Connector: 0.4 x 0.5 x 2.0" (10.8 x 12.5 x 50.0 mm) (with installed duplex clip)<br>SC Connector: 0.4 x 1.0 x 2.3" (10.6 x 26.0 x 58.0 mm) (with installed duplex clip) |
| Cable Length | 3.3' (1.0 m) |
