Description

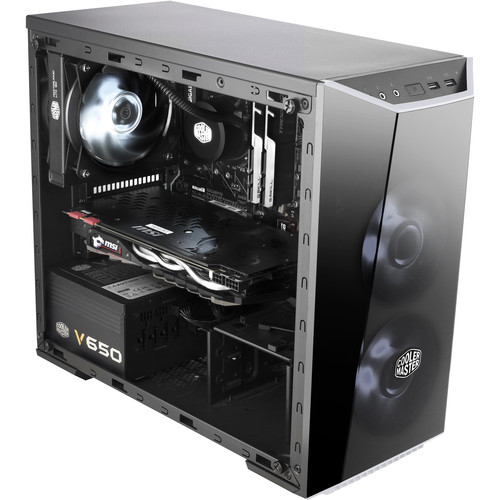

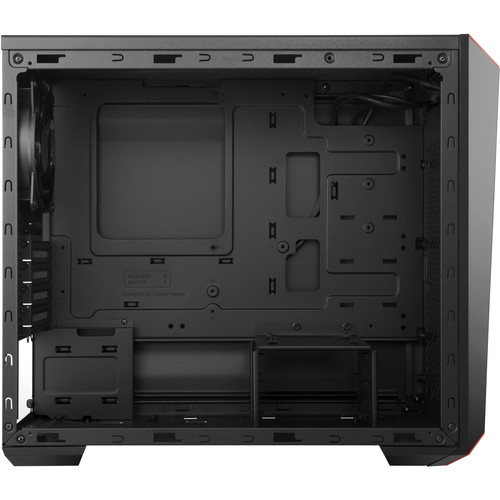

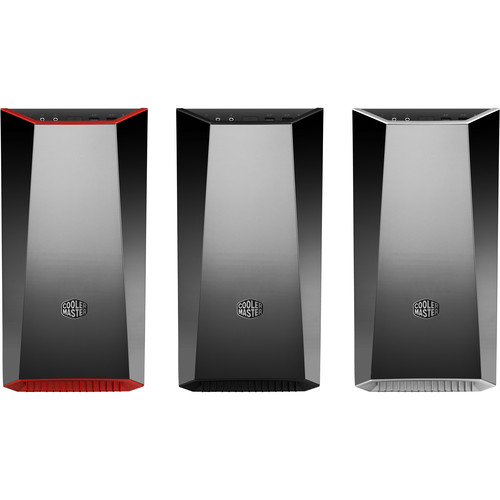

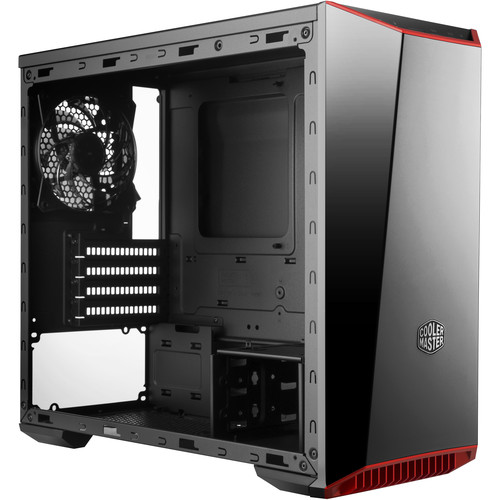

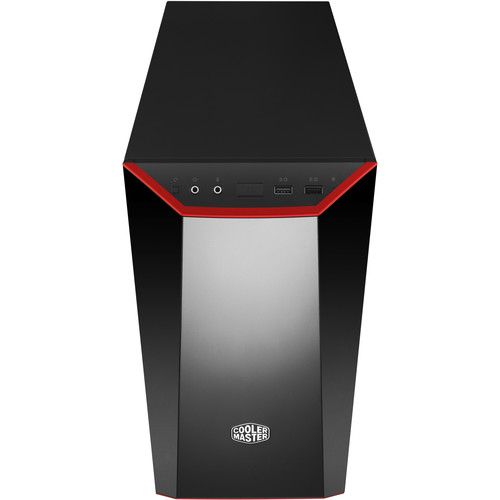

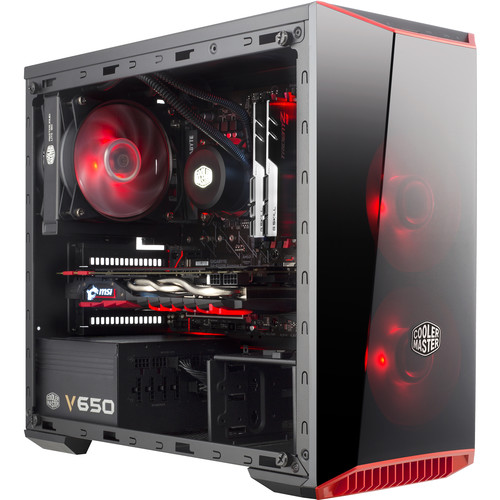

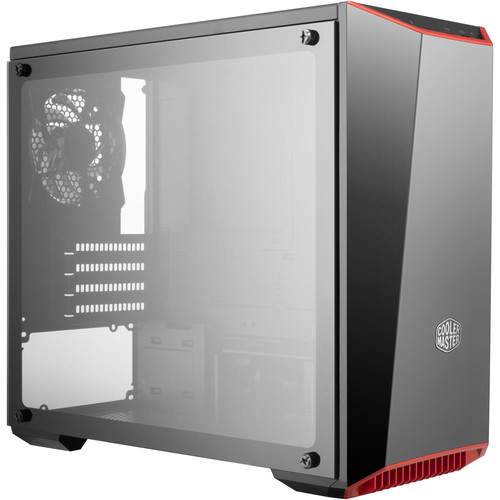

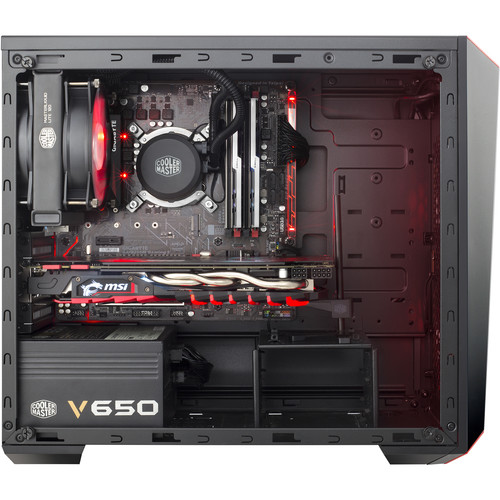

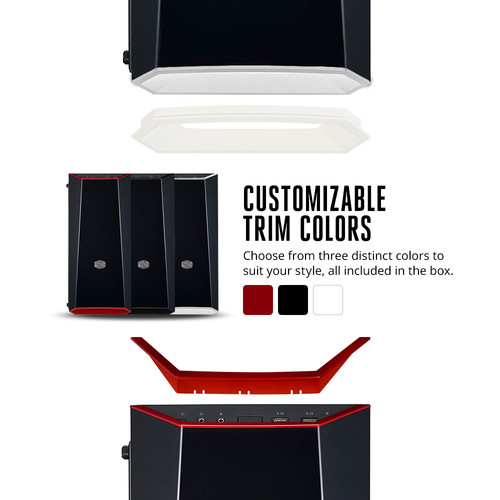

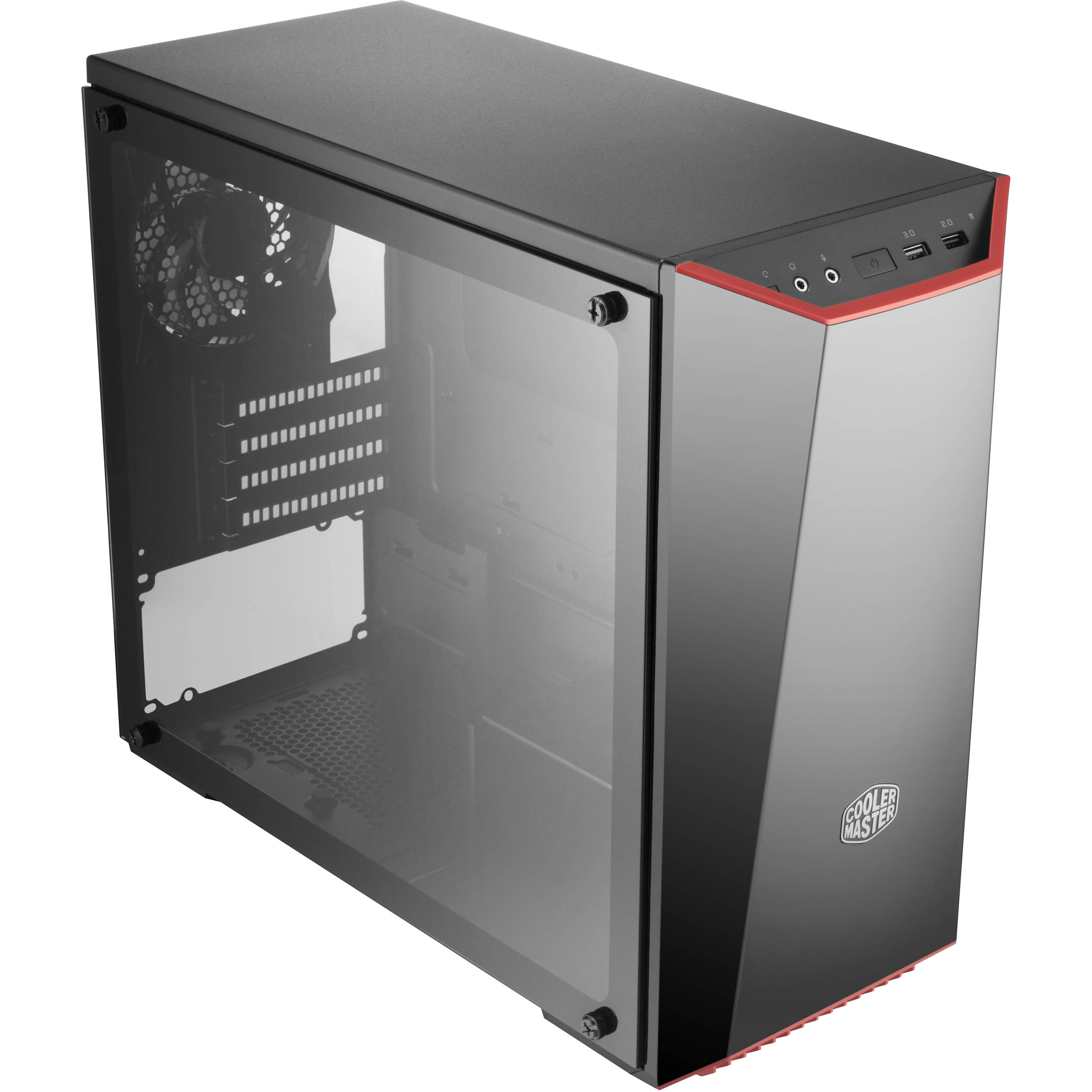

The MasterBox Lite 3.1 TG Mini Tower Case from Cooler Master supports Micro-ATX and Mini-ITX motherboards. The case features one 2.5″ SSD drive bay, two 3.5″ HDD drive bays, and four expansion slots. A sleek DarkMirror front panel and three included custom trim colors offer a great first entry point for customization. The MasterBox Lite 3.1 TG supports GPUs up to 15″ and CPU Coolers up to 6.2″ tall. A space of 0.4-0.6″ behind the motherboard tray offers hidden cable management.
Additional information
| Weight | 13.3 lbs |
|---|---|
| Dimensions | 20 × 17 × 10 in |
| Motherboard Support | Micro-ATX, Mini-ITX |
| Maximum Radiator Size (Rear) | 120 mm |
| Dimensions (W x H x D) | 8.23 x 15 x 17.95" / 209 x 381 x 456 mm |
| Cable Management Space | 0.61" / 15.5 mm |
| Built-In Lighting | No |
| Certifications | None |
| Material | Plastic, Steel, Tempered Glass |
| Windowed Panel | Yes |
| Display Connections | None |
| Audio Connections | 1 x 3.5 mm Input<br />1 x 3.5 mm Output |
| Connections | 1 x USB Type-A (USB 2.0)<br />1 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
| Filter Locations | Bottom, Front |
| Fan Controller Included | No |
| Fan Mounting (Internal) | None |
| Maximum Radiator Size (Front) | 240 mm |
| External Drive Bays | None |
| Fans Included (Rear) | 1 x 120 mm |
| Fan Mounting (Bottom) | None |
| Fan Mounting (Top) | None |
| Fan Mounting (Side) | None |
| Fan Mounting (Rear) | 1 x 120 mm<br> |
| Fan Mounting (Front) | 2 x 120 mm<br> |
| PSU Mounting Location | Bottom |
| Maximum PSU Length | 6.30" / 160 mm |
| Supported PSU Size | ATX |
| CPU Cooler Height | 6.22" / 158 mm |
| Maximum GPU Length | 14.96" / 380 mm |

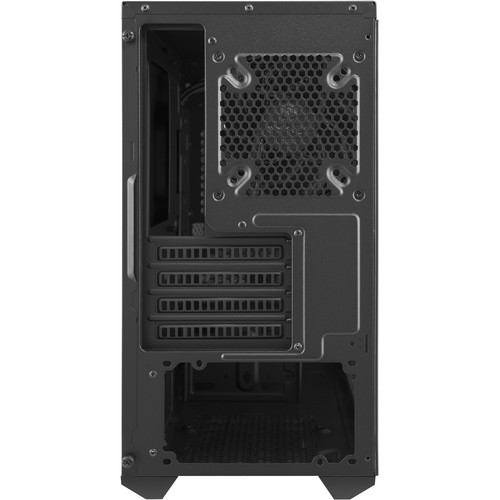

| Expansion Slots | 4 x Full Height |
| Internal Drive Bays | 2 x 3.5"<br><br />1 x 2.5"<br> |
| Warranty Length | Limited 2-Year Warranty |
Reviews (1)
1 review for Cooler Master MasterBox Lite 3.1 TG Mini Tower Case
Only logged in customers who have purchased this product may leave a review.
Related products
$349.30
$137.79
Computer Cases
iStarUSA D-230HN-T 2U Compact 3 x 3.5″ Bay Trayless Hotswap microATX Rackmount Chassis (Red)
$165.74
$63.63
Computer Cases
iStarUSA D Storm D-300SEA-BK 3U Compact Stylish Rackmount Chassis with SEA Bezel (Black)
$130.84
$34.99
$34.59
Coy Cassin
Verified Purchase
This was my first foray into a side window case; closed cases are getting hard, they’re either budget or very expensive. It looks nice, is a little cheap on the build quality, and it’s size limit is micro-atx. A surprise is the front panel appears solid but is translucent and see through when you use lighted fans.
