Description

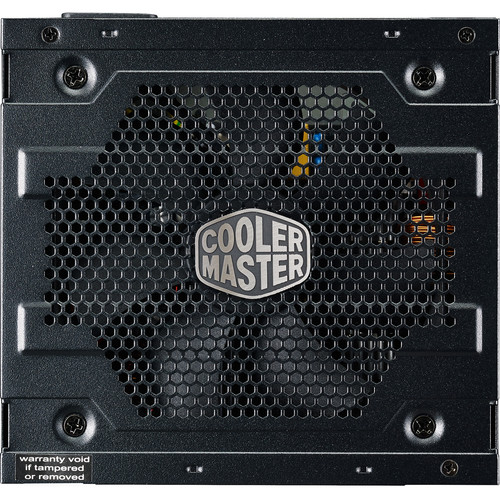

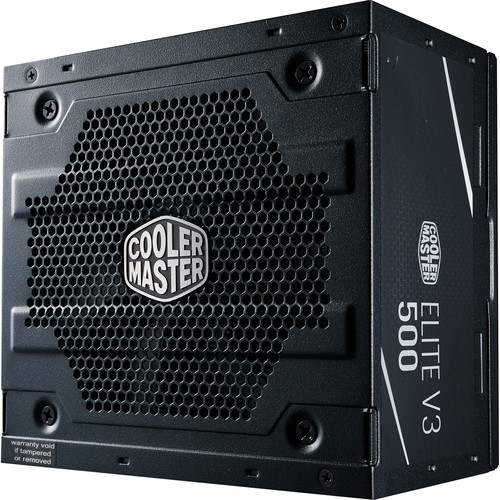

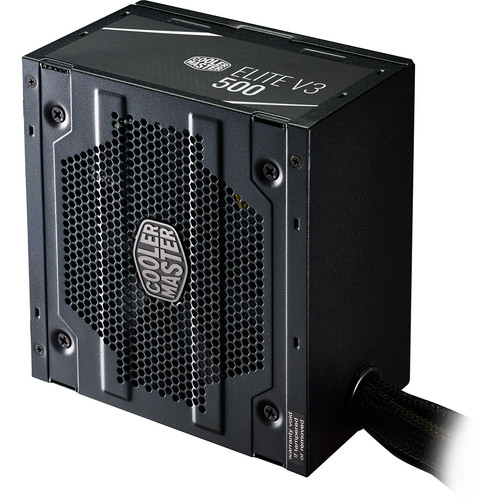

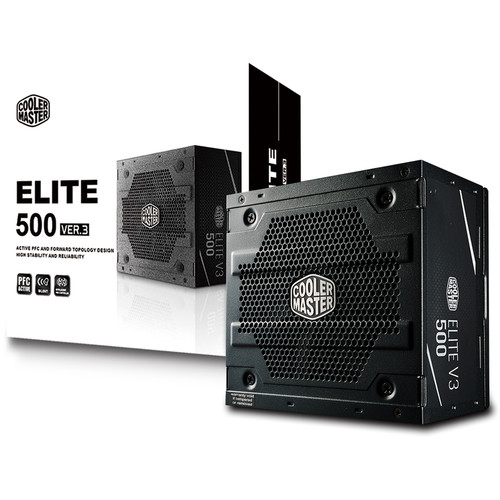

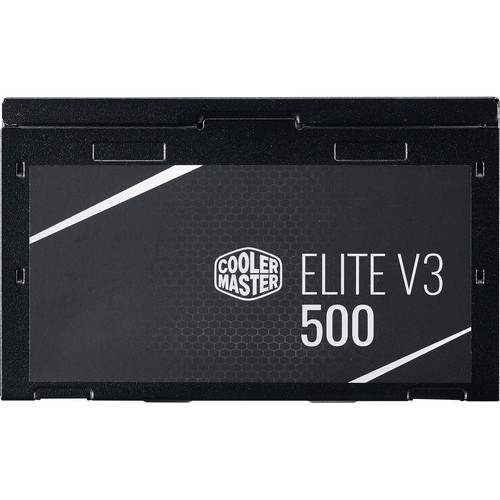

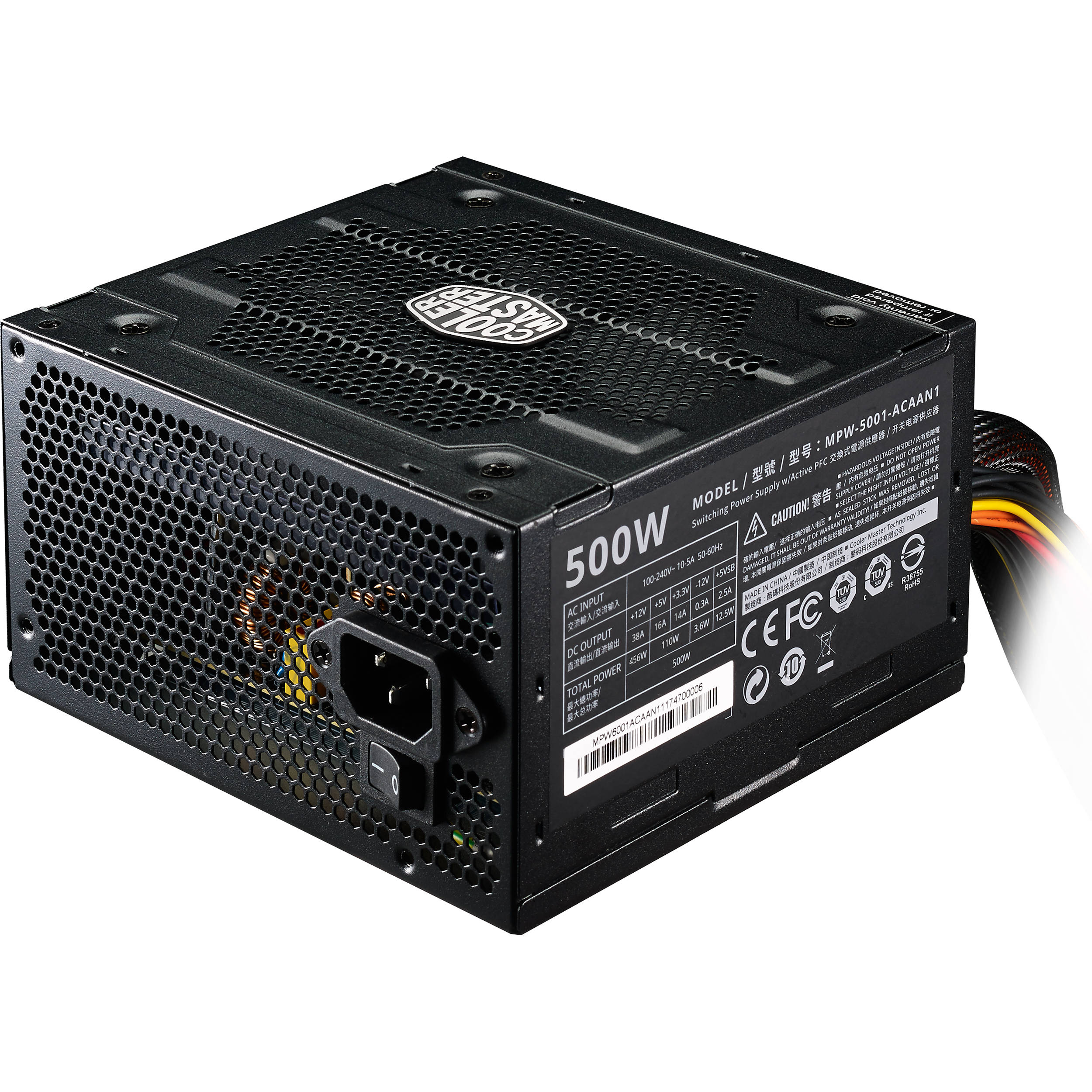

Cooler Master Elite V3 500W Power Supply for Reliable PC Performance
Elevate your PC build with the Cooler Master Elite V3 500W Power Supply, designed to deliver consistent and reliable power. This ATX 12V power supply is perfect for everyday computing needs, offering a robust 500W output over a single +12V rail to ensure stable performance.
Key Features:
- 500W Power Output: Provides ample power for standard PC builds.

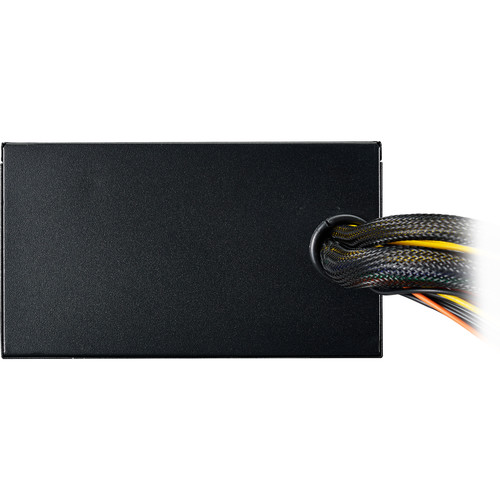

- Non-Modular Design: Features sleeved cables for a cleaner build and easier installation.
- Versatile Connectivity: Includes 2 PCIe connectors, 6 SATA connectors, 3 peripheral connectors, and 1 floppy connector to support multiple components.

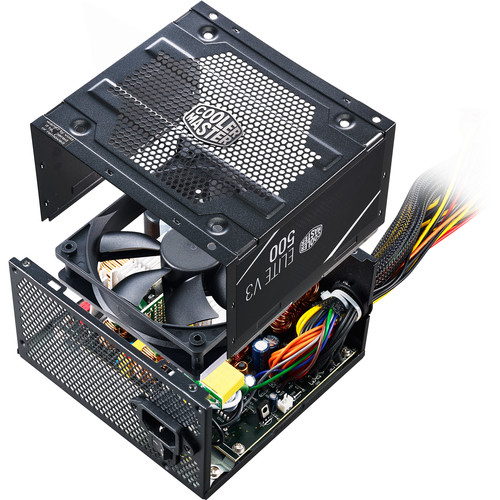

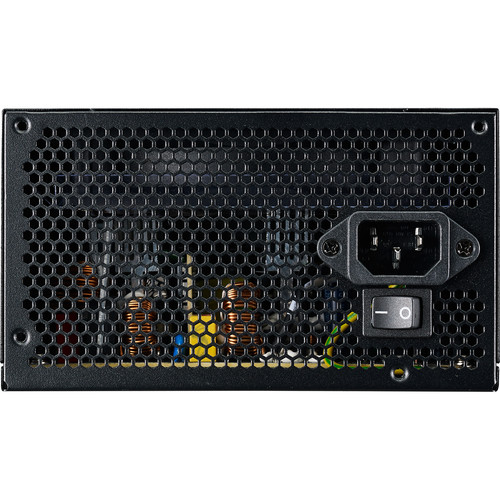

- Efficient Cooling: Equipped with a 120mm fan and intelligent fan controller for quiet and effective cooling.
- High Efficiency: Boasts a 75% efficiency rating, reducing energy waste and lowering electricity costs.
The Cooler Master Elite V3 500W Power Supply is an ideal choice for users seeking a dependable and efficient power solution. Its combination of reliable power delivery, versatile connectivity, and quiet operation makes it perfect for building a stable and high-performing PC.
With its robust design and efficient performance, the Elite V3 500W PSU ensures your system runs smoothly, whether you’re working, gaming, or multitasking. Trust Cooler Master to power your PC with quality and reliability.
Additional information
| Weight | 3.85 lbs |
|---|---|
| Dimensions | 8.75 × 7.75 × 3.8 in |
| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />2 x 6+2-Pin PCIe<br />6 x 15-Pin SATA<br />3 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |
| Max Power for -12 V | 3.6 W |
| Certifications | BSMI, CE, FCC, TUV, as per Manufacturer |
| Protection | Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection |
| Compliance | ATX 12 V v2.31 |
| Form Factor | ATX |
| Operating Temperature | 50 to 104°F / 10 to 40°C |
| Bearing Type | Sleeve |
| Fan Size | 120 mm |
| Power-Good Signal | 100 to 500 ms |
| Hold up Time | 10 ms at 100% Load |
| Efficiency | 75% |
| Active Power Factor Correction | Yes |
| Efficiency Rating | None |

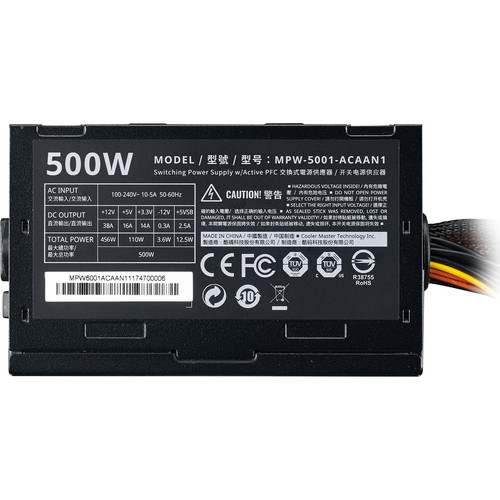

| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 to 5 A |
| Max Load for +5 Vsb | 2.5 A |
| Cable Design | Sleeved |
| Max Power for +5 Vsb | 12.5 W |
| Max Load for +5 V | 16 A |
| Max Load for +3.3 V | 14 A |
| Combined Power for +3.3/+5 V | 110 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 456 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 500 W |
| EPS Connector Distances | 21.7" / 550 mm |
| ATX Connector Distance | 19.7" / 500 mm |
| Floppy Connector Distances | 34.3" / 870 mm |
| Peripheral Connector Distances | 34.3" / 870 mm |
| SATA Connector Distances | 29.5" / 750 mm |
| PCIe Connector Distances | 25.6" / 650 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
