Description

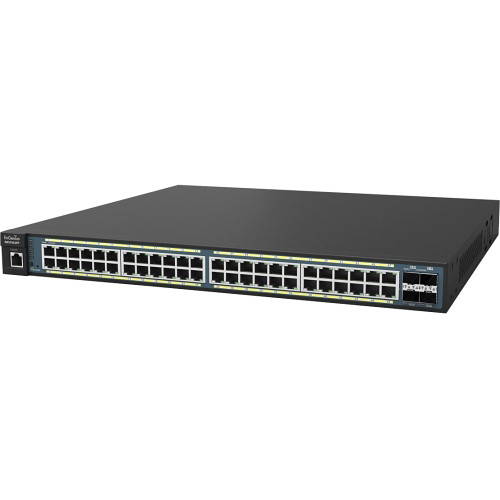

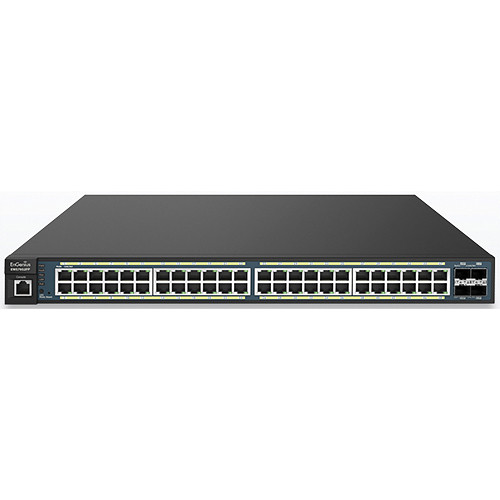

The Neutron Series 740W 48-Port Gigabit PoE+ Wireless Management Switch from EnGenius is a Neutron Series full power 48-port Gigabit switch with four SFP ports for fiber uplinks and can supply up to 30W per port for a total PoE budget of 740W. Through its browser based interface, it can manage and monitor up to 50 Neutron Series Access Points.
Once a Neutron Series Access Point has been connected to a Neutron Series switch, it immediately becomes discoverable on the network through the switch’s wireless management GUI (Graphical User Interface). The IT manager or network administrator then has the option to include that AP in the network and configure it accordingly.
Additional information
| Weight | 13.04 lbs |
|---|---|
| Dimensions | 21.4 × 16.8 × 4 in |
| Standard | Switching Capacity: 104 Gb/s<br> Forwarding Mode: Store and forward <br> SDRAM: 256MB <br> Flash Memory: 32 MB <br> Port Functions: <br> 48 x 10/100/1000 Mb/s Ports in the front panel<br> 4 x 100/1000 Mb/s SFP slots<br> 1 x RJ-45 Console port<br> PoE capability<br> PoE standard: Port 1 to 48 Support IEEE 802.3at/af<br> IEEE 802.3at/af PoE Capable Ports: 48 ports can output up to 30 W<br> Power Budget: 740 W |
| LED Indicators | 1 x Power <br> 1 x Fault <br> 1 x LAN mode <br> 1 x PoE max <br> 1 x PoE mode<br> Copper Ports: LAN/PoE mode, link/act<br> SFP Ports: Speed, link/act |
| Wireless Management Features | Manages up to 50 Neutron Series APs<br> Access point auto discovery and provisioning <br> Access point auto IP assignment <br> Access point cluster management <br> Remote access point rebooting<br> Access point device name editing <br> Access point radio settings<br> Band steering <br> Traffic shaping<br> Fast handover <br> Fast roaming <br> Access point client limiting <br> Mesh network* <br> Wireless security (WEP, WPA/WPA2 Enterprise, WPA/WPA2 PSK) <br> VLANs for access point-multiple SSIDs <br> Guest network <br> Access Point status monitoring <br> Wireless client monitoring <br> Wireless traffic and usage statistics <br> Real-time throughput monitoring <br> Visual topology view <br> Floor plan view <br> Map view <br> Secure control messaging <br> SSL certificate <br> Local MAC address database <br> Remote MAC Address Database (RADIUS) <br> Unified configuration import/export <br> Bulk firmware upgrade capability <br> Intelligent diagnostics |
| L2 Features | Spanning Tree Protocol: <br> 802.1D Spanning Tree (STP)<br> 802.1w Rapid Spanning Tree (RSTP)<br> 802.1s Multiple Spanning Tree (MSTP)<br><br> Queue:<br> CoS based on 802.1p priority<br> CoS based on physical port<br> CoS based on TOS<br> CoS based on DSCP<br><br> MIB Support:<br> RFC1213<br> RFC1493<br> RFC1757<br> RFC2674<br><br> 802.3ad Link aggregation<br> Port mirroring <br> Port trunking<br> IGMP snooping v1/v2/v3 <br> IGMP fast leave <br> VLAN group <br> Voice VLAN <br> MLD snooping<br> 802.1X port-based access control <br> 802.1X guest VLAN <br> Port security <br> Storm control <br> Port isolation <br> Attack prevention <br> Access Control List (ACL)<br> PoE management<br> Power on/off per port<br> Power class configuration<br> Power feeding with priority<br> User defined power limit<br> SSH server <br> Telnet server <br> TFTP client <br> BootP/DHCP client <br> Web-based support <br> SNMP v1 support <br> SNMP v2c support <br> SNMP v3 support <br> TFTP upgrade <br> Command Line Interface (CLI) <br> SNTP <br> RMONv1 <br> Syslog<br> Cable diagnostic |
| Temperature | Operating: 32 to 122°F (0 to 40°C)<br> Storage: -40 to 158°F (-40 to 70 °C) |
| Humidity |
