Description

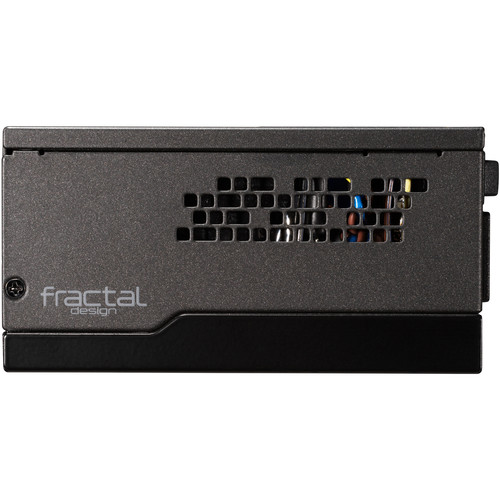

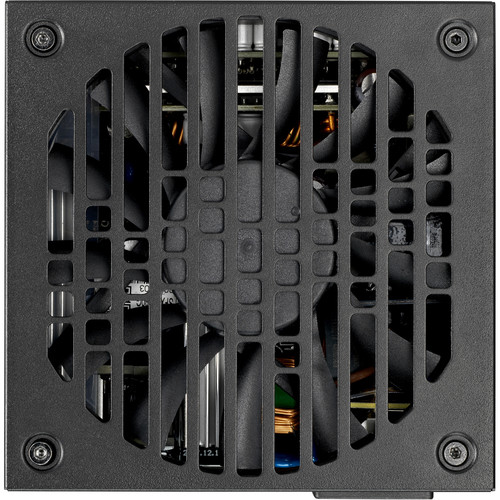

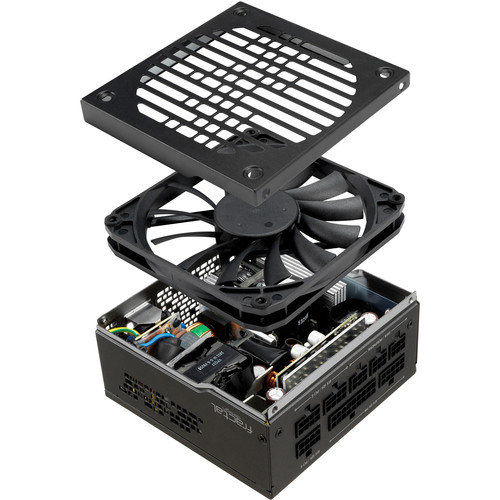

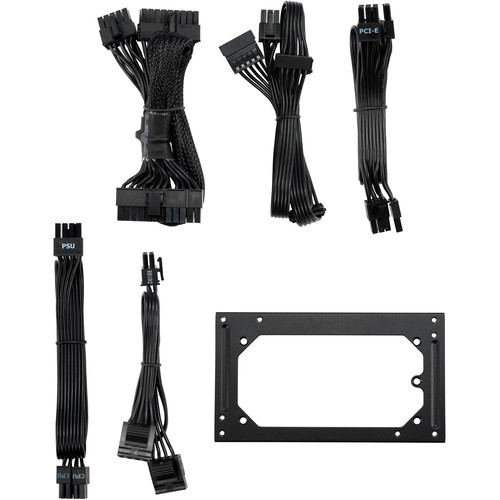

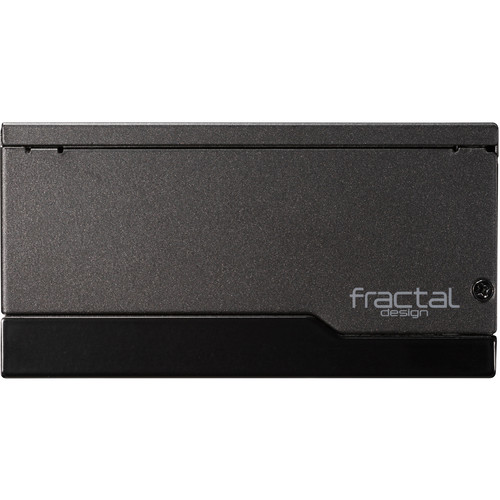

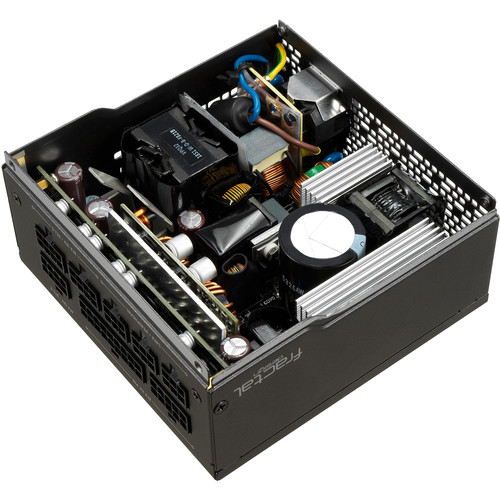

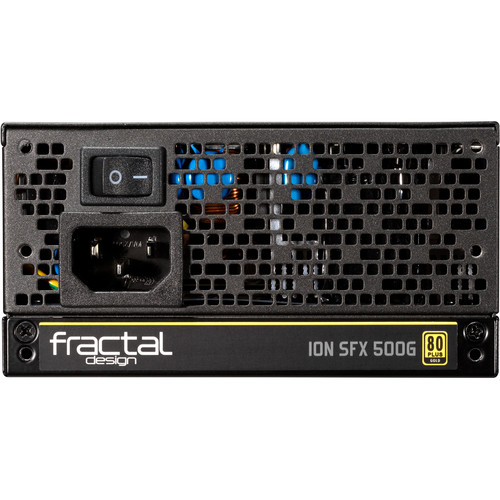

Keep components powered and connected with the Ion SFX 500W 80 PLUS Gold Modular Power Supply from Fractal Design. Providing 500W on a single 12V rail, this PSU sports a 120mm fan and features a semi-passive Zero RPM mode for totally silent operation. In addition to single motherboard and CPU connectors, this fully modular PSU also supplies two PCIe and four SATA connectors, plus two 4-pin connectors for peripherals. Following Intel SFX12V specifications, the Fractal Ion SFX Gold can fit an ATX mount using the included adapter mount. This power supply also comes with single motherboard, CPU, PCIe, SATA, and 4-Pin peripheral cables.
Additional information
| Weight | 4.26 lbs |
|---|---|
| Dimensions | 10.3 × 6.9 × 3.9 in |

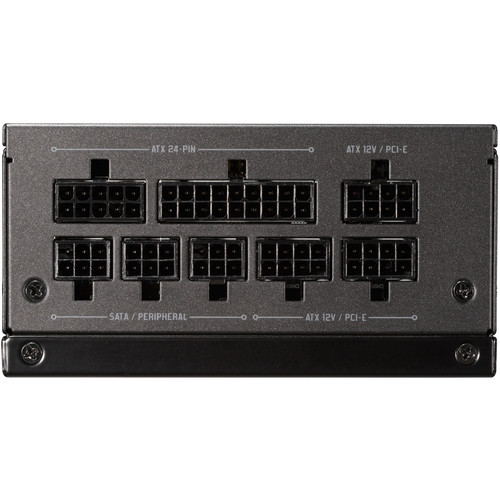

| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />2 x 6+2-Pin PCIe<br />4 x 15-Pin SATA<br />2 x 4-Pin Peripheral / Molex |
| Max Load for +5 V | 20 A |
| Certifications | BSMI, CB, CCC, CE, EAC, ErP Lot 6, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Form Factor | SFX-L |
| Operating Temperature | 104°F / 40°C |
| Fan Life Expectancy | 100, 000 Hours |
| Bearing Type | Fluid Dynamic Bearings (FDB) |
| Fan Size | 120 mm |
| Efficiency Rating | 80 PLUS Gold |

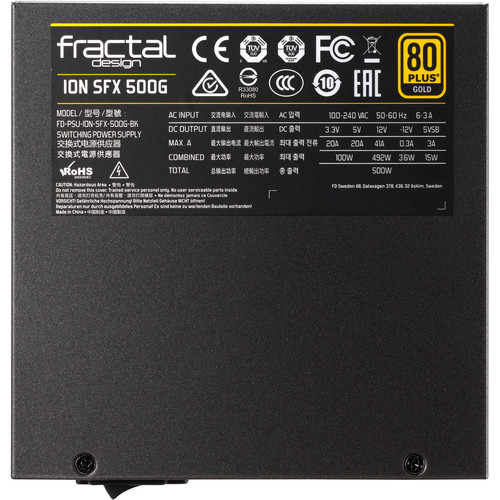

| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 6 to 3 A |
| Max Load for +5 Vsb | 3 A |
| Max Load for +3.3 V | 20 A |
| Cable Design | Flat, Modular |
| Combined Power for +3.3/+5 V | 100 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 500 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 500 W |
| EPS Connector Distances | 15.7" / 400 mm |
| ATX Connector Distance | 13.8" / 350 mm |
| Peripheral Connector Distances | 11.8" / 300 mm<br />7.9" / 200 mm |
| SATA Connector Distances | 11.8" / 300 mm<br />7.9" / 200 mm<br />7.9" / 200 mm<br />3.9" / 100 mm |
| PCIe Connector Distances | 15.8" / 400 mm<br />3.9" / 100 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
