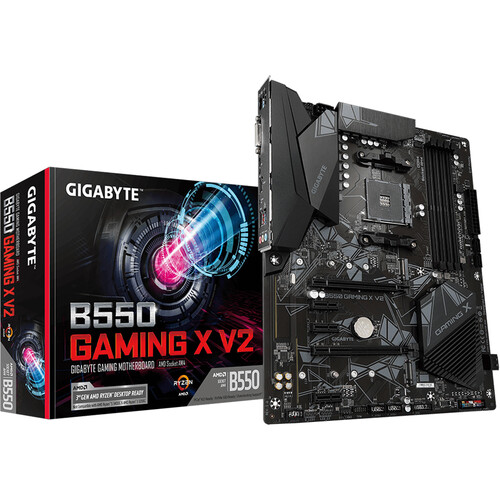

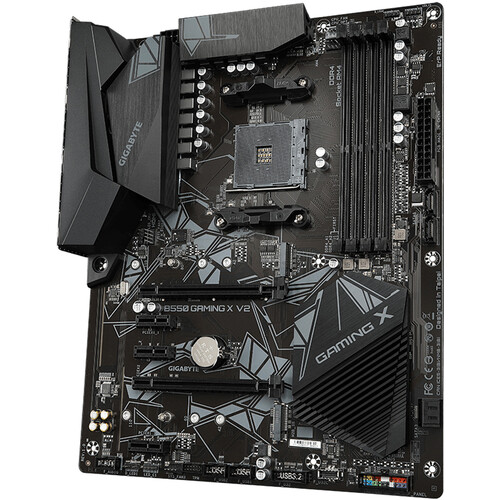

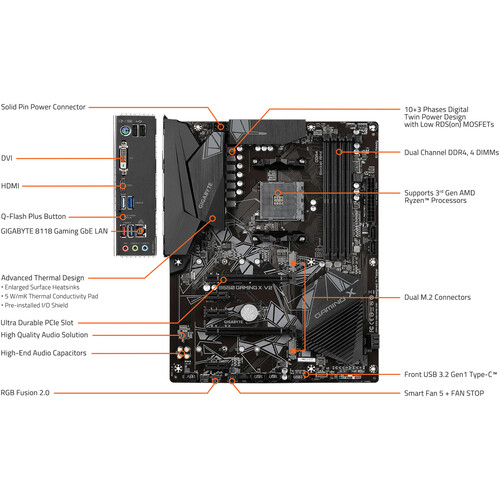

Get your gaming rig off on the right foot with the B550 Gaming X V2 AM4 ATX Motherboard from GIGABYTE. This board offers robust utility at a cost-effective price, ideal for gaming enthusiasts looking for basic connectivity and functionality without sacrificing performance. Built upon the B550 chipset and utilizing an AM4 socket, you have a wide range of Ryzen brand processors to choose from. Install up to 128GB of DDR4 RAM with speeds up to 4400 (O.C.) MHz for enhanced multitasking capabilities. Four SATA III and two M.2 connections allow you to install a wide range of storage devices, suitable for your virtual library.
Equip your rig with various graphics and utility cards with a wide range of PCIe connections, including one PCIe 4.0 x16, one PCIe 3.0 x16, and three PCIe 3.0 x1 slots. An array of USB 3.2 Gen 1 and Gen 2 ports and headers allow you to connect various peripherals such as keyboards, mice, and controllers. USB 2.0 ports are also present for low-resource demanding accessories. Additionally, you have a Gigabit Ethernet port allowing you to connect to a wired network, essential for online competitive gaming.
Additional information
| Weight | 3.32 lbs |
|---|---|
| Dimensions | 13.3 × 10.7 × 3.2 in |
| Chipset | AMD B550 |
| U.2 | None |
| Supported Operating Systems | Windows 10 (64-Bit) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| ROM | 256 Mb |
| Diagnostics | Clear CMOS |
| LED Header | 5 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 4-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />3 x 4-Pin System |
| Multi-GPU Support | None |
| Expansion Slots | 1 x PCIe 4.0 x16<br />1 x PCIe 3.0 x16 (x2 mode)<br />3 x PCIe 3.0 x1 |
| RAID Support | RAID 0, 1, 10 |
| Optane Memory Support | No |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x4, PCIe 3.0 x2)<br />1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4) |
| CPU Socket | AM4 |
| SATA | 4 x SATA III |
| ECC Support | Non-ECC, ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4400, 4600, 4733 MHz |
| Memory Slots | 4 x 288-Pin |
| Buttons | BIOS Flashback |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 |
| Audio | 1 x Speaker |

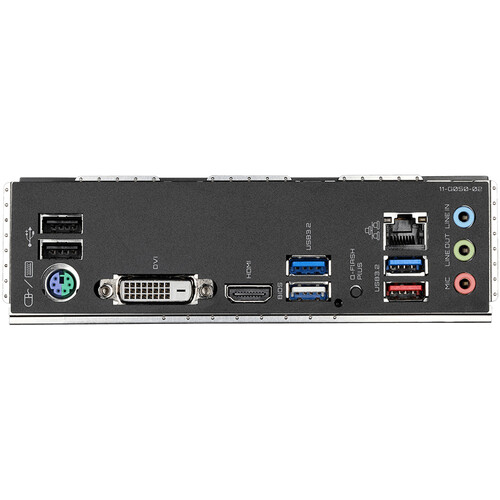

| Display | 1 x DVI-D <br />1 x HDMI 2.1 |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
