Description

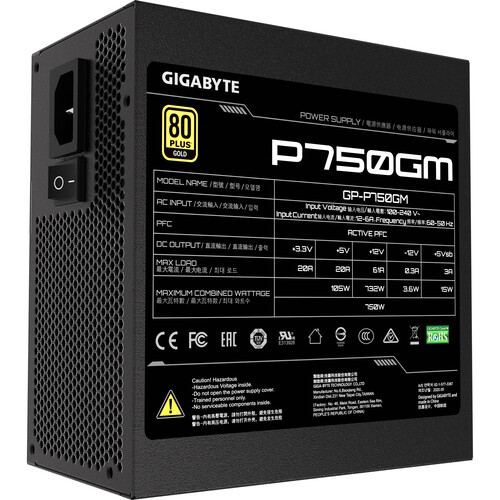

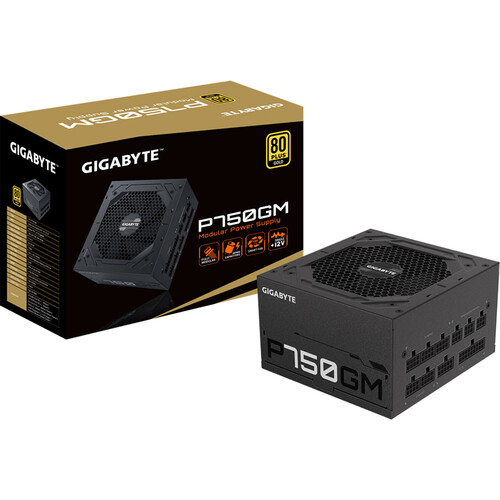

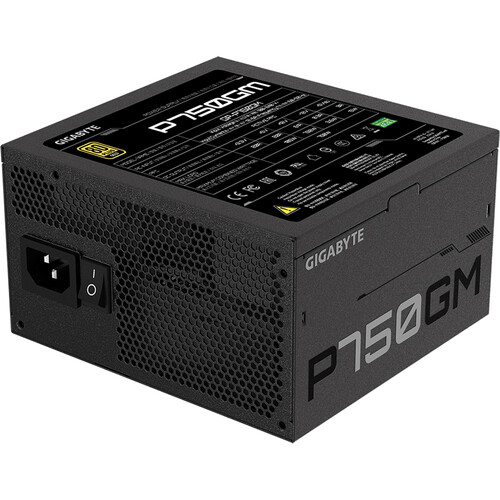

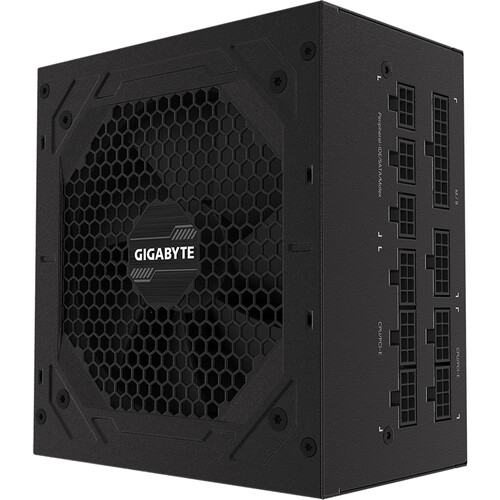

Take advantage of efficient power delivery with the GP-P750GM 750W 80 PLUS Gold Modular Power Supply from Gigabyte. Delivering 750W via a single +12V rail, this PSU follows the Intel ATX 12V v2.31 form factor. Flat, modular cables supply one motherboard, two CPU, four PCIe, eight SATA, and three 4-pin connectors, as well as a 4-pin floppy connector. Featuring a 120mm fan, the Gigabyte GP-P750GM boasts a lifespan of more than 100,000 hours.
Additional information
| Weight | 5.47 lbs |
|---|---|
| Dimensions | 10.1 × 8.2 × 4.7 in |

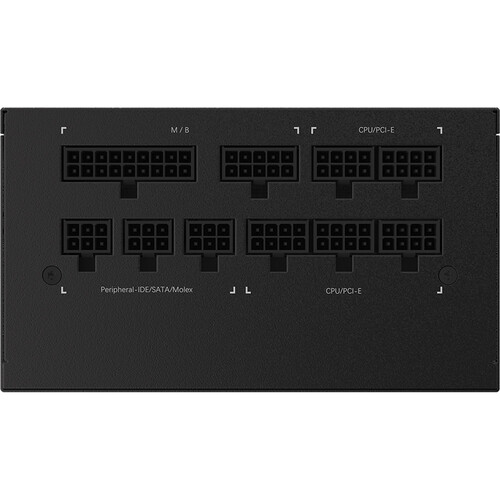

| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />2 x 4+4-Pin EPS CPU<br />4 x 6+2-Pin PCIe<br />8 x 15-Pin SATA<br />3 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |
| Max Load for +5 Vsb | 3 A |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.31 |
| Form Factor | ATX |
| Fan Life Expectancy | 35, 000 Hours |
| Bearing Type | Hydraulic |
| Fan Size | 120 mm |
| Power-Good Signal | 100 to 500 ms |
| Hold up Time | 16 ms |
| Efficiency | 90% at 50% Load |
| Active Power Factor Correction | Yes |
| Efficiency Rating | 80 PLUS Gold |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 12 to 6 A |
| Max Power for -12 V | 3.6 W |
| Max Power for +5 Vsb | 15 W |
| Cable Design | Flat, Modular |
| Max Load for +5 V | 20 A |
| Max Load for +3.3 V | 20 A |
| Combined Power for +3.3/+5 V | 105 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 732 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 750 W |
| EPS Connector Distances | 23.6" / 600 mm<br />23.6" / 600 mm |
| ATX Connector Distance | 24" / 610 mm |
| Floppy Connector Distances | 4.7" / 120 mm |
| Peripheral Connector Distances | 19.7" / 500 mm<br />4.7" / 120 mm<br />4.7" / 120 mm |
| SATA Connector Distances | 23.6" / 600 mm<br />5.9" / 150 mm<br />5.9" / 150 mm<br />5.9" / 150 mm<br />23.6" / 600 mm<br />5.9" / 150 mm<br />5.9" / 150 mm<br />5.9" / 150 mm |
| PCIe Connector Distances | 23.6" / 600 mm<br />5.9" / 150 mm<br />23.6" / 600 mm<br />5.9" / 150 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
Reviews (2)
2 reviews for Gigabyte GP-P750GM 750W 80 PLUS Gold Modular Power Supply
Only logged in customers who have purchased this product may leave a review.
Related products
Desktop Components
$175.00
Desktop Components
$107.99
Desktop Components
$44.80
Desktop Components
$194.99
Desktop Components
$201.87
Desktop Components
$232.49
Desktop Components
$157.49
Desktop Components
$466.46
Camren Moore
Verified Purchase
It’s is great but the connectors should be labeled also it took me 2 days to find the 6 plus 2 pin cable since the two sets of pins were so tightly connected so even when I found that cable I could barely get it to seperate since I have a GTX 1080.
Dakota Bechtelar
Verified Purchase
Do NOT Buy this power supply! They have been demonstrated to catch on Fire, explode, or arrive D.O.A.! The reason Newegg and other big retailers are selling these power supplies at such low prices is that they blowing up and catching on fire in huge numbers! Newegg was bundling them with GPU’s and Motherboards to clear out their inventory of garbage power supplies ! Gigabyte was finally forced to admit they have big problem on their hands and high failure rates but have not recalled them as of last week. Check out Gamer’s Nexus and Hardware Busters International – they both have great analysis on their You Tube channels about the incredibly high failure rate and tendency to catch on fire or blow-up and explode after tripping their protection circuits that normally would prevent such problems. These supplies can catch your whole computer on fire, destroy your CPU, GPU, Memory, Motherboard and other components, not to mention burn down your house and potentially kill you and your loved ones. Do the research yourself before you buy!
