Description

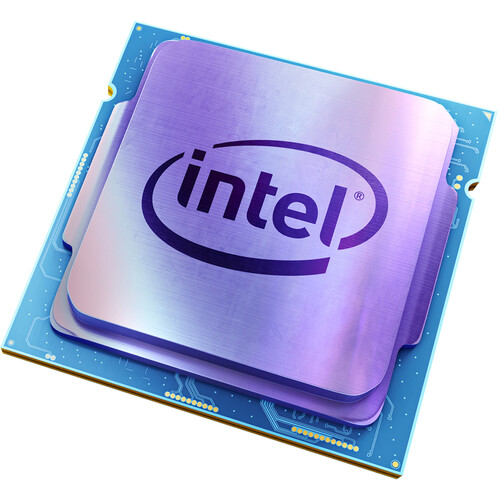

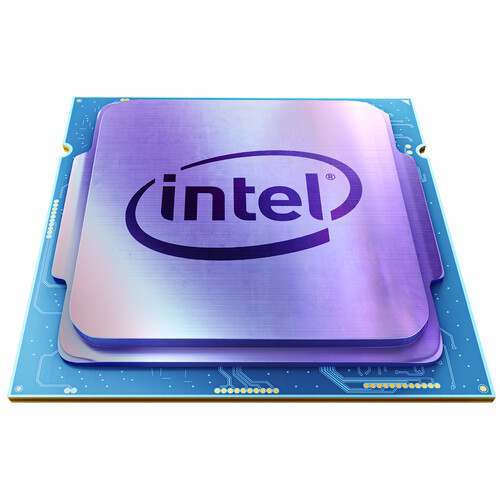

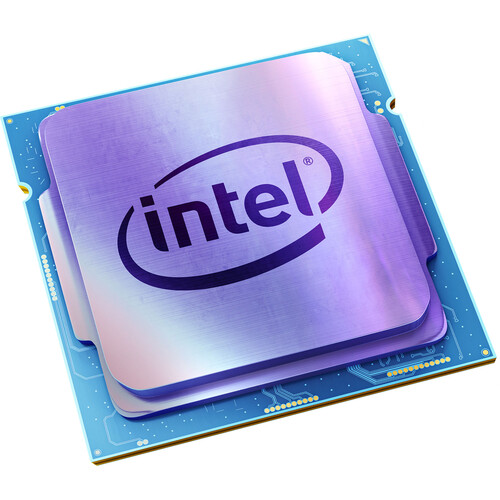

The Core i5-10400F 2.9 GHz Six-Core LGA 1200 Processor from Intel has a base clock speed of 2.9 GHz and comes with features such as Intel Optane Memory support, Intel Boot Guard, Intel VT-d virtualization technology for directed I/O, and Intel Hyper-Threading technology. With Intel Turbo Boost 2.0, the maximum turbo frequency this processor can achieve is 4.3 GHz. Additionally, this processor features 6 cores with 12 threads in an LGA 1200 socket, has 12MB of cache memory, and 16 PCIe 3.0 lanes. Having 6 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 12 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports 128GB of dual-channel 2666 MHz DDR4 RAM and utilizes 10th-generation technology.
Intel did not design this processor with an integrated graphics chipset, meaning that users will need to purchase a compatible and dedicated graphics card of their choice. A thermal solution is included and protection is provided by a limited 3-year warranty.
Additional information
| Weight | 0.62 lbs |
|---|---|
| Dimensions | 4.6 × 4.1 × 2.9 in |
| CPU Model | Intel Core i5-10400F |
| Thermal Design Power (TDP) | 65 W |
| Performance Technologies | Hyper-Threading, SpeedStep, Turbo Boost 2.0 |
| vPro Support | No |
| Optane Memory Support | Yes |
| DMI | DMI3 (8 GT/s) |
| Graphics Chipset | None |
| Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
| Instruction Set | 64-Bit |
| Extension | AVX 2.0, SSE 4.1/4.2 |
| AES Support | Yes |
| Thermal Monitoring Technologies | Yes |
| Maximum Temperature | 212°F / 100°C |
| Included Thermal Solution | PCG 2015C |
| Maximum Memory Bandwidth | 41.6 GB/s |
| CPU Socket | LGA 1200 |
| Channel Architecture | Dual Channel |
| ECC Memory | No |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2666 MHz |
| L3 Cache | 12 MB |
| Maximum Boost Speed | 4.3 GHz |
| Base Clock Speed | 2.9 GHz |
| Number of Threads | 12 |
| Number of Cores | 6 |
| Unlocked | No |
| Maximum Number of PCIe Lanes | 16 (Revision 3.0) |
| Maximum CPU Configuration | 1S |
| Manufacturing Process | 14 nm |
| Security Technologies | Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, OS Guard, Secure Key, Software Guard Extensions |
Reviews (2)
2 reviews for Intel Core i5-10400F 2.9 GHz Six-Core LGA 1200 Processor
Only logged in customers who have purchased this product may leave a review.
