Description

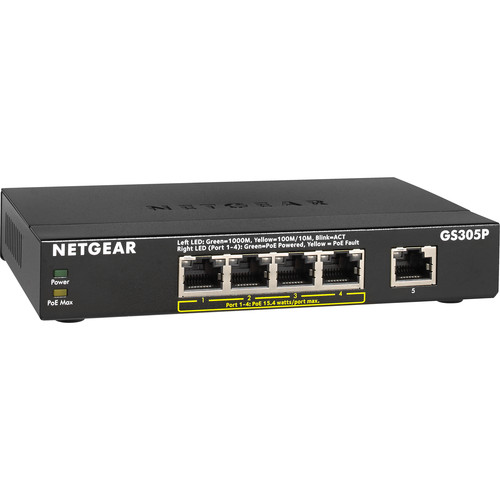

Quickly and easily expand your network to reach multiple Ethernet-enabled devices using the GS305P 5-Port Gigabit PoE-Compliant Unmanaged Switch from NETGEAR. This switch features five Gigabit Ethernet ports, four of which are PoE-compliant with a total power budget of 55W, offering power to devices such as IP cameras, access points, and other components. Setup is simple, as the GS305P features plug-and-play configuration, and with its durable metal housing, the switch can be installed virtually anywhere in your home or office.
Once installed, users benefit from a 10 Gb/s switching capacity, a 128KB memory buffer, 9216 byte jumbo frames, a 1.448 Mpps forwarding rate, and a 2K MAC address table size to ensure this switch operates smoothly, even under heavy use. In addition to enhanced performance, this NETGEAR switch is designed for efficiency, as it supports the 802.3az Energy Efficient Ethernet standard and short cable detection.
Additional information
| Weight | 2.31 lbs |
|---|---|
| Dimensions | 10.75 × 8.45 × 2.85 in |
| Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE<br />1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| PoE per Port | 15.4 W |
| Material of Construction | Metal |
| Mean Time Between Failures (MTBF) | 3, 222, 482 Hours |
| Cooling System | Passive |
| Operating Altitude | 10, 000' / 3048 m |
| Storage Humidity | 95% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 90% |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Power Supply Type | Internal |
| PoE Power Budget | 55 W |
| Supported Protocols | Auto-MDIX/MDI |

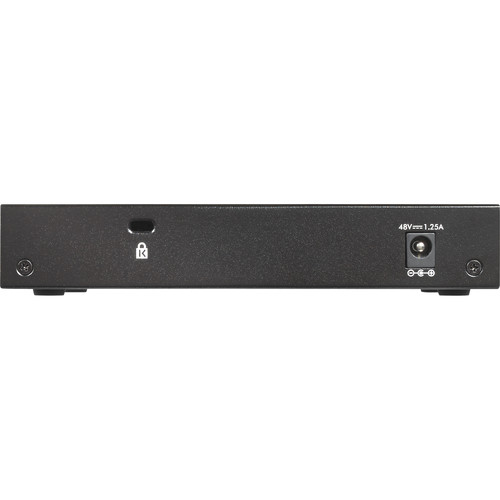

| DC Input Power | VDC at 1.25 A |
| Power Draw | 60.00 W (Max)<br />0.96 W (Standby) |
| Packet Buffer | 128 kB |
| Switching Bandwidth | 10 Gb/s (Non-Blocking) |
| Forwarding Rate | 1.44 Mpps |
| Supported IEEE Standards | 802.1p, 802.3, 802.3ab, 802.3az, 802.3i, 802.3u, 802.3x |
| MAC Address Table Size | 2K |
| Jumbo Frames Support | 9216 Bytes |
| Queuing | Weighted Round Robin (WRR) |
| Indicator Lights | Link/Activity/Speed, PoE, Power |
Reviews (8)
8 reviews for Netgear GS305P 5-Port Gigabit PoE-Compliant Unmanaged Switch
Only logged in customers who have purchased this product may leave a review.
Related products
Wired Networking
$8.44
$343.85
Wired Networking
$17.59
Wired Networking
$79.99
$271.49
$2.21
Wired Networking
Synology E25G21-F2 Dual 25G Ethernet SFP+ Port PCIe 3.0 Adapter
$240.49
Wired Networking
Cisco SG250-50 250 Series 50-Port Managed Gigabit Ethernet Switch
$631.14
Gloria O’Kon
Verified Purchase
Good well built device that does its job as expected. Good value for the price.
Jessy Langosh
Verified Purchase
perfect
Melba Balistreri
Verified Purchase
Purchased this Netgear switch to use on a long run of Cat5e cable. By placing the switch halfway in a cable run of nearly 400 feet, it retransmits the internet signal and made the live streaming possible. At the point of origin, the measured bandwidth was 125Mbps; at the other end, the bandwidth was 105Mbps. Some loss is expeceted but more than enough bandwidth to do live streaming. A nice inexpensive way to solve a problem for the client!
Adela Gutmann
Verified Purchase
We bought this to use IP phones for a remote facility. Extremely easy to install. The phones used PoE strictly and this unit supported the power with no issues. It’s small, compact, and sturdy. The connection speed is VERY fast when running speed tests to the server. For the price, the reliability, and Netgear guarantees on this, it’s 100% worth it.
Ramiro Schumm
Verified Purchase
Got this switch to power access points to get rid of power injectors and it works great. No Problems.
Carmela Cruickshank
Verified Purchase
As expected
Stanley Kutch
Verified Purchase
This seemed perfect as a small unmanaged switch to connect and power security cameras. I expect it will stay on 24/7 and be very reliable.
Hilbert Kunze
Verified Purchase
Love the device and its compact powerful size. Unfortunately, the power supply that comes with it is the same wide width as the device itself. I used this in a drybox on a telephone pole. It was a tight fit for sure!! Also, note that the lan input port is not POE. This would be awesome if it was. When using wireless bridges, the POE on this port would save more space as you would not need a POE injector. Great product, working just fine, just a couple of personal improvements would make it a 5 star for me.
