Description

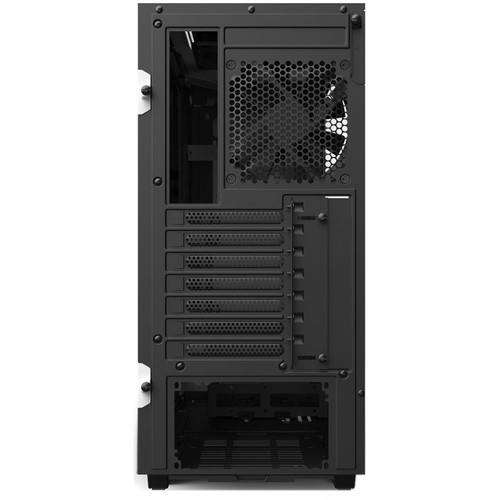

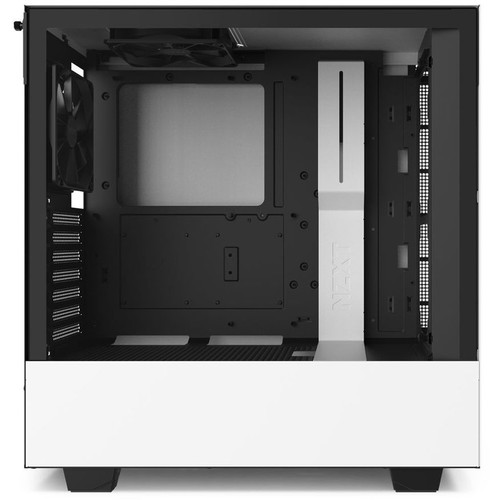

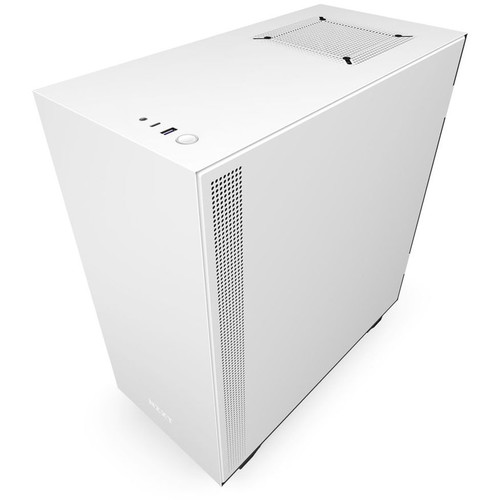

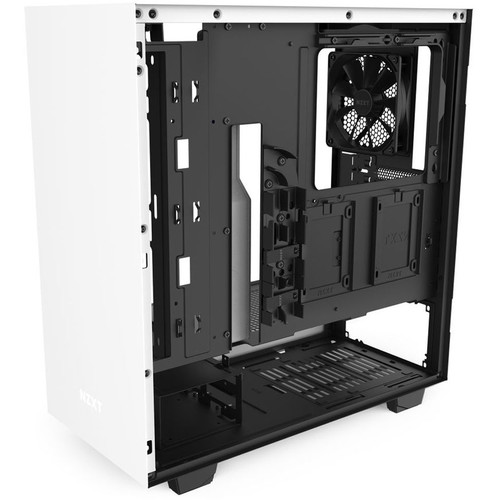

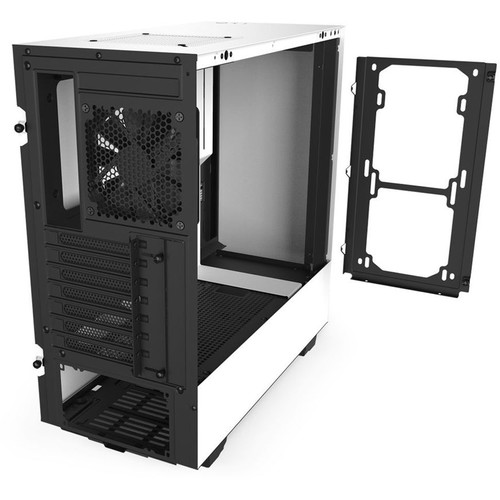

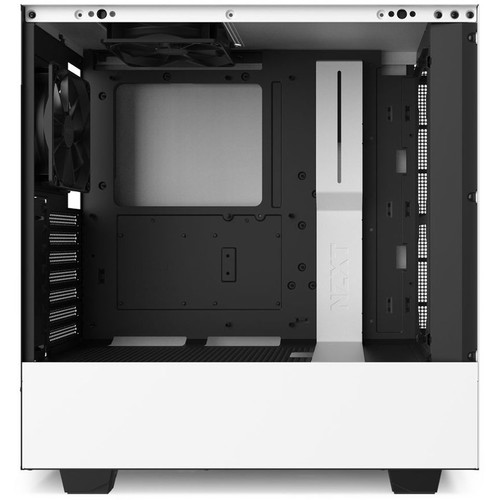

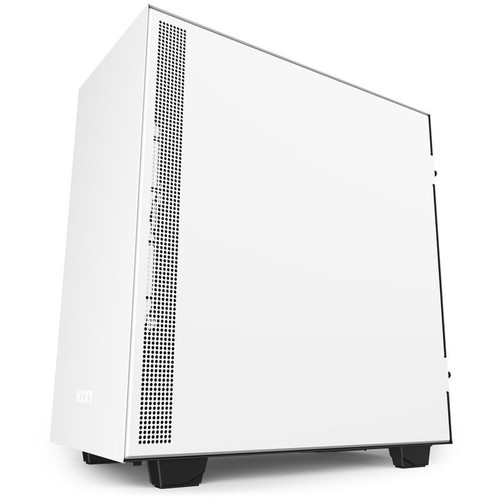

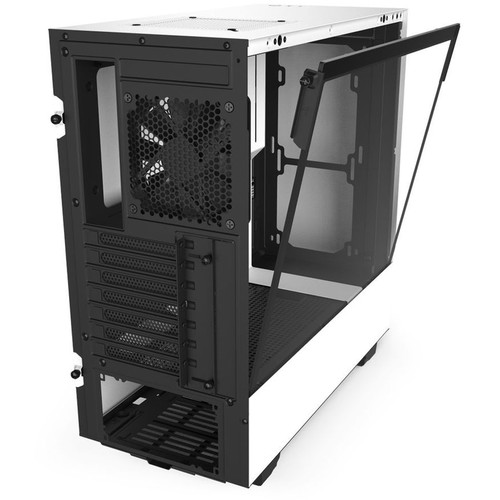

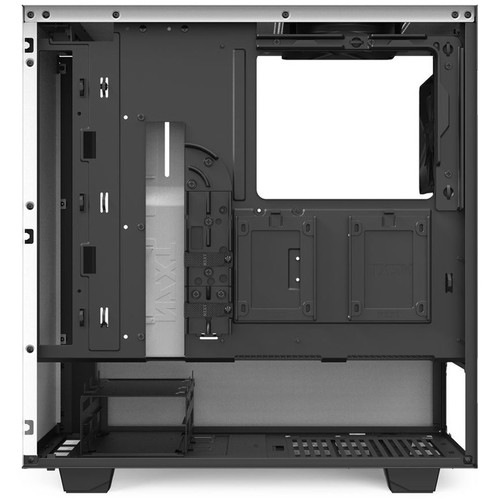

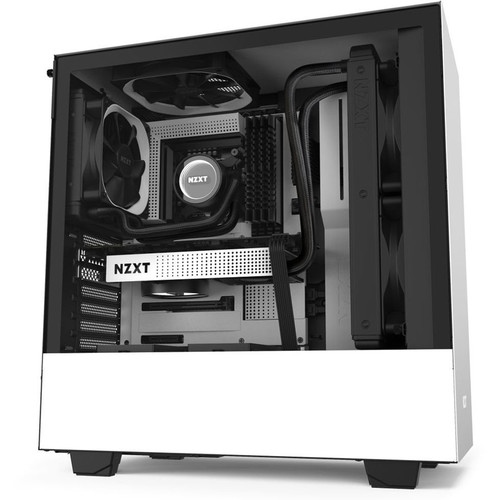

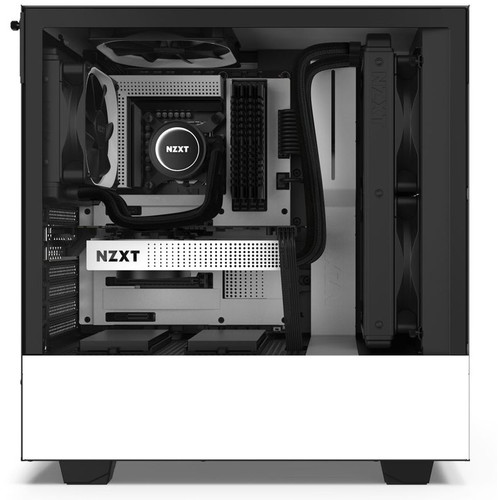

The NZXT H510 Mid-Tower Case features a sleek and minimalistic design with plenty of helpful additions for a clean and easy build. Aside from its signature cable management bar, it also has a PSU shroud and a built-in cable management system at the back. It supports up to an ATX motherboard, three 2.5″ or 3.5″ drives, and three dual-slot graphics cards. Whether you choose to liquid cool or not, the H510 supports up to two 120/140 mm fans at the front, a 120/140 mm fan at the rear, and another 120/140 mm fan at the top. Thanks to its tempered-glass side panel, you can show off your hardware along with any custom LED lighting.
Additional information
| Weight | 18.75 lbs |
|---|---|
| Dimensions | 19.75 × 19.25 × 11 in |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Maximum Radiator Size (Rear) | 120 mm |
| Dimensions (W x H x D) | 8.27 x 18.11 x 16.85" / 210 x 460 x 428 mm |
| Cable Management Space | 0.91" / 23 mm |
| Built-In Lighting | No |
| Certifications | CE, FCC, as per Manufacturer |
| Material | Steel, Tempered Glass |
| Windowed Panel | Yes |
| Display Connections | None |
| Audio Connections | 1 x 3.5 mm Input/Output |

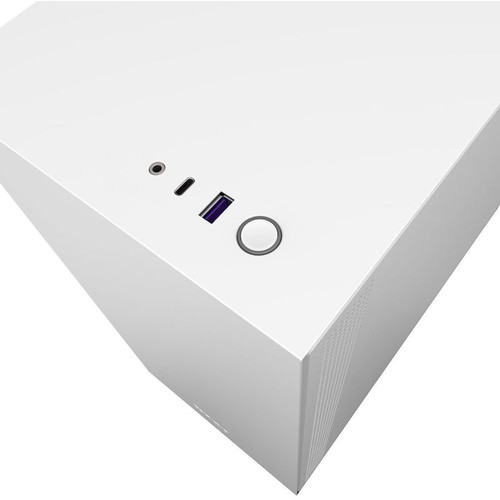

| Connections | 1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2)<br />1 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |

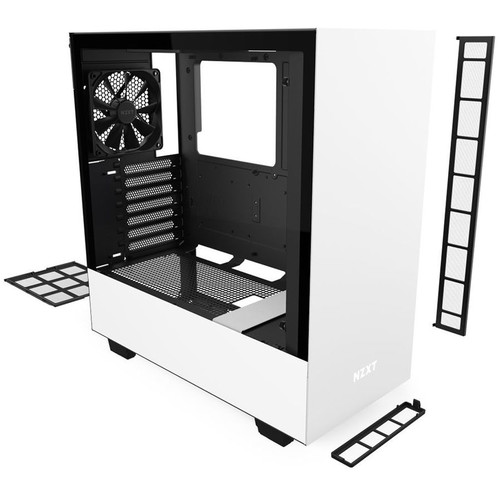

| Filter Locations | Bottom, Front |
| Fan Controller Included | No |
| Noise Level | 28 dBA |
| Fan Mounting (Internal) | None |
| Maximum Radiator Size (Front) | 280 mm |
| External Drive Bays | None |
| Fans Included (Top) | 1 x 120 mm (1200 Variable rpm) |
| Fans Included (Rear) | 1 x 120 mm (1200 Variable rpm) |
| Fan Mounting (Bottom) | None |
| Fan Mounting (Top) | 1 x 120 mm<br>Or<br />1 x 140 mm<br> |
| Fan Mounting (Side) | None |
| Fan Mounting (Rear) | 1 x 120 mm<br>Or<br />1 x 140 mm<br> |
| Fan Mounting (Front) | 2 x 120 mm<br>Or<br />2 x 140 mm<br> |
| PSU Mounting Location | Bottom |
| Supported PSU Size | ATX |
| CPU Cooler Height | 6.50" / 165 mm |
| Maximum GPU Length | 15.00" / 381 mm |
| Expansion Slots | 7 x Full Height |
| Additional Drive Mounting | 2 x 2.5" (Bottom)<br><br />2 x 2.5" (Motherboard Tray)<br> |
| Internal Drive Bays | 3 x 3.5"<br><br />3 x 2.5"<br> |
| Warranty Length | Limited 2-Year Warranty |
Reviews (8)
8 reviews for NZXT H510 Mid-Tower Case (Matte White)
Only logged in customers who have purchased this product may leave a review.
Related products
$188.99
$34.99
$139.30
Computer Cases
$125.99
Computer Cases
$44.09
$116.99
Computer Cases
$58.38
Maud Turner
Verified Purchase
I decided to save a few bucks and purchased the NZXT H510 case for my third computer build. What a mistake. Cable routing is tight and there are not as many pass throughs for cabling as I had hoped. The instructions required a magnifying glass to read and weren’t very clear to begin with. I had purchased Corsair cases prior to this build and they made building a computer from the ground up fun, easy and quick. The only thing I liked about this case was it’s clean, minimalistic look.
Trey Keeling
Verified Purchase
This is a great functional case. I like basic, minimalistic cases that don’t break the bank – this one fit the bill. It has front panel USB-C and USB3.1/2. It comes with two fans in it, preinstalled. Temps are great. The glass looks nice. Cable management functionality is there and effective. Only gripe I would have on it, although I don’t use it, is that the 3.5mm jack on the front of the case is extremely tight and when inserting or removing the splitter it feels like I’m going to break something. It is a single plug for the mic/headphones and the case comes with a splitter so that you can connect each device individually, should that be the type of headset you use.
Vidal Homenick
Verified Purchase
I was looking for case that looked low key, would be easy to build in and have plenty of fan mounts. NZXT definitely delivered and at a reasonable price. The front fan shroud that popped in and out was helpful when installing intake fans. The ability to place a fan on the screen next to the PSU was nice as well. Cable management was easy enough and looks great. The case now holds a [email protected] all core and a gtx 1660ti@ 2.05Ghz Core and 1500 Mem OC. CPU Temps in games are around 55-65C on the CPU and 58C GPU max temp. While the CPU cooler is a Be Quiet Dark Rock Pro 4 and very efficient, one can only assume good airflow design is keeping the heat out. Good thermal paste and coolers can only go so far! Good work NZXT! Thanks B&H!
Daron Boyle
Verified Purchase
Love it!!
Tremayne Donnelly
Verified Purchase
This is my second time building with this case. It’s an excellent case and for a full size case, this should be top of the list. Great cable management and space for many ssd drives and fans. No negatives in my opinion.
Courtney Rempel
Verified Purchase
Has everything I needed for my build and hides the cables well.
Geovanni Luettgen
Verified Purchase
this case looks amazing…the build quality is second to none, packaging was secure, great deal and value for your buck…NZXT all the way
Domingo Abbott
Verified Purchase
Excellent
