Description

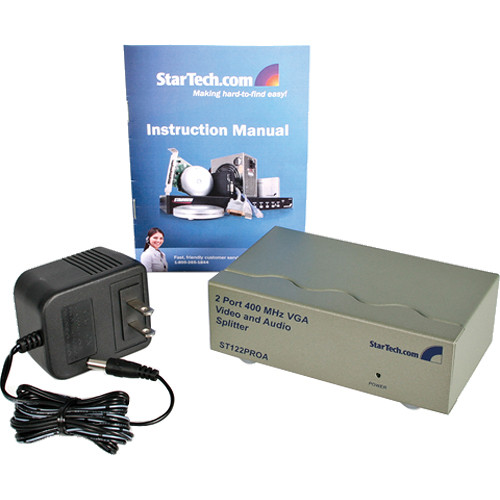

The 400MHz, gray 2-Port High Resolution VGA Video Splitter with Audio from StarTech offers a practical solution for high-resolution multi-screen presentations that allow you to split and carry a VGA video signal as well as the corresponding audio to be broadcasted from a computer to up to two sets of VGA monitors and speakers simultaneously.
This is an ideal solution for use in classrooms, tradeshows, in-store displays or any application where high-quality video and audio is required. It supports displays with up to 400 MHz of video bandwidth and high-resolution applications up to 2048 x 1536.
The high-resolution VGA splitter features a built-in booster circuit that allows monitors to be located up to 210′(64m) away from the host system and ensures high quality VGA video even at longer distances. It is designed for simplicity and convenience that offers easy plug and play installation. The VGA splitter is a completely hardware-based solution and requires no software operation, thus saving both time and hassle.
Additional information
| Weight | 1.57 lbs |
|---|---|
| Dimensions | 9.7 × 6.15 × 2.7 in |
| Ports | 2 |
| Audio | Yes |

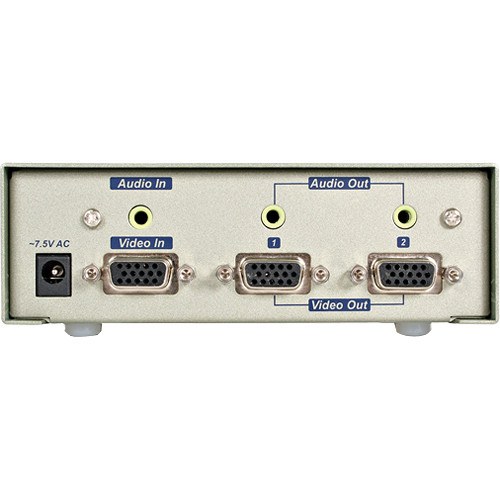

| Connector 1 | 1 x 0.1"(3.5 mm) mini-jack (3 position) female<br>1 x VGA (15-pin; high-density D-Sub) female |
| Connector 2 | 2 x 0.1"(3.5 mm) mini-jack (3 position) female <br>2 x VGA (15-pin; high-density D-Sub) female |
| Maximum Resolution Analog | 2048 x1536 at 60 Hz |
| Bandwidth | 400 MHz |
| Power Adapter | Yes (included) |
| Output Voltage | 12 VDC |
| Input Current | 0.6 A |
| Certifications | CE, FCC, RoHS |
| Dimensions (L x W x H) | 5.1 x 3 x 2.8" (129.5 x 76.2 x 71.1 mm) |
