Description

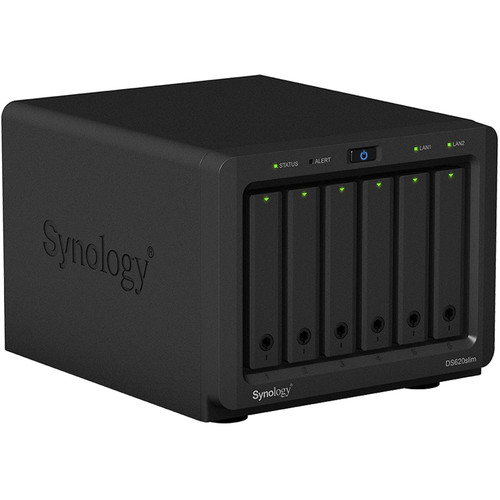

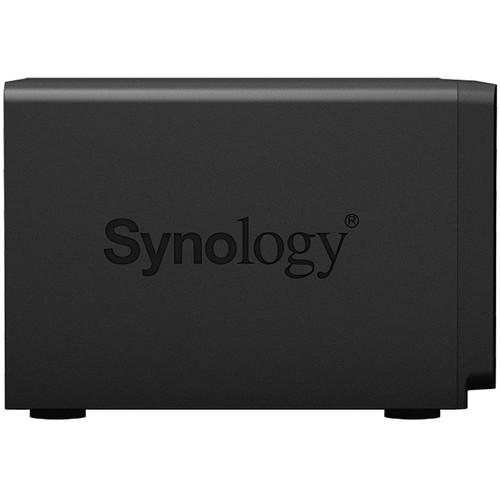

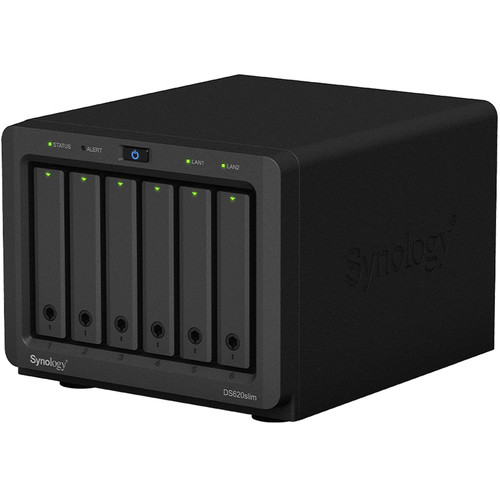

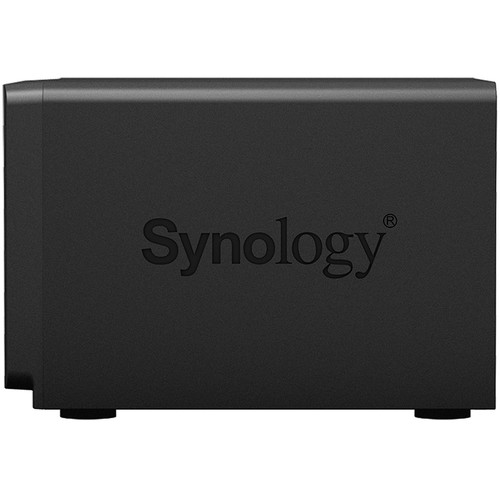

Built to blend into modern workplaces or apartments, the DiskStation DS620slim 6-Bay NAS Enclosure from Synology is an all-around file management solution that fulfills professionals’ needs of advanced data protection and high-quality media streaming. It supports near-instantaneous snapshot technology and real-time dual-channel H.264/H.265 4K video transcoding and is equipped with six 2.5″ SATA HDD/SSD drive bays that support RAID 0, 1, 5, 6, 10, Basic, and Synology Hybrid RAID. Each RAID mode provides performance gains, data redundancy, or a combination of both. For those who do not need the benefits of a RAID, JBOD is also available.
The DS620slim runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 2.0 GHz Intel Celeron J3355 Dual-Core and its 2GB of DDR3L RAM allows frequently-used files and applications to be quickly accessed. The NAS is capable of achieving sequential read speeds of up to 226 MB/s and write speeds of up to 198 MB/s. Also featured are two USB 3.0/3.1 Gen 1 Type-A ports which allows it to be connected to your Windows or Mac system, and network connectivity is achieved via the dual integrated Gigabit Ethernet ports that support failover and link aggregation, while also allowing your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android applications.
The DS620slim is engineered to be energy efficient. Not only does it offer an 80 x 80mm fan to help keep the system running cool at all times, its noise dampening design of 20.5 dBA makes for quiet operations. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses.
The DiskStation DS620slim 6-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes a 250W AC power adapter, a power cable, and two RJ45 LAN cables. It is protected by a limited 2-year warranty.
Additional information
| Weight | 4.77 lbs |
|---|---|
| Dimensions | 9.3 × 8.7 × 7.4 in |
| CPU | 2 GHz Intel Celeron J3355 Dual-Core (Maximum Boost: 2.5 GHz) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Max Cameras Supported | 25 |
| Supported File Systems | Internal: BTRFS, EXT4<br />External: BTRFS, EXT3, EXT4, FAT, HFS+, NTFS, exFAT |
| OS Compatibility | Windows<br />macOS |
| Supported Browsers | Chrome, Edge, Firefox, Internet Explorer, Safari |
| Supported Languages | Brazilian Portuguese<br>Czech<br>Danish<br>Dutch<br>English<br>French<br>German<br>Hungarian<br>Italian<br>Japanese<br>Korean<br>Norwegian<br>Polish<br>Portuguese<br>Russian<br>Simplified Chinese<br>Spanish<br>Swedish<br>Thai<br>Traditional Chinese<br>Turkish |
| Encryption | AES-NI |
| Security Features | Kensington Security Slot |
| VPN Server Connections | 30 |
| Power Source | AC Adapter |
| Max User Accounts | 2048 |
| Power Consumption | 34.88 W (Typical)<br />7.59 W (Standby) |
| PSU Wattage | 1 x 65 W |
| Operating Temperature | 40 to 104°F / 4 to 40°C |
| Operating Humidity | 5 to 95% |
| Storage Temperature | -5 to 140°F / -20 to 60°C |
| Certifications | BSMI, CE, EAC, FCC, RCM, VCCI, as per Manufacturer |
| Status Monitoring | LED Indicator |
| Cooling | 1 x 80 mm Hot-Swappable Fan |
| Max Volume Number | 64 |
| Max Groups | 256 |
| GPU | Intel HD Graphics 500 |
| Form Factor | Desktop |
| Total Installed Memory | 2 GB DDR3L |
| User-Replaceable Memory | 2 x 1 GB |
| Total Memory Slots | 2 x SO-DIMM |
| Maximum Memory Capacity | 6 GB |
| Number of Bays | 6 x 2.5" |
| Connections | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))<br />2 x RJ45 (Gigabit Ethernet) |
| Compatible Drive Interface | SATA (Unspecified Version) |
| Media Card Slots | None |
| RAID Modes | RAID 0, 1, 10, 5, 6, JBOD, Synology Hybrid |
| Max Sync Tasks | 8 |
| Hot-Swap Support | Yes |
| Wake on LAN | Yes |
| Link Aggregation and Failover Support | Yes |
| Supported Protocols | AFP<br>CIFS<br>CalDAV<br>FTP<br>L2TP<br>NFS<br>OpenVPN<br>PPTP<br>Rsync<br>SFTP<br>SMB<br>SNMP<br>SSH<br>Telnet<br>WebDAV<br>iSCSI |
| iSCSI LUN | 256 |
| iSCSI Target | 128 |
| Max Concurrent Connections | 1500 |
| Max Folders | 256 |
| Noise Level | 20.5 dBA |
Reviews (8)
8 reviews for Synology DiskStation DS620slim 6-Bay NAS Enclosure
Only logged in customers who have purchased this product may leave a review.
Related products
$69.99
NAS & Servers
$35.75
$18.19
NAS & Servers
$279.30
NAS & Servers
$28.09
NAS & Servers
$116.35
NAS & Servers
$287.99
NAS & Servers
$140.00
Taylor Waters
Verified Purchase
I found the Synology data storage system easy to install following their instructions, but I found it best to follow a detailed video made for beginners that I found on YouTube to set up for use. The Pal2tech information was most useful to buy and setup the system
Manuel Schmitt
Verified Purchase
Well built and well designed for a computer genius. Terrible instructions, however a quick response from their tech staff. Not for a novice.
Emma Wolff
Verified Purchase
I’ve been using this NAS for over a year before writing this review. I’d say that I really like its compact size and Synology’s DSM is by far the best for family/studio use.
Merl Upton
Verified Purchase
Well built and well designed for a computer genius. Terrible instructions, however a quick response from their tech staff. Not for a novice.
Jay Kautzer
Verified Purchase
I wanted to have a NAS drive that I could use at home and then take for a month+ trip (when I will be able to take it after various quarantines and travel restrictions are relaxed :-)). I bought the enclosure and stuffed it with 6 4TB 2.5 5400RPM Seagate disks (4TB are 15mm high and DS620slim will accommodate them). It was easy to setup – I used 1 disk redundant SHR option. The performance appears to be reasonable of about 108MB/s for both read and write on my gigabit local network according to Blackmagic Design disk speed test which according to them good enough to support work with 2160p25 (but not 2160p30). I haven’t tried to do it myself though. My title said almost, movable NAS because it’s on the not-that-light side, but definitely I will try to have it as a carry on — I will not ship it in a luggage though.
Carmela Bednar
Verified Purchase
I needed to replace my aging HP ProLiant N54L MicroServer, running since 2011. Having replaced the power supply once, I couldn’t do much about the end-of-support for WHS 2011 over a year ago. The kicker has been that the Windows client backup agent is not working on a couple OEM images of Windows 10 that I have around here. So I learned about the Synology NAS products and this one, the DS620slim, seemed a perfect fit. The box itself would seem a little pricey, until you factor in the included DSM operating system and the available packages (applications). The Synology software is all business, and that business is securing your data and making it available where you need it. I’ve worked in IT-fields for decades so setting up the DS620slim was an enjoyable learning experience. The Synology online manual pages are surprisingly helpful and a Google query almost always took me to the right page. All setup and administration is performed through the device’s web interface which emulates a complete DSM desktop within the browser window. To someone handy with a PC, the learning curve is probably reasonable given the quality of Synology’s web-based support. My choice of the 2.5-inch drive bay size was deliberate. Even with six bays, this is a much smaller box than any of the 3.5-inch models. Today there are ample choices in both 2.5-inch HDD and SDD. I got a couple Western Digital Red SDD’s for my main data repository (shared folders visible on the local network) and a couple 4TB HDD’s setup as RAID 1 for data backups. If you a large amount of valuable data and require access to it from more than one PC/device, the Synology is an excellent, complete solution.
Jarvis Becker
Verified Purchase
seems to do what it was advertised to do… no issues…
Madisyn Maggio
Verified Purchase
I have 4 2TB SSDs loaded into my DS620slim, running SHR-1 with an encrypted Share, and the unit is able to serve files at full gigabit without breaking a sweat. Perfect for having to take a NAS with me for work travel.
