Thermaltake Smart 500W 80 PLUS Power Supply

Thermaltake Smart 500W 80 PLUS Power Supply

Name: Thermaltake Smart 500W 80 PLUS Power Supply
Brand: Thermaltake
SKU: BH1193909
Availability: InStock

$34.99

In stock

SKU: BH1193909 Category: Desktop Components Brand: Thermaltake

Description

Keep your rig up and running with the Smart 500W 80 PLUS Power Supply from Thermaltake. Featuring a standard ATX form factor and Intel ATX12V Version 2.3 compliance, this 500W, PSU utilizes a single +12V rail and 120mm cooling fan. Furthermore, it boasts an 80 PLUS efficiency rating and delivers 82 to 86% efficiency at 20 to 100% load. Alongside motherboard and CPU connections, this power supply also sports 3 peripheral 4-pin, 6 SATA, and 2 PCIe connectors, as well as a 4-pin floppy connector. The Thermaltake Smart 500W 80 PLUS Power Supply has an mean time between failures (MTBF) of 100,000 hours, minimum.

Additional information

Weight	4.1 lbs
Dimensions	9.4 × 7.3 × 4 in
Total Connectors	1 x 20+4-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />3 x 4-Pin Peripheral / Molex<br />6 x 15-Pin SATA<br />2 x 6+2-Pin PCIe<br />1 x 4-Pin Floppy
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 8 A
Compliance	ATX 12 V v2.3
Form Factor	ATX
Operating Temperature	41 to 104°F / 5 to 40°C (Recommended)
Fan Speed	1800 rpm
Fan Size	120 mm
Efficiency	82 to 86% at 20 to 100% Load
Active Power Factor Correction	Yes
Efficiency Rating	80 PLUS

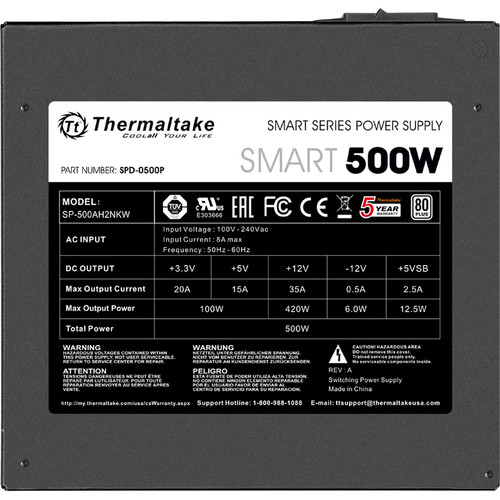

Max Power for -12 V	6 W
Total Wattage	500 W
Max Load for +5 Vsb	2.5 A
Max Power for +5 Vsb	12.5 W
Max Load for +5 V	15 A
Max Load for +3.3 V	20 A
Combined Power for +3.3/+5 V	100 W
Max Load for -12 V	0.5 A
Combined Power for +12 V	420 W
Number of +12 V Rails	1
Mean Time Between Failures (MTBF)	100, 000 Hours
