Description

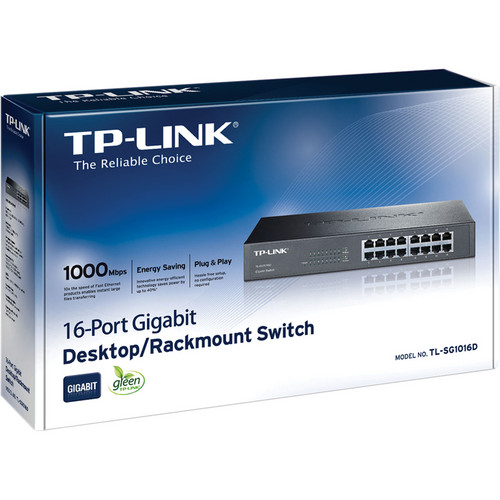

The TL-SG1016D 16 Port Unmanaged Gigabit Switch from TP-Link comes in an energy efficient configuration allowing you to save up to 40% over traditional network switches. With a variety of IEEE standards, this switch can be easily configured to meet a variety of needs. 802.3 compatibility is a general collection of IEEE standards used within a local area network when connecting hubs, switches, and routers. IEEE 802.3u, otherwise known as Fast Ethernet, is a standard that carries traffic at the normal rate of 100Mbps against the original Ethernet speed of 10Mbps. The IEEE 802.3x standard refers to a flow control standard allowing you to control traffic throughout the switch.
With 16 x 10/100/1000Mbps RJ45 Ports you can connect a number of devices to the Gigabit Switch to allow for multiple devices to connect to the Internet. The 32Gbps switching capacity provides for ultra fast data transfer speeds along with the 8K MAC address table giving you the necessary space to store a large number of MAC addresses. Auto MDI/MDIX eliminates the need for crossover cables allowing for a seamless connection. Once configured, the integrated LEDs show the power status, signal strength, and link activity.
Additional information
| Weight | 4.85 lbs |
|---|---|
| Dimensions | 15.8 × 9.9 × 3.2 in |
| Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Supported Protocols | Auto-MDIX/MDI |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 10, 000 Bytes |
| MAC Address Table Size | 8K |
| Supported IEEE Standards | 802.3, 802.3u, 802.3x |
| Switching Bandwidth | 32 Gb/s |
| OS Compatibility | Windows XP or Later<br />macOS<br />Linux<br />UNIX |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| Certifications | RoHS, as per Manufacturer |
| Cooling System | Passive |
| Indicator Lights | Link/Activity, Power, Speed |
Reviews (3)
3 reviews for TP-Link TL-SG1016D 16 Port Unmanaged Gigabit Switch
Only logged in customers who have purchased this product may leave a review.
Related products
Wired Networking
$31.19
Wired Networking
$20.16
Wired Networking
$75.19
Wired Networking
Synology E25G21-F2 Dual 25G Ethernet SFP+ Port PCIe 3.0 Adapter
$240.49
Wired Networking
Netgear GS305PP 5-Port Gigabit PoE+-Compliant Unmanaged Switch
$58.49
Wired Networking
$5.99
Wired Networking
$80.93
Wired Networking
Ubiquiti Networks 12-Port EdgeRouter 12 Advanced Network Router
$179.99
Grayson Feest
Verified Purchase
I needed this product for a network for some very high end game programmers who are very sensitive to connection speeds. I cascaded three of these switches and they work great and were very easy to install.
Shawn Schamberger
Verified Purchase
Switch is switching like a madman. Awesome performance. I am using it between my Asus router and my house patch pannel. Speed is very good. B&H delivered very quickly and the product was very well packaged (no damage).
Amanda Armstrong
Verified Purchase
What can I say – it’s a gigabit networking switch and it works well. I haven’t done any hard-core speed or saturation tests, but it seems to pass packets reliably and at advertised speeds. Runs cool and silently (fanless). It’s hard to determine from the available documentation, but this unit DOES include the rack mount brackets for installation into a standard 19 equipment rack. All this, and it’s still one of the least expensive Gig-E switches on the market.
