Description

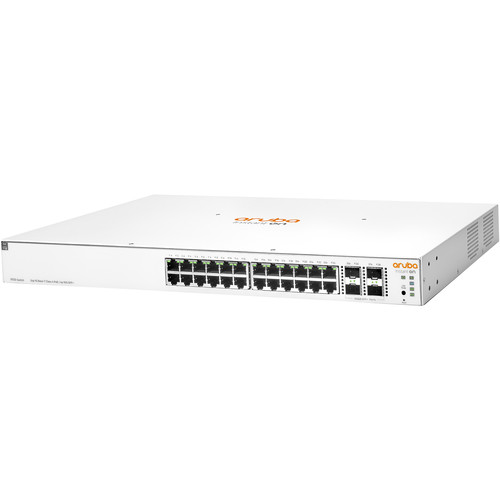

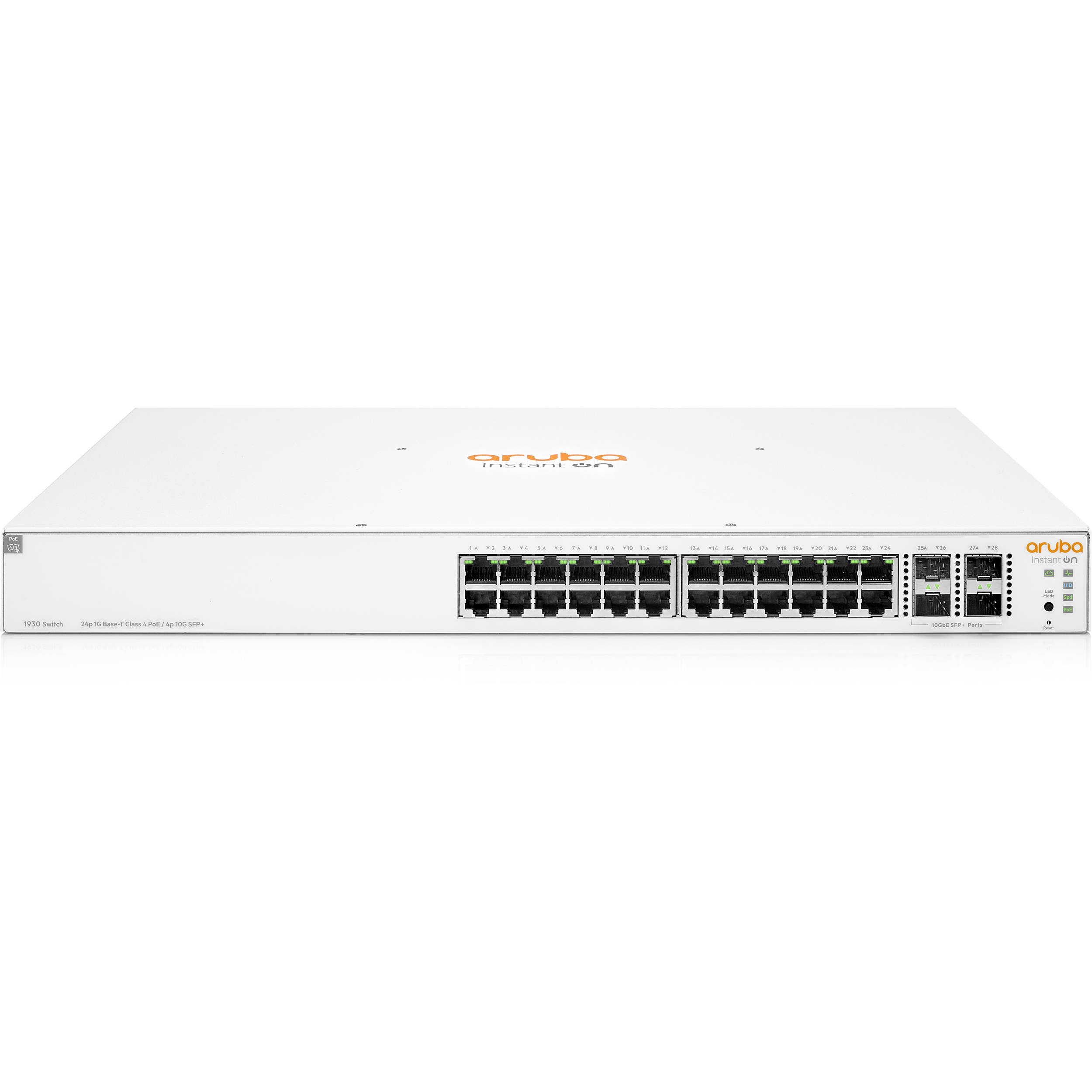

Expand your small office’s network capacity by using the Instant On 1930 24-Port Gigabit PoE+ Compliant Managed Switch with 10Gb SFP+ from Aruba to connect computers, network attached storage, and other high-bandwidth devices. This rack-mountable smart managed switch features 24 PoE+ compliant Gigabit Ethernet ports with a 128 Gb/s switching capacity and a 95.23 Mpps forwarding capacity powered by an 800 MHz ARM Cortex-A9 processor, 512MB RAM, and 256MB of flash storage with a 1.5MB packet buffer. Each PoE+ port supports up to 30W of power delivery, with a total budget of 370W, to connect security cameras, VoIP phones, and other powered devices. There are also four 10Gb SFP+ ports available that support fiber line uplinks and other connections that carry data across greater distances than copper lines. With its sleek design, the Instant On 1930 is built to discreetly blend into almost any environment. Additionally, the switch includes a suite of security controls that allow greater control over network access, configured using the web-based application or downloadable mobile app.
Additional information
| Weight | 12.29 lbs |
|---|---|
| Dimensions | 22.2 × 17.7 × 4.9 in |
| Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)<br />4 x 10/100/1000 Mb/s Gigabit SFP+ |
| Processor | 800 MHz ARM Cortex-A9 |
| Indicator Lights | Link/Activity/PoE, Power |
| Cooling System | Fan |
| Noise Level | 58.5 dB (Active) |
| Operating Altitude | 10, 000' / 3048 m |
| Storage Humidity | 15 to 95% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 15 to 95% |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Power Supply Type | Internal |
| PoE per Port | 30 W |
| PoE Power Budget | 370 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.4 to 4.8 A |
| Power Draw | 439.00 W (Max)<br />20.9 W (Idle) |
| Memory | 512 MB |
| RAM Buffer | 1.5 MB per Device |
| Layer Services Supported | Layer 2 Support |
| Static Routes | 32 |
| Supported Protocols | Auto-MDIX/MDI<br>Auto-VoIP<br>IGMP Snooping<br>IPv4<br>IPv6<br>Link Aggregation<br>Port Mirroring<br>SNMPv1<br>SNMPv2c<br>SNMPv3 |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9216 Bytes |
| MAC Address Table Size | 16K |
| Security Features | DHCP Snooping<br>DoS Attack Prevention<br>RADIUS Authentication<br>Storm Control |
| Access Control List | 50 |
| SNMP Support | 1, 2, 3 |
| Flash Memory | 256 MB |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1s, 802.1w, 802.1x, 802.2az, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3p, 802.3q, 802.3u, 802.3x, 802.3z |
| Latency | 4.7 µs |
| Forwarding Rate | 95.23 Mpps |
| Switching Bandwidth | 128 Gb/s |
| Priority Queues | 4 |
| Packet Buffer | 64 B |
| Rack Form Factor | 1 RU |
