Description

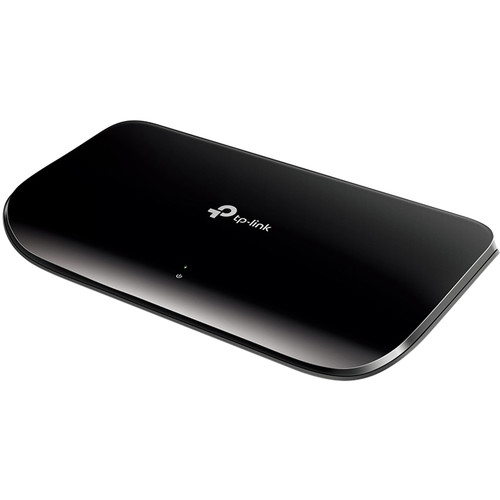

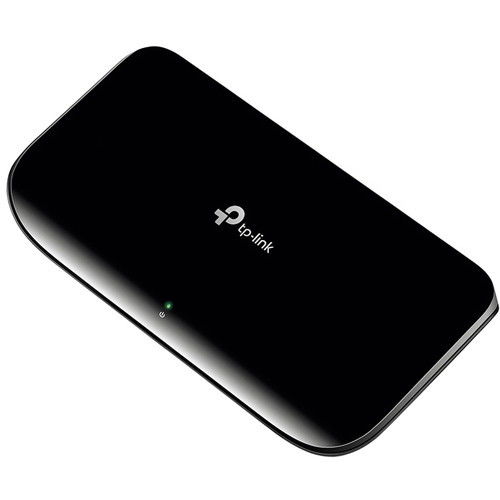

The 8-Port Unmanaged Gigabit Desktop Switch from TP-Link is a networking tool that’s affordable and easy to use. This switch features eight speedy Gigabit Ethernet ports for connecting computers or other Ethernet-enabled devices on your LAN network. In addition, this switch supports flow control, 15K jumbo frames, MAC address auto-learning and auto-aging, as well as Auto MDI/MDIX on all ports. It is packaged with material that is 80% recyclable and also features built-in energy-efficient technology so as to reduce power consumption when possible.
Additional information
| Weight | 0.84 lbs |
|---|---|
| Dimensions | 8.75 × 4.9 × 3.85 in |

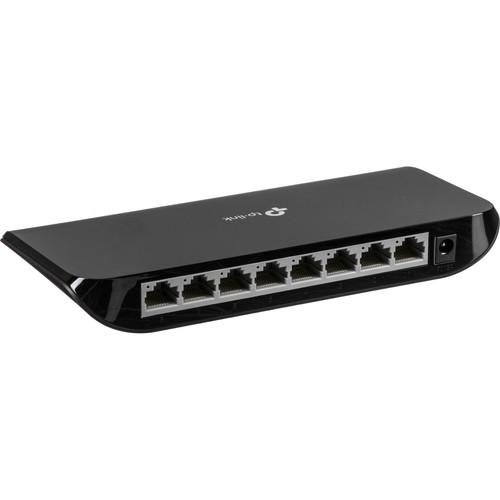

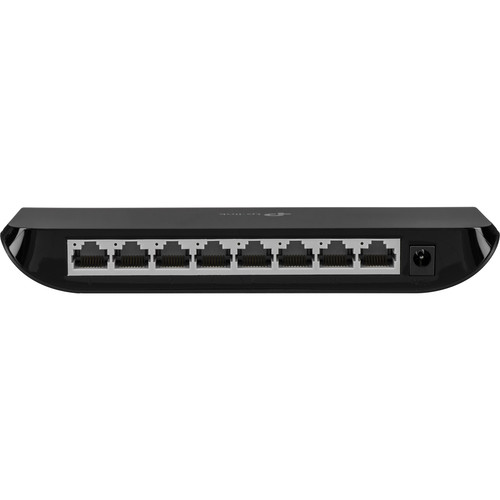

| Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Supported Protocols | Auto-MDIX/MDI |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 15, 000 Bytes |
| MAC Address Table Size | 8K |
| Supported IEEE Standards | 802.3, 802.3ab, 802.3u, 802.3x |
| Switching Bandwidth | 16 Gb/s |
| OS Compatibility | Windows XP or Later<br />macOS<br />Linux |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| Certifications | RoHS, as per Manufacturer |
| Indicator Lights | Link/Activity, Power |
Reviews (8)
8 reviews for TP-Link 8-Port Unmanaged Gigabit Desktop Switch
Only logged in customers who have purchased this product may leave a review.
Related products
Wired Networking
$17.59
Wired Networking
Cisco SG250-50 250 Series 50-Port Managed Gigabit Ethernet Switch
$631.14
Wired Networking
$8.44
Wired Networking
$75.19
Wired Networking
$15.99
$259.35
$2.21
Wired Networking
$142.17
Karson Luettgen
Verified Purchase
No-Brainer unmanaged switch – plug and play – adds 7 more ports to a home router with no effort. Good value. TT
Myriam Haag
Verified Purchase
The switch does work as advertised but the activity indicators are over the RJ-45 sockets and not on the front of the product as shown on the picture. I am disappointed because of this.
Marlen Breitenberg
Verified Purchase
Switch was delivered on time and it was very easy to install.
Devon Connelly
Verified Purchase
Best price online. Received free shipping. Received my merchandise in three days. Unbelievable!! How much better could it get?
Arnoldo Jones
Verified Purchase
It a gigabit switch. I like the compact size.
Genesis Gulgowski
Verified Purchase
I usually get Trendnet (metal box switches) but decided to try a TP-Link unit this time around. Seems to work flawlessly thus far for a bedroom media setup . The only thing I would have liked are 8 front port lights like they used to have on this model switch vs the now single front (on) light . Sale price was excellent and well worth the look into a switch made by TP-Link .
Leila Erdman
Verified Purchase
Excellent. Plug into your router and get more ethernet ports for all your devices! Awesome! Small, light, and wired, Cant beat the price! No drivers to install, nothing to configure. Love it.
Jessyca Harvey
Verified Purchase
Plug and play home network expansion device – simply run a Cat5 or Cat6 cable from the home router to the switch and plug in up to seven more devices to the home computer network. Much faster and more reliable than Wi Fi – set up is a complete no-brainer.
