Description

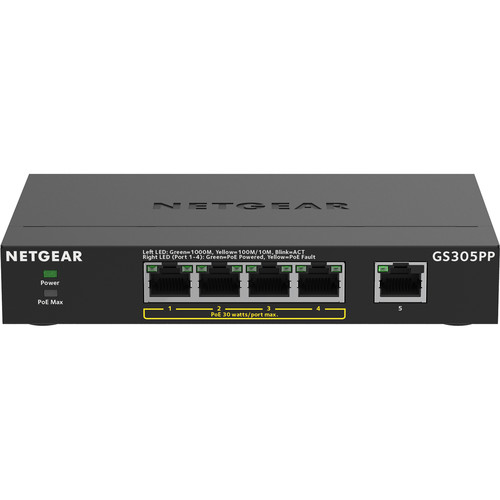

Quickly and easily expand your network to reach multiple Ethernet-enabled devices using the GS305PP 5-Port Gigabit PoE+-Compliant Unmanaged Switch from NETGEAR. This switch features five Gigabit Ethernet ports, four of which are PoE+-compliant with a total power budget of 83W, offering power to devices such as IP cameras, access points, and other components. Setup is simple, as the GS305PP features plug-and-play configuration, and with its durable metal housing, the switch can be installed virtually anywhere in your home or office.
Once installed, users benefit from a 10 Gb/s switching capacity, a 128KB memory buffer, 9216 byte jumbo frames, a 1.448 Mpps forwarding rate, and a 2K MAC address table size to ensure this switch operates smoothly, even under heavy use. In addition to enhanced performance, this NETGEAR switch is designed for efficiency, as it supports the 802.3az Energy Efficient Ethernet standard and short cable detection.
Additional information
| Weight | 2.65 lbs |
|---|---|
| Dimensions | 10.6 × 8.5 × 2.9 in |
| Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+<br />1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| PoE per Port | 30 W |
| Material of Construction | Metal |
| Mean Time Between Failures (MTBF) | 6, 710, 127 Hours |
| Cooling System | Passive |
| Operating Altitude | 10, 000' / 3048 m |
| Storage Humidity | 95% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 90% |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Power Supply Type | Internal |
| PoE Power Budget | 83 W |
| Supported Protocols | Auto-MDIX/MDI |
| DC Input Power | VDC at 1.66 A |
| Power Draw | 88.89 W (Max)<br />1.55 W (Standby) |
| Packet Buffer | 128 kB |
| Switching Bandwidth | 10 Gb/s (Non-Blocking) |
| Forwarding Rate | 1.44 Mpps |
| Supported IEEE Standards | 802.1p, 802.3, 802.3ab, 802.3az, 802.3i, 802.3u, 802.3x |
| MAC Address Table Size | 2K |
| Jumbo Frames Support | 9216 Bytes |
| Queuing | Weighted Round Robin (WRR) |
| Indicator Lights | Link/Activity/Speed, PoE, Power |
