Description

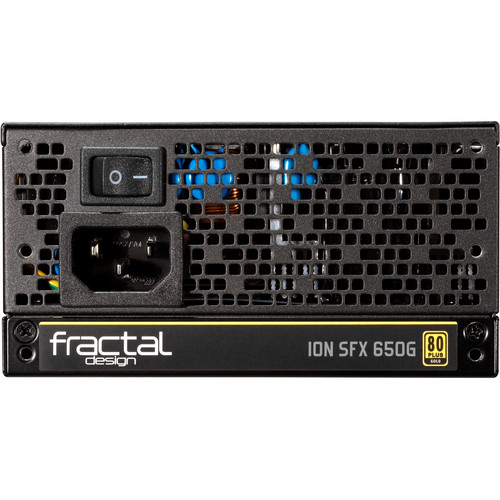

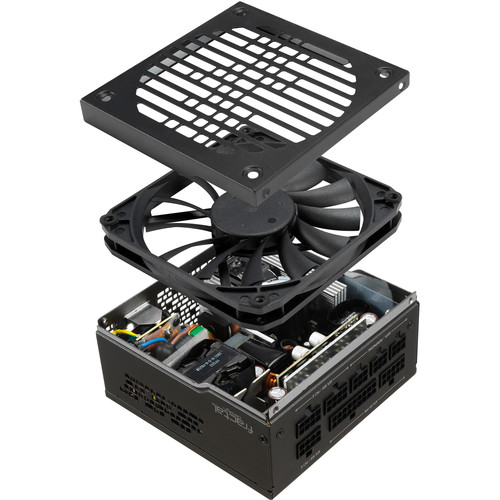

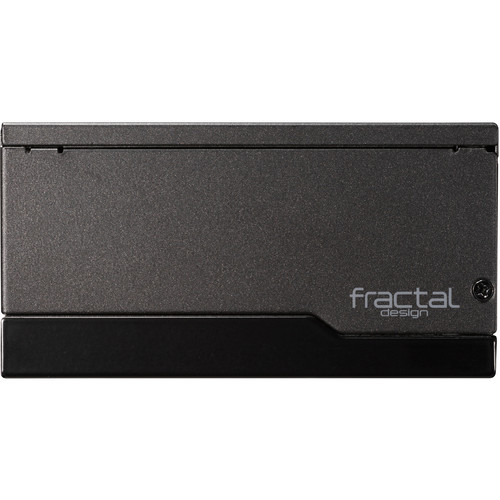

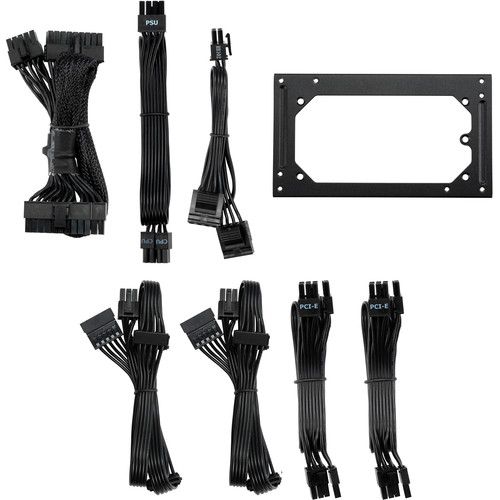

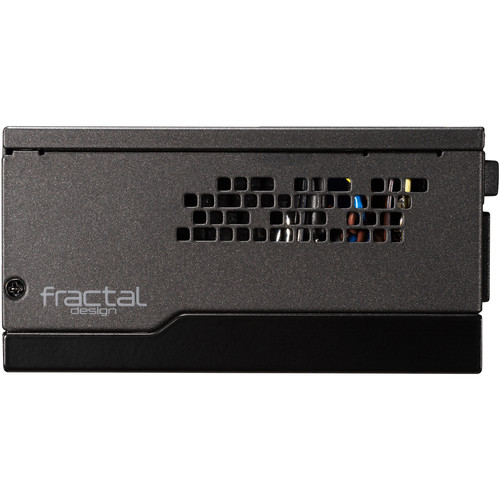

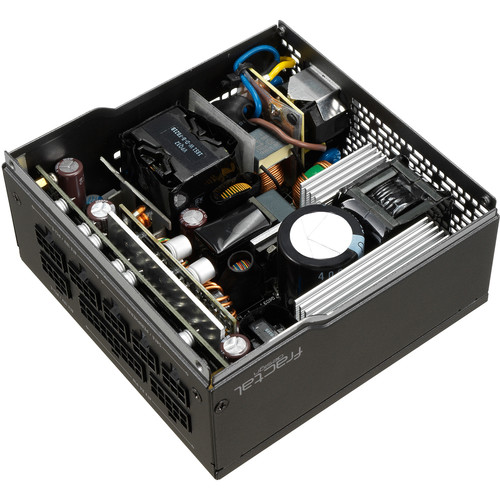

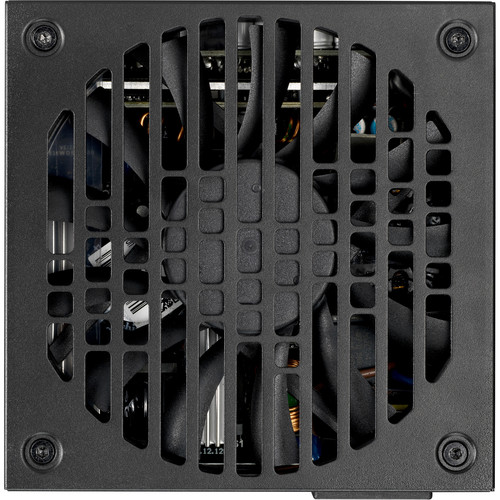

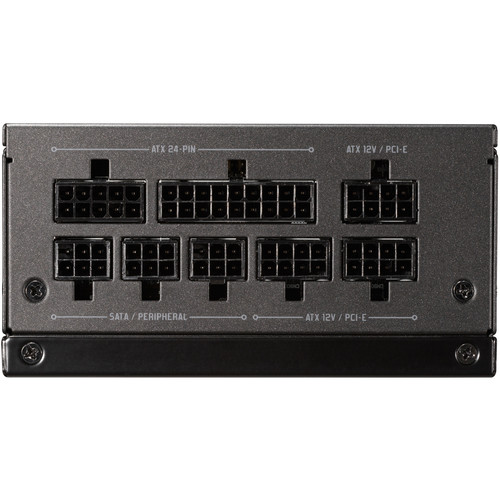

Keep components powered and connected with the Ion SFX 650W 80 PLUS Gold Modular Power Supply from Fractal Design. Providing 650W on a single 12V rail, this PSU sports a 120mm fan and features a semi-passive Zero RPM mode for totally silent operation. In addition to single motherboard and CPU connectors, this fully modular PSU also supplies four PCIe and eight SATA connectors, plus two 4-pin connectors for peripherals. Following Intel SFX12V specifications, the Fractal Ion SFX Gold can fit an ATX mount using the included adapter mount. This power supply also comes with a single motherboard, CPU, and 4-pin peripheral cable as well as two PCIe and SATA cables.
Additional information
| Weight | 4.61 lbs |
|---|---|
| Dimensions | 10.4 × 7.1 × 3.8 in |
| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />4 x 6+2-Pin PCIe<br />8 x 15-Pin SATA<br />2 x 4-Pin Peripheral / Molex |
| Max Load for +5 V | 20 A |
| Certifications | BSMI, CB, CCC, CE, EAC, ErP Lot 6, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Form Factor | SFX-L |
| Operating Temperature | 104°F / 40°C |
| Fan Life Expectancy | 100, 000 Hours |
| Bearing Type | Fluid Dynamic Bearings (FDB) |
| Fan Size | 120 mm |
| Efficiency Rating | 80 PLUS Gold |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 8 to 4 A |
| Max Load for +5 Vsb | 3 A |
| Max Load for +3.3 V | 20 A |
| Cable Design | Flat, Modular |
| Combined Power for +3.3/+5 V | 100 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 650 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 650 W |
| EPS Connector Distances | 15.7" / 400 mm |
| ATX Connector Distance | 13.8" / 350 mm |
| Peripheral Connector Distances | 11.8" / 300 mm<br />7.9" / 200 mm |
| SATA Connector Distances | 11.8" / 300 mm<br />7.9" / 200 mm<br />7.9" / 200 mm<br />3.9" / 100 mm<br />11.8" / 300 mm<br />7.9" / 200 mm<br />7.9" / 200 mm<br />3.9" / 100 mm |
| PCIe Connector Distances | 15.8" / 400 mm<br />3.9" / 100 mm<br />15.8" / 400 mm<br />3.9" / 100 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
Reviews (3)
3 reviews for Fractal Design Ion SFX 650W 80 PLUS Gold Modular Power Supply
Only logged in customers who have purchased this product may leave a review.
Related products
Desktop Components
$69.22
Desktop Components
$106.49
Desktop Components
$59.99
Desktop Components
$62.99
Desktop Components
$44.80
Desktop Components
Intel Core i9-9820X X-Series 3.3 GHz Ten-Core LGA 2066 Processor
$423.99
Desktop Components
$116.99
Desktop Components
ASUS Republic of Gamers STRIX 750W 80 Plus Gold Modular ATX Power Supply
$143.99
Felicia Cummerata
Verified Purchase
Easy to install, works great! I deducted one star because the 20-pin ATX cord is barely long enough to reach the board on an mini-ITX build. If you buy this, make your life easier and get some extensions for the cables.
Buddy Brakus
Verified Purchase
Nothing to complain. Saw it on LTT PSU tier list. Decided to buy.
Hector Brakus
Verified Purchase
this unit works great ,ive used it for about 6months to review this and it works great powering my rtx 3070
