Description

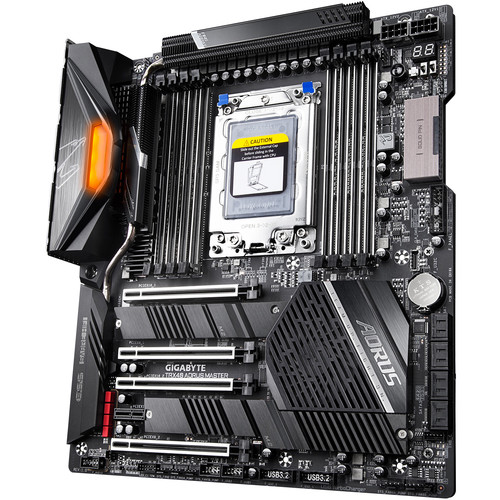

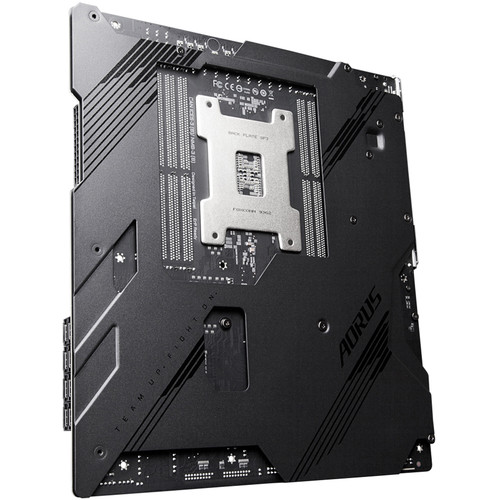

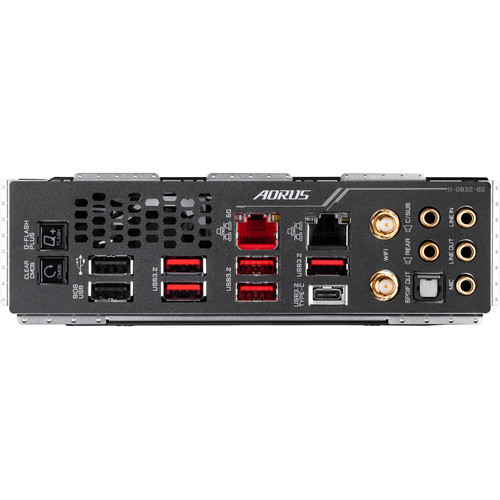

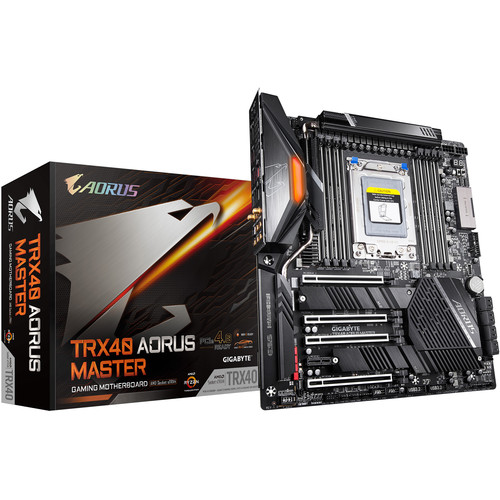

Unlock Unparalleled Performance with the Gigabyte TRX40 AORUS MASTER
Designed for content creators and professionals, the Gigabyte TRX40 AORUS MASTER TRX4 E-ATX Motherboard is engineered to save you time on demanding projects. Powered by the AMD TRX40 chipset, it supports third-generation AMD Ryzen Threadripper processors with the TRX4 socket, unlocking the full potential of your system.
Key Features:
- Supports 3rd-gen AMD Ryzen Threadripper processors with TRX4 socket
- Quad-channel ECC DDR4 RAM (up to 256GB, 4400 MHz OC)
- PCIe 4.0 x16 slots for 2-Way, 3-Way, and Quad-GPU configurations
- Advanced cooling system for optimal performance
- Triple M.2 SSD and eight SATA III storage drive support with RAID 0, 1, 10
- Realtek ALC1220-VB audio codec with ESS SABRE 9218 DAC for immersive DTS:X Ultra 7.1-channel surround sound
- Gigabit and 5 Gigabit Ethernet ports, plus built-in 802.11ax Wi-Fi
- Addressable RGB headers for customizable lighting with RGB Fusion 2.0
This motherboard is designed to maximize your system’s graphical capabilities, delivering high frame rates, supporting 4K and 8K monitors, and reducing video rendering times. With its robust feature set and cutting-edge technology, the TRX40 AORUS MASTER is the perfect foundation for your high-performance computing needs.
Customize your computing experience with addressable RGB headers and sync your lighting with other Gigabyte RGB Fusion 2.0-compatible peripherals using the desktop software or mobile app. With Windows 10 64-bit, unlock all the features of this powerful motherboard.
Additional information
| Weight | 5.73 lbs |
|---|---|
| Dimensions | 13.7 × 11.7 × 3.3 in |
| Chipset | AMD TRX40 |
| Multi-GPU Support | 2-Way, 3-Way, Quad-GPU NVIDIA SLI<br />2-Way, 3-Way, Quad-GPU AMD CrossFireX |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Module Support | 1 E Key M.2 |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
| Bluetooth | 5.0 |
| DAC | ESS SABRE 9218 |
| Audio Codec | Realtek ALC4050H (7.1-Channel) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
| Add-On | 1 x Thunderbolt Card Header |
| Diagnostics | BIOS Selection, Clear CMOS, Power, Reset |
| LED Header | 4 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />2 x 4-Pin System<br />4 x 4-Pin Assistant<br />2 x Thermal Sensor |
| Expansion Slots | 2 x PCIe 4.0 x16 (x16 mode)<br />2 x PCIe 4.0 x16 (x8 mode)<br />1 x PCIe 4.0 x1 |
| CPU Socket | sTRX4 |
| Memory Slots | 8 x 288-Pin |
| USB | 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Thunderbolt | None |
| Display | None |
| Ethernet / Controller | 1 x Intel Gigabit<br />1 x Aquantia 5GbE |
| Wi-Fi Antenna | 2 x Connector |
| Buttons | BIOS Flashback |
| Memory Support | DDR4 2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz |
| RAID Support | RAID 0, 1, 10 |
| Maximum Capacity | 256 GB |
| Channel Architecture | Quad Channel |
| ECC Support | Non-ECC, ECC Unbuffered |
| SATA | 8 x SATA III |
| M.2 | 1 x M Key 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, SATA (Unspecified))<br />2 x M Key 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA (Unspecified)) |
| U.2 | None |
| Form Factor | E-ATX |
