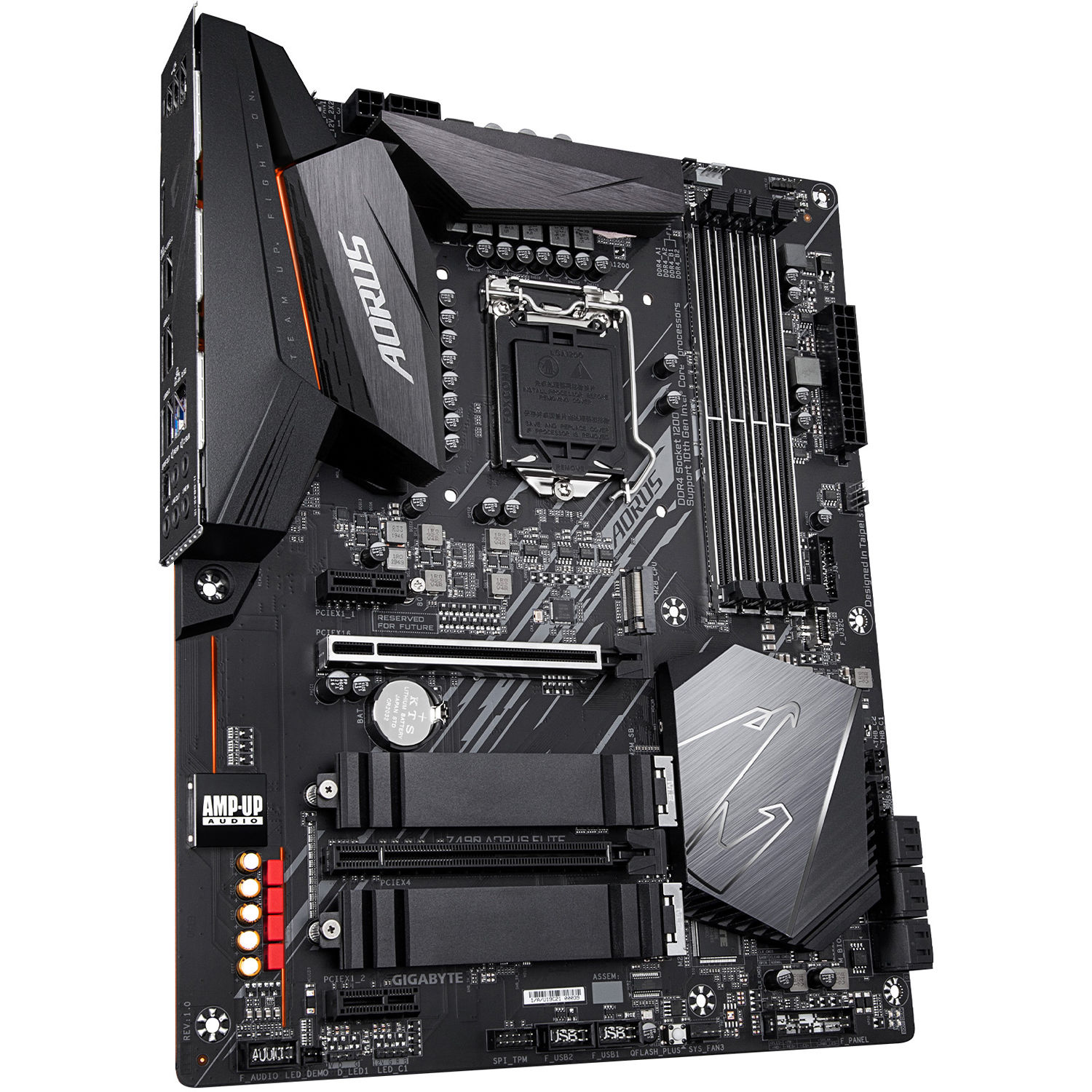

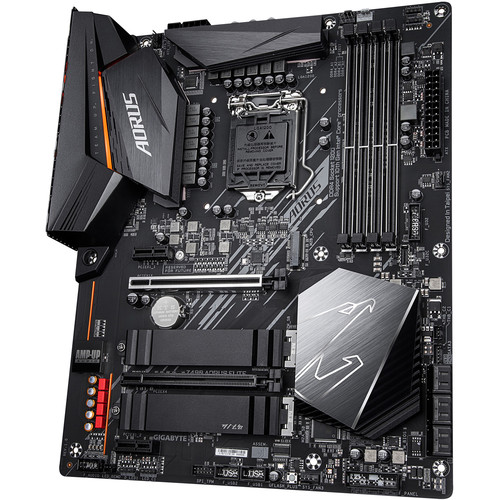

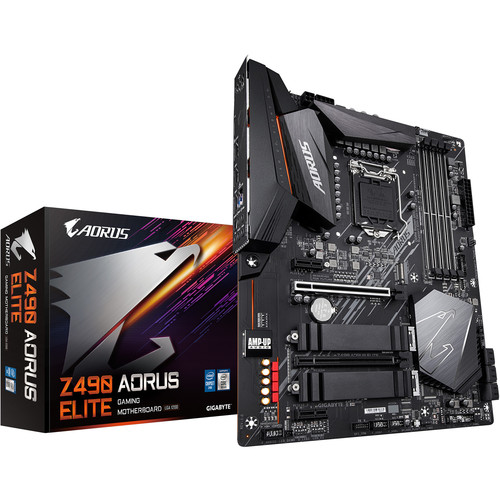

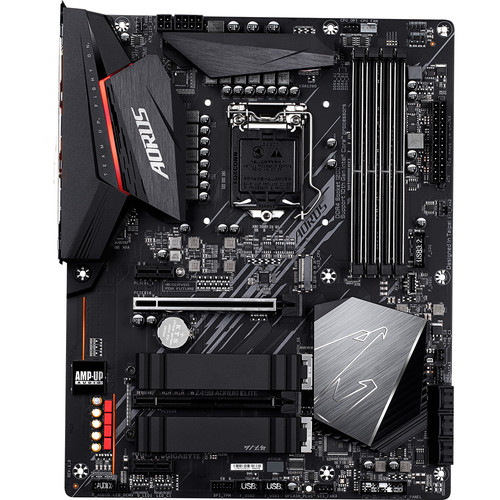

Gigabyte Z490 AORUS ELITE LGA 1200 ATX Motherboard

Gigabyte Z490 AORUS ELITE ATX Motherboard – LGA 1200

Name: Gigabyte Z490 AORUS ELITE ATX Motherboard - LGA 1200
Brand: Gigabyte
SKU: BH1560961
Availability: InStock
Rating: 4.33 (4 reviews)

$183.20

High-performance ATX motherboard with LGA 1200 socket, PCIe 3.0, USB 3.2 Gen 2, and RGB Fusion 2.0

In stock

SKU: BH1560961 Category: Desktop Components Brand: Gigabyte

Description

Unleash Your System’s Full Potential

Take your computing experience to the next level with the Gigabyte Z490 AORUS ELITE LGA 1200 ATX Motherboard. Engineered for gamers, enthusiasts, and content creators, this motherboard is built on the Intel Z490 chipset and supports 10th generation Intel processors with the LGA 1200 socket, unlocking unparalleled performance for demanding tasks.

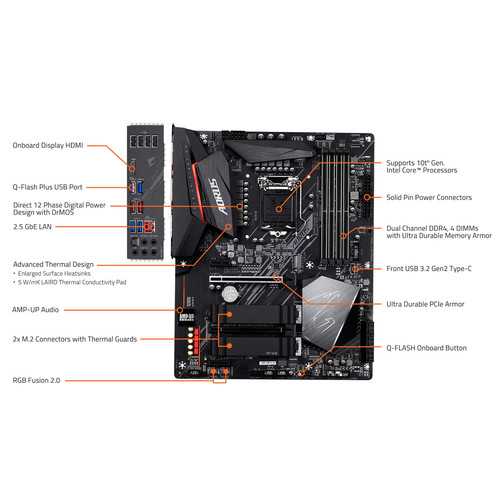

Key Features:

Supports 10th Gen Intel processors with LGA 1200 socket
Dual-channel DDR4 RAM up to 128GB, 5000 MHz (OC)
PCIe 3.0 x16 slots for 2-Way and Quad-GPU AMD CrossFireX
Advanced cooling for high-performance systems
Up to 2 M.2 SSDs and 6 SATA III storage drives with RAID support
Fast 2.5 Gigabit Ethernet and USB 3.2 Gen 2 Type-A ports
Immersive 7.1-channel surround sound with Realtek ALC1200 codec
Customizable RGB lighting with RGB Fusion 2.0

This motherboard is designed to deliver exceptional performance, whether you’re gaming, creating content, or pushing the limits of your system’s capabilities. With its robust feature set and future-proof design, the Gigabyte Z490 AORUS ELITE is the perfect foundation for your next high-performance build.

Expand Your System’s Capabilities

The Z490 AORUS ELITE offers ample expansion options, including two PCIe 3.0 x16 slots for multi-GPU configurations, two PCIe 3.0 x1 slots for additional peripherals, and two Thunderbolt 3 headers for high-speed connectivity. With support for up to 128GB of DDR4 RAM and advanced cooling solutions, this motherboard is built to handle even the most demanding workloads.

Immersive Audio and Customizable Lighting

Experience rich, immersive audio with the Realtek ALC1200 codec, delivering 7.1-channel surround sound for an engaging gaming and entertainment experience. Customize your system’s appearance with the addressable RGB headers, syncing your lighting with other Gigabyte RGB Fusion 2.0-compatible peripherals using the desktop software or mobile app.

Upgrade your computing experience with the Gigabyte Z490 AORUS ELITE LGA 1200 ATX Motherboard, designed to unlock your system’s full potential and take your productivity and gaming to new heights.

Additional information

Weight	3.84 lbs
Dimensions	13.3 × 10.8 × 3.3 in
Chipset	Intel Z490
Expansion Slots	1 x PCIe 3.0 x16 (x16 mode)<br />1 x PCIe 3.0 x16 (x4 mode)<br />2 x PCIe 3.0 x1
Supported Operating Systems	Windows 10 (64-Bit)
Audio Codec	Realtek ALC1200 (7.1-Channel)
I/O Connection Headers	AAFP, USB 3.1 / USB 3.2 Gen 1
ROM	256 Mb
Add-On	2 x Thunderbolt Card Header
Diagnostics	Clear CMOS, Flash BIOS
LED Header	4 x RGB
Security	TPM Module
Power Connectors	1 x 24-Pin Mainboard<br />1 x 8-Pin ATX<br />1 x 4-Pin ATX
Liquid Cooling	1 x 4-Pin Pump
Air Cooling	1 x 4-Pin CPU<br />3 x 4-Pin System
Multi-GPU Support	2-Way, Quad-GPU AMD CrossFireX
RAID Support	RAID 0, 1, 5, 10
CPU Socket	LGA 1200
Optane Memory Support	Yes
U.2	None
M.2	2 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x2, PCIe 3.0 x4, SATA (Unspecified))
SATA	6 x SATA III
ECC Support	Non-ECC, ECC (Non-ECC Mode) Unbuffered
Channel Architecture	Dual Channel
Maximum Capacity	128 GB
Memory Support	DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000 MHz
Memory Slots	4 x 288-Pin
Ethernet / Controller	1 x Realtek 2.5Gigabit
Display	1 x HDMI 1.4
Thunderbolt	None
USB	1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Form Factor	ATX
