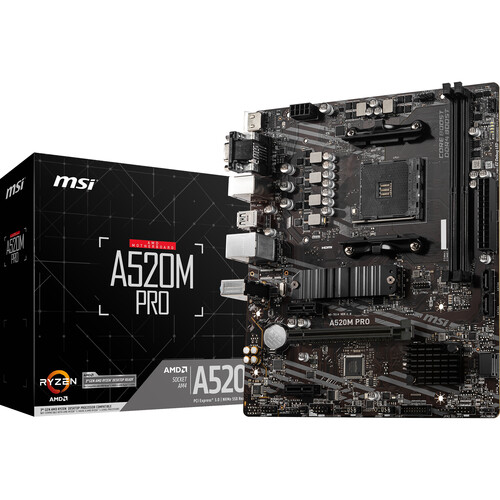

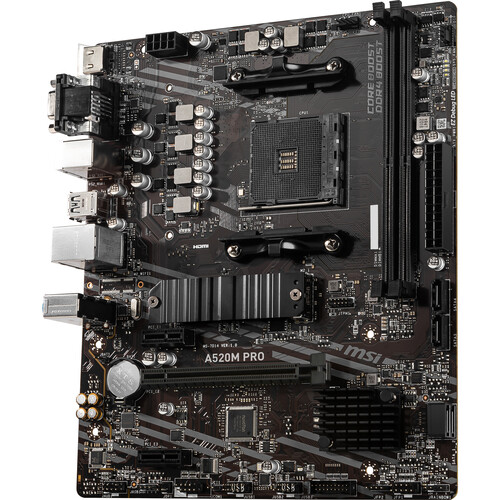

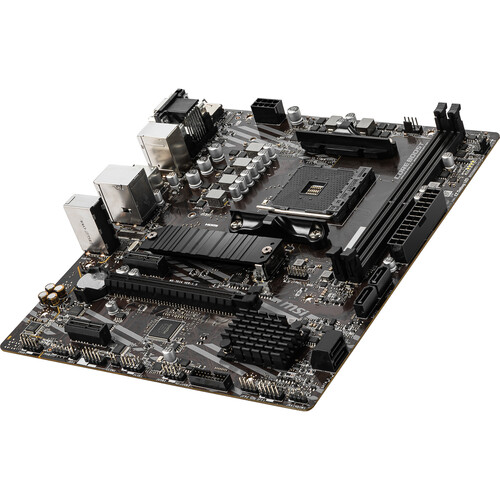

MSI A520M PRO AM4 Micro-ATX Motherboard: Performance and Connectivity
Get efficient performance without skimping on connectivity with the MSI A520M PRO AM4 Micro-ATX Motherboard. Designed for AMD AM4 socket processors, this motherboard uses the A520 chipset to deliver reliable performance.
Key Features:
- Supports up to 64GB of dual-channel DDR4 RAM across two slots, with speeds up to 4600 MHz via overclocking
- Four SATA III interfaces and one M.2 slot for storage drives
- PCIe 3.0 x16 and two PCIe 3.0 x1 slots for adapter cards
- Four USB 3.2 Gen 1 and two USB 2.0 ports on the rear I/O panel
- DisplayPort, HDMI, and VGA outputs for multi-display setups
- RJ45 port for Gigabit Ethernet connectivity
- Realtek audio codecs supporting 7.1 Surround Sound
- 3-pin LED and 4-pin RGB headers compatible with Mystic Light Sync
The MSI A520M PRO AM4 Micro-ATX Motherboard is designed to provide a seamless computing experience. With its robust feature set, it supports a wide range of applications, from everyday productivity to gaming and content creation.

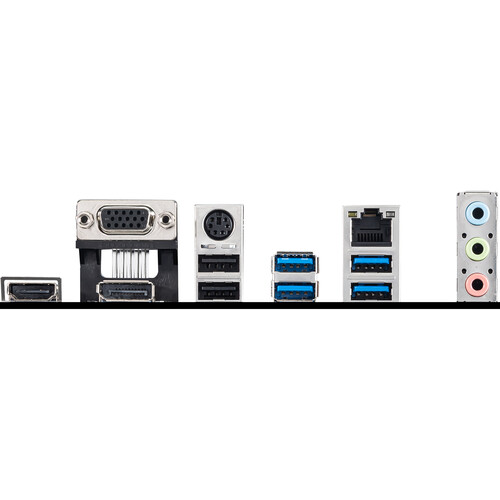

The motherboard’s rear I/O panel is equipped with a variety of ports to meet different connectivity needs. In addition to USB ports, it features DisplayPort, HDMI, and VGA outputs, allowing users to connect multiple displays. An RJ45 port provides Gigabit Ethernet connectivity for stable and fast network connections.
The MSI A520M PRO AM4 Micro-ATX Motherboard also features advanced audio capabilities, with Realtek audio codecs supporting 7.1 Surround Sound. Three 3.5mm audio jacks on the rear panel ensure easy connectivity for audio devices.
For users who value aesthetics, the motherboard includes 3-pin LED and 4-pin RGB headers, making it compatible with Mystic Light Sync. This allows users to synchronize lighting effects with other RGB components, creating a cohesive and visually appealing system build.
The MSI A520M PRO AM4 Micro-ATX Motherboard is compatible with Windows 10 operating systems, ensuring a smooth and efficient computing experience.
Additional information
| Weight | 1.74 lbs |
|---|---|
| Dimensions | 10.3 × 10.3 × 2.2 in |
| Chipset | AMD A520 |
| RAID Support | RAID 0, 1, 10 (SATA) |
| Supported Operating Systems | Windows 10 |
| Audio Codec | Realtek ALC892/ALC897 (7.1-Channel) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
| Legacy | 1 x Serial |
| Diagnostics | Clear CMOS |
| LED Header | 1 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin System |
| Multi-GPU Support | None |
| Expansion Slots | 1 x PCIe 3.0 x16<br />2 x PCIe 3.0 x1 |
| U.2 | None |
| CPU Socket | AM4 |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
| SATA | 4 x SATA III |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 64 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MHz |
| Memory Slots | 2 x 288-Pin |
| PS/2 | 1 x PS/2 |
| Ethernet / Controller | 1 x Realtek RTL8111H Gigabit |
| Display | 1 x DisplayPort <br />1 x HDMI 1.4<br />1 x VGA |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | Micro-ATX |
