Description

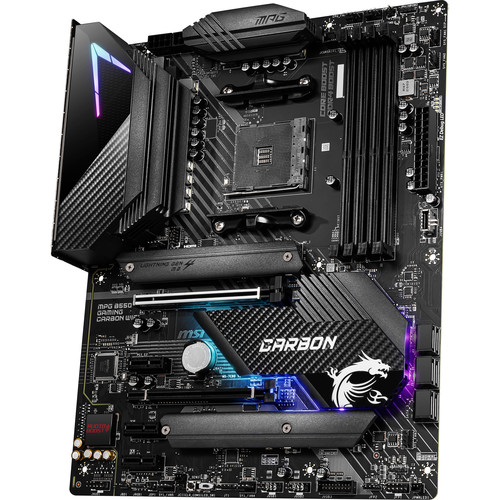

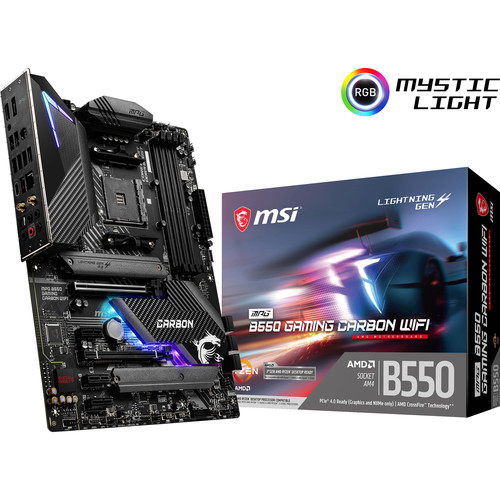

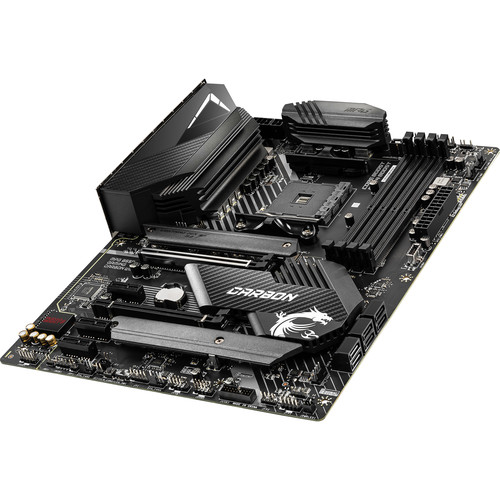

Design a sleek, small custom build PC with the MPG B550 GAMING CARBON WIFI AM4 ATX Motherboard from MSI. Ideal for the builder who wants to use high-end gaming components while taking advantage of fan- or liquid-cooling systems, wireless internet connectivity, and RGB headers for a unique and colorful style.
An AM4 socket and B550 chipset provide compatibility with various AMD Ryzen-brand processors. Four dual-channel DDR4 memory slots are available, as well as six SATA III ports and two M.2 slots for storage devices. A PCIe 4.0/3.0 x16 and PCIe 3.0 x16, and three PCIe 3.0 x1 slots are available for the installation of various graphics and utility cards. This Wi-Fi 6 (802.11ax) enabled motherboard gives you wireless access to your network, and Bluetooth 5.1 lets you connect wireless devices such as speakers and headsets for a cord-free experience. This motherboard is only compatible with Windows 10 (64-bit) operating systems.
Additional information
| Weight | 4.31 lbs |
|---|---|
| Dimensions | 13.6 × 10.7 × 3.4 in |
| Chipset | AMD B550 |
| Expansion Slots | 1 x PCIe 4.0 x16<br />1 x PCIe 3.0 x16<br />3 x PCIe 3.0 x1 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Module Support | 1 E Key M.2 |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Bluetooth | 5.1 |
| Audio Codec | Realtek ALC1200 (7.1-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| Diagnostics | Clear CMOS |
| LED Header | 4 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX<br />1 x 4-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />6 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| RAID Support | RAID 0, 1, 10 (SATA)<br />RAID 0, 1 (M.2) |
| CPU Socket | AM4 |
| U.2 | None |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC, ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4466, 4533, 4600, 4800, 4866, 5000, 5100 MHz |
| Memory Slots | 4 x 288-Pin |
| Buttons | BIOS Flashback |
| Wi-Fi Antenna | 2 x Connector |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 x 2.5Gigabit |
| Display | 1 x DisplayPort <br />1 x HDMI |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
Reviews (7)
7 reviews for MSI MPG B550 GAMING CARBON WIFI AM4 ATX Motherboard
Only logged in customers who have purchased this product may leave a review.
Related products
Desktop Components
$107.99
Desktop Components
$232.49
Desktop Components
$259.99
Desktop Components
$62.99
Desktop Components
$104.64
Desktop Components
$116.99
Desktop Components
$194.99
Desktop Components
$25.99
Magdalen Nitzsche
Verified Purchase
I imagine it will be great but this is only the second piece to my first ever computer build, the first being msi rtx3070 ti ventus x3. Hope alls well in the next 4 months as I continue to collect my parts.
Lincoln Gerlach
Verified Purchase
Greatly paired Motherboard with 4000D case from Corsair with the type c io front panel and looks Awesome and the wifi very fast
Tavares Cummerata
Verified Purchase
Pretty, easy to setup.
Ike Weimann
Verified Purchase
Everything you need, nothing you don’t for a Ryzen/Radeon gaming/creativity rig.
Anabel Jacobi
Verified Purchase
Awesome MotherBoard with great features I choose this motherboard mostly for the looks and the type c front panel io
Nayeli Labadie
Verified Purchase
This motherboard not only looks great, but it has everything i need and even more. Everything has worked perfectly smooth for me so far, and bios is easy to navigate. Im not too technical as this was used for my first build, but if you can invest into it this is a fantastic board to go with. B&H and msi both had outstanding service, as this item was backordered and expected to ship in mid-late december (i ordered in late november) but then arrived early after a mere week of waiting. Apparently it was shipped directly from MSI and it came super quick.
Prudence Walter
Verified Purchase
I have the following parts installed: 3600, 2080Ti, G.SKILL Trident Z Neo (2 x 16GB) F4-3600C16D-32GTZN, Samsung 970 Evo 1TB in the primary, and an XPG SX8200 Pro 2TB in the secondary M.2 slots. I also added a 1x USB add-on card in the bottom PCIe slot. Hardware-wise it is a typical motherboard to me. There is nothing really outstanding to note, nothing about it really got my attention as out of the ordinary. I suppose that is a good thing, nothing exceptional and nothing annoyingly bad. This is my first MSI board. I am used to Asrock, Gigabyte, and Asus UEFI interfaces and this one felt weird to me at first but work with it long enough and it isn’t too bad. The MSI software is garbage. I installed the Dragon Center software right after installing Windows having had no prior experience with it. It feels and works like a hodgepodge of garbage software strapped together. I promptly rebooted my system off of the Windows install thumb drive and blew that install of Windows away and started over to be sure no trace of Dragon Center was left. So I am currently left with rainbow cycling LEDs because I haven’t found a stand-alone version of Mystic Light that works with this board. At least they give you a hardware switch to turn them off. I can’t say I am a fan of the swoosh on the VRM heatsink anyway. The other problem that I had was with Secure Boot. It was working until I updated my UEFI to 7C90v13. I did some research and it seems like the latest version broke it for several boards. I’m still waiting for that to be resolved. Overall it is working as I’d expect. Other than the noted problems I’ve had no others. My plan is to update to a newer Ryzen when they come out and replace the 970 EVO with a PCIe4 drive once prices drop a bit more. Then get one of the new video cards once everyone puts their cards on the table. I’ll come back and update if I have any other problems.
