Description

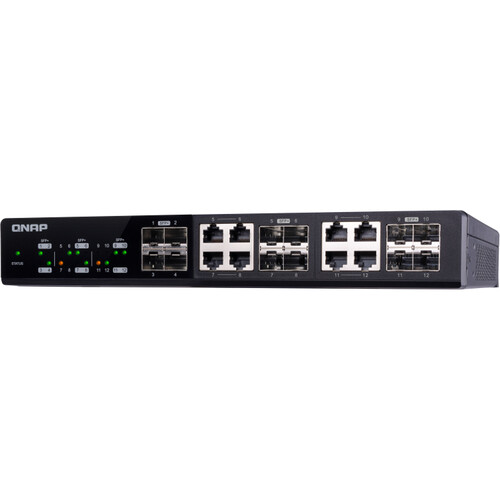

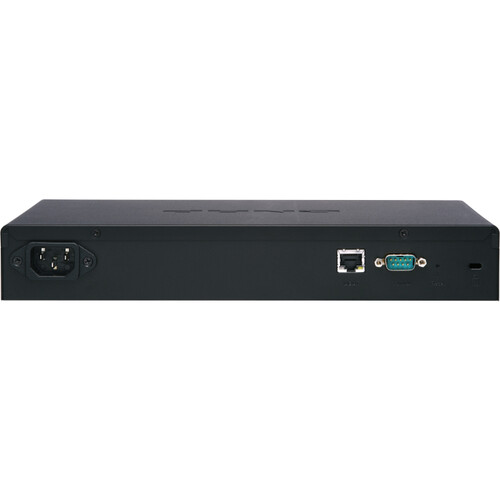

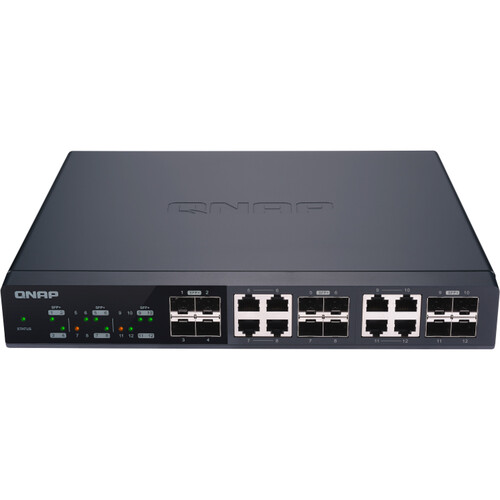

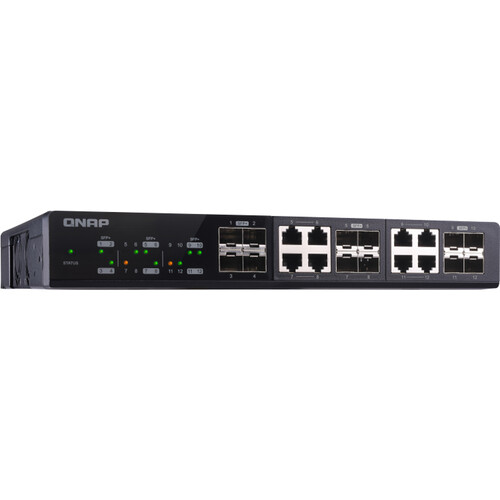

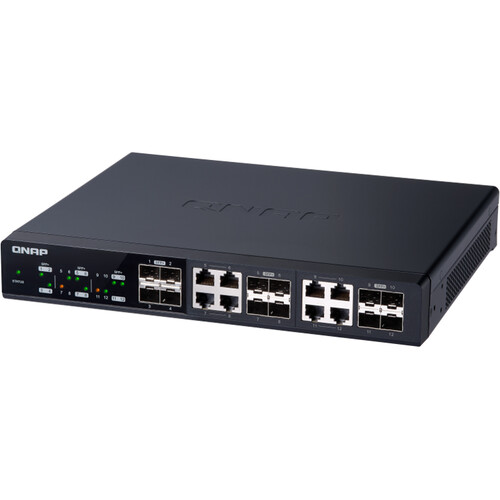

Expand your network to support up to 10G connections to computers, NAS devices, and more with the QSW-M1208-8C-US 12-Port 10GbE Managed Switch from QNAP. This web-managed switch is designed to provide high flexibility with eight 10G Ethernet RJ45 / SFP+ combo ports that support Cat 6a or above copper cables alongside four 10G SFP+ fiber uplink ports. Its 240 Gb/s switching capacity and 120 Gb/s non-blocking throughput help to ensure maximum performance from each of the ports. This switch is also backward compatible with slower Ethernet speeds. On the back is a Gigabit Ethernet maintenance port and an RS-232 serial console connector. With its sleek design, the QSW-M1208-8C-US can be mounted on a desk or rack with the included kit while its integrated cooling fans operate quietly to help maintain optimal temperature and performance.
Additional information
| Weight | 6.7 lbs |
|---|---|
| Dimensions | 15.5 × 11 × 3 in |
| Ports | 8 x 10Gb Combo (Ethernet/SFP)<br />4 x 10Gb SFP+<br />1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Console)<br />1 x RS232 (Console) |
| Layer Services Supported | Layer 2 Support |
| Supported Protocols | Auto-MDIX/MDI<br>IGMP Snooping<br>IPv4<br>Link Aggregation<br>MAC Filtering |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Supported IEEE Standards | 802.1ab, 802.1p, 802.1q, 802.1w, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3an, 802.3az, 802.3bz, 802.3u, 802.3x, 802.3z |
| Switching Bandwidth | 240 Gb/s <br />120 Gb/s (Non-Blocking) |
| Power Draw | 70.00 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% |

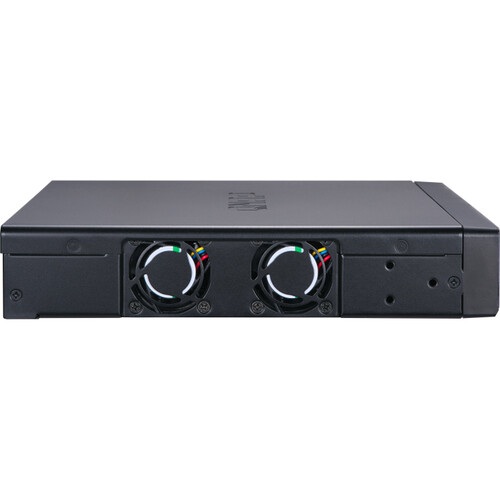

| Cooling System | Fan |
| Indicator Lights | Link/Activity/Speed, Power, Status |
| Rack Form Factor | 1 RU |
Reviews (2)
2 reviews for QNAP QSW-M1208-8C-US 12-Port 10GbE Managed Switch with SFP+
Only logged in customers who have purchased this product may leave a review.
Related products
$329.25
Wired Networking
$8.44
Wired Networking
Ubiquiti Networks 12-Port EdgeRouter 12 Advanced Network Router
$179.99
Wired Networking
$142.17
Wired Networking
$20.16
Wired Networking
Synology E25G21-F2 Dual 25G Ethernet SFP+ Port PCIe 3.0 Adapter
$240.49
$271.49
$343.85
Chad Conroy
Verified Purchase
This switch is awesome. Compact but also rackmountable. Has tons of ports, all 10GbE. SFP and RJ-45 options. The web GUI is totally intuitive and easier to use than comparable product from Netgear. Best of all, it’s QUIET. My previous switch belonged in a machine room. This one sits in my office and doesn’t make any sounds that I can hear.
Meagan Marvin
Verified Purchase
10G connectivity between my QNAP NAS and my PC through my QNAP Single-Port 10GbE Network Expansion Card is really fantastic. Not only that, but I can take full advantage on my internet provider’s full speeds across any device connected to this switch. I also use a Netgear Nighthawk AX12 12-Stream Wi-Fi 6 Router the gives me 3,500 square feet coverage, so my entire house (2,000 square feet) gets much faster Wifi connectivity. Worth every penny, easy to configure and manage interface. I have this QSW-M1208-8C rack mounted in my basement next to my NASes and a little PoE unmanaged switch sitting on top that powers my security cameras. I am very happy with my purchase!
