Description

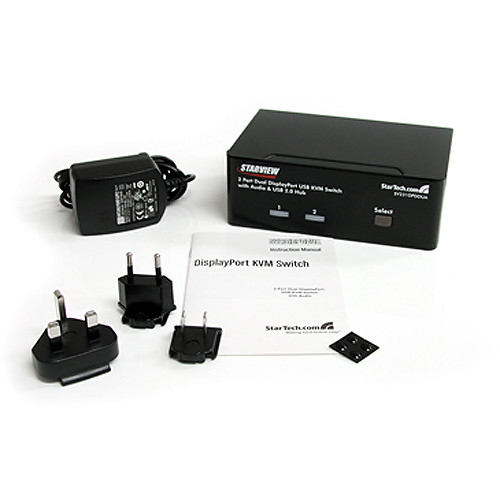

The 2-Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub from StarTech combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. It is also ideal for systems with a single DisplayPort output and a second video source such as DVI or HDMI using a low-cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560 x 1600 (@ 60 Hz) with DisplayPort HD audio as well as 2-channel analog stereo audio and microphone input. Suitable for high-quality static imaging, such as medical applications (MRI, X-ray and more), a maximum resolution of 3840 x 2400 is supported at lower refresh rates.
Additional information
| Weight | 2.6 lbs |
|---|---|
| Dimensions | 9.9 × 7.4 × 2.7 in |
| Hardware | Audio: Yes<br>KVM Ports: 2<br>PC Interface: USB<br>PC Video Type: DisplayPort<br>Multi-Monitor: Yes |

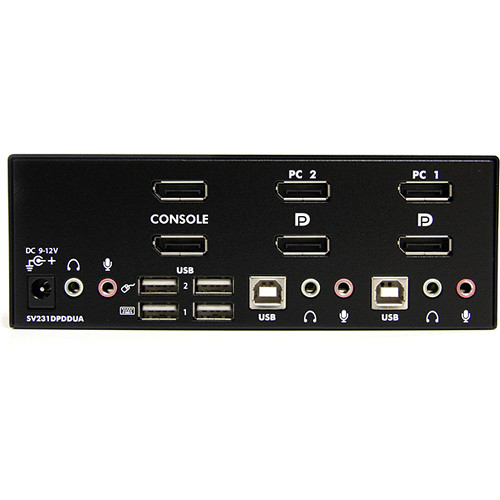

| Connectors | Console Interfaces:<br>2 x 0.14" (3.5 mm) mini-jack (3 position) female<br>2 x DisplayPort (20-pin) female<br>4 x USB A (4-pin) female |
| Performance | DVI Support: Yes – Dual link<br>IP Control: No<br>Maximum Digital Resolutions: WQXGA – 2560 x 1600<br>Wide Screen Supported: Yes<br>Maximum Number of Users: 1<br>Port Selection Support: Push button and hotkeys |
| Software | OS Compatibility: OS independent; no software or drivers required |
| LED Indicators | 2 x green – on-line<br>2 x red – selected PC |
| Power | Power Adapter Included: Yes<br>Input Voltage: 110 ~ 240 AC<br>Input Current: 0.8 A<br>Output Voltage: 12 DC<br>Output Current: 1.5 A<br>Center Tip Polarity: Positive<br>Plug Type: M |
| Certifications | CE, FCC, RoHS |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (20 to 60°C) |
| Humidity | 0 ~ 80% RH |
| Color | Black |
| Enclosure Type | Steel |
| Dimensions (WxHxD) | 6.3 x 2.3 x 3.9" (161 x 57.5 x 100 mm) |
Reviews (8)
8 reviews for StarTech 2-Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub
Only logged in customers who have purchased this product may leave a review.
Related products
$314.93
$51.68
Felicity Smith
Verified Purchase
I have had this product for nearly 3 years – simple to set up, switches between Mac & PC with two 2560×1440 displays and logitech wireless mouse / keyboard. Super easy to use – couldn’t have hoped for a more trouble-free better product.
Sadie Bernier
Verified Purchase
First, let me note I received this item in exchange for an impartial review. That said, please pay attention and know what you want and need before buying this. DisplayPort is NOT HDMI. They look similar but aren’t and unless you have DisplayPort, you’ll need an adapter which will delay things. Past that, this is as easy to use as any other KVM StartTech offers. It’s not a low end KVM. This is serious KVM for people that want and need a professional product. The scenario this solves is simple – Multiple computers, typically a Desktop and a laptop or two towers and one primary monitor, mouse, speakers and peripherals that you want to share with the two computers. Very simple solution to an annoying problem. The construction is really solid as I said above, it’s durable and strong, allows some air flow so heat isn’t a huge issue and everything fits pretty as well as it could. Unlike the other KVM switches I’ve got here, this one started out working great and then got really sketchy. I see a few others noted a few problems. I’ll just say I’ve had the same ones almost identical. HOWEVER, it’s easily fixed, very intermittent and is seldom a very big problem. To fix it you hit the button twice. Yet it still does seem weird and my only concern is that it seems to have gotten worse over time, the quick fix may not continue working. As long as you know what your components are, understand DisplayPort vs HDMI, have the adapters if you need them, you’ll have this thing out of the box and working in a few minutes. I was hoping I had a bad unit until I saw a few other people post about it. Time will tell.
Nikko Labadie
Verified Purchase
I get dual monitor on both computers, the audio also switches to the computer I’m working on.
Giovanna Jacobs
Verified Purchase
I’ve had this for over a year and it behaves HORRIBLY when recovering from sleep and the supposedly USB2.0 hub is practically useless. For both of these situations, I believe that a firmware update would/could help, but…I don’t see that happening. Still for my dual DP with two laptop setup, this is the only viable option. Did I mention it’s WAY too expensive for what it provides? 🙁
Jovan Hand
Verified Purchase
Support about 40 of these and work most of the time but have a high level of failures from keyboard/mouse not working to screens not always detecting. Have to buy several replacements each year. Wish there was an alternative on the market
Angelina Ledner
Verified Purchase
I would recommend this to anyone with dual monitors and two pc’s. The only issue I had was that Windows 7 kept adjusting the displays when I switched between computers. It was a real annoyance to find all my windows, icons and screen resolutions messed up every time I switched. I finally after about a week of annoyances found a setting in my catalyst control center to disable display polling which fixed the problem for me.
Jaime Lubowitz
Verified Purchase
Bought this early in the pandemic to adapt my desk to both personal and work computers. From day 1 I’ve had issues with the USB peripherals. The mouse port has never worked when switching, so I’ve had to plug a wired mouse into the generic shared USB port. Dual displays have been highly inconsistent, and frequently I would have to reboot my laptop after I switched to it in order for one of the displays to detect properly – but don’t you dare let the monitor go to sleep as it will be detected wrong again on waking.
Rachel Donnelly
Verified Purchase
I learned something new this week: EDID, or Extended Display Identification Data, is used by the computer to determine it is connected to an external display. Without it, the computer thinks it is not connected. When using a KVM switch, if EDID data isn’t reported to the computer, such as when switching between machines, the computer defaults its desktop (at least under Windows). This device does not mimic EDID data; therefore, switching causes the computer to think it has lost its display. EDID Emulation is available, better KVM devices offer it. StarTech is not a “better KVM device”, however. They recommend that after buying their overpriced box, that one goes and buys external EDID emulators to overcome this problem – instead of just engineering it into their product. I have to say I’m disappointed; this isn’t a cheap import – it is supposed to be a quality device; though I learned this is not the case. Furthermore, I’ve noticed continued issues when switching. More than half of the time, when I switch, the displays don’t come up. I have to switch back and forth numerous times to get the monitors to be recognized. When doing so many switches, I’ve also noted that keyboard and mouse functions have gotten weird. The mouse wheel will often stop working, the keyboard doesn’t register; and the only solution left is to reboot. I am absolutely unimpressed – I strongly recommend individuals consider alternative vendors and avoid the frustrations that I and others have had with this manufacturer. Hopefully, they’ll get their act together and fix their faulty designs.
