Description

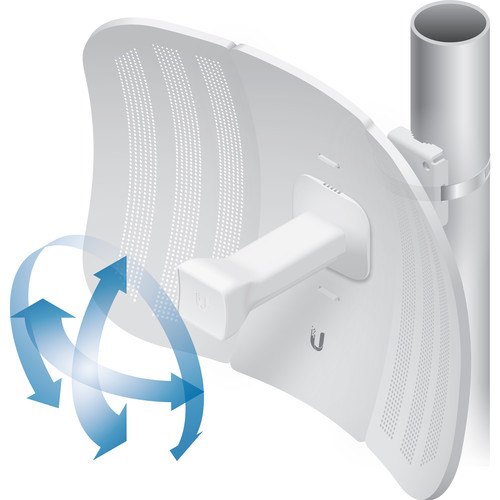

Snap together the LBE-M5-23 LiteBeam M5 from Ubiquiti Networks and take advantage of longer range, higher performance, and 3 axis adjustment flexibility. Operating on the license free 5 GHz frequency you can take advantage of data transfer rates of up to 100+ Mbps at distances of up to 18+ mi (30+ km). Combine the improved distance with Ubiquiti Networks own airMAX technology and you benefit from increased airtime efficiency through the use of Time Division Multiple Access or TDMA technology. Additionally, airMAX technology offers intelligent QoS and improved scalability.
Additional information
| Weight | 2.61 lbs |
|---|---|
| Dimensions | 11.7 × 5.45 × 4.5 in |
| Wireless Frequency Bands | 5 GHz |
| Sensitivity | -75 to -97 dBm |
| Antenna Gain | 23 dBi |
| Transmit Power | 19 to 25 dBm |
| Ports | 1 x 10/100 Mb/s Ethernet (RJ45) PoE |
| RAM | 64 MB |
| Processor | MIPS 74K |
| DC Input Power | VDC at 0.2 A |
| Power Consumption | 4 W |
| Operating Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 5 to 95% |
| Certifications | CE, FCC, IC, RoHS, as per Manufacturer |
| Mount Options | Pole |
Reviews (5)
5 reviews for Ubiquiti Networks LBE-M5-23 LiteBeam M5 with InnerFeed Technology
Only logged in customers who have purchased this product may leave a review.
Related products
Wireless Networking
$100.72
Wireless Networking
StarTech 300 Mb/s PCIe 802.11 b/g/n Wireless Network Adapter
$22.50
Wireless Networking
EnGenius EAP1300EXT Wave 2 11ac Dual-Band Wireless Indoor Access Point
$76.30
Wireless Networking
$107.24
Wireless Networking
$22.74
Wireless Networking
Netgear Orbi Voice Smart Speaker and AC2200 Tri-Band Wireless Mesh Extender Satellite
$112.46
Wireless Networking
$42.25
Wireless Networking
Ubiquiti Networks airMAX PowerBeam AC 5 GHz ISO Gen2 High Performance Bridge (5-Pack)
$454.99
Lea Witting
Verified Purchase
Excelente antena … se desempea excelentemente muy satisfecho con la antena … la unica desventaja es que al actualizar el firmware solo deja abiertos los canales de usa y canada pero en general muy bien.
Esperanza Ebert
Verified Purchase
We have used these for a long time had to replace one that got hit by lightning and ordered a few for backup. We have a 6.6 mile ptp bridge for internet and works as described and have not compliaints about this unit. Easy to set up
Melyna Schmitt
Verified Purchase
Running the LiteBeam M5 about a mile through a line of trees. Have 98.5% signal running at 100mbs. Really easy to set up. Could not be happier!
Shaniya Kohler
Verified Purchase
Excellent way to provide remote IP camera links with 9 degree beam width antenna. Easy to set up assuming familiarity with networking and access to Ubiquiti forums. Release software currently only supports Station mode. AP functionality is in beta, and currently works.
Amelia Considine
Verified Purchase
I purchased two for a Point to Point link about 4 miles apart and they work great. I did have quite a bit of frustration getting them going due to a TP-link switch with POE, even though I was not using the switch to provide POE I was using the provided POE injector when I would plug it in to the switch it would not boot and I could not access the GUI. I finally figured out that somehow the switch was remote resetting it as if I was pressing the remote reset switch on the POE adapter. After I figured that out and reconfigured it works great.
