Description

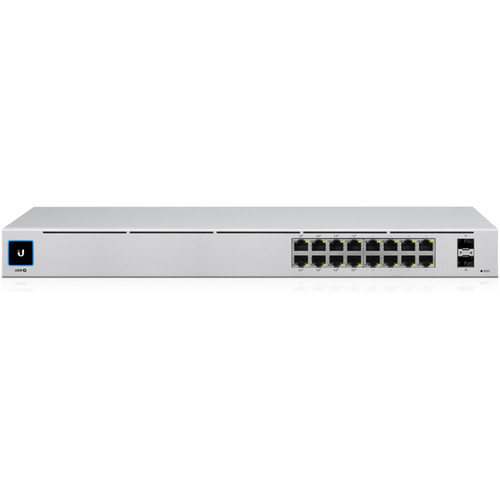

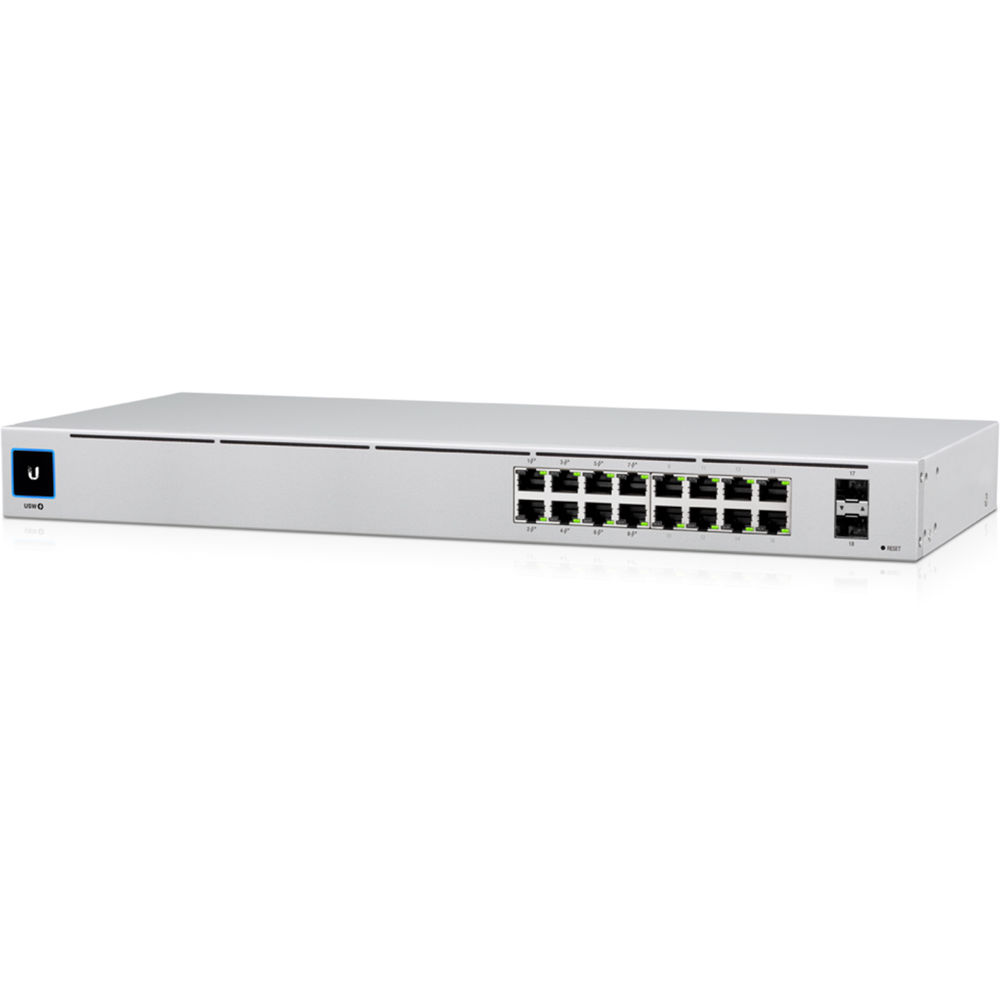

Expand your business’s network with the fully manageable UniFi 16-Port Managed Gigabit PoE Switch with SFP from Ubiquiti. Designed for a rack mount or desktop installation, this passively cooled 16-port Gigabit switch includes eight 32W PoE connectors with a total power budget of 42W to power devices such as network security cameras. Each port delivers 18 Gb/s non-blocking throughput, with a 36 Gb/s switching capacity, and a 26.78 Mpps forwarding rate. Two 1Gb SFP Ethernet Ports are available for additional expansion with compatible devices. Administrators may monitor and manage the switch with the 1.3″ touchscreen display or access and configure it and connected devices using the UniFi Network Controller application.
Additional information
| Weight | 7.88 lbs |
|---|---|
| Dimensions | 20.5 × 12.1 × 4.8 in |
| Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink)<br />8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE<br />2 x 10/100/1000 Mb/s Gigabit SFP (Uplink) |
| PoE per Port | 32 W |
| Indicator Lights | Link/Activity, Link/Activity/Speed, PoE, Status |
| Cooling System | Passive |
| Certifications | CE, FCC, IC, as per Manufacturer |
| Operating Humidity | 10 to 90% |
| Operating Temperature | 23 to 104°F / -5 to 40°C |
| Power Supply Type | Internal |
| PoE Power Budget | 42 W |
| Supported Protocols | Auto-MDIX/MDI<br>Port Mirroring |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Draw | 18.00 W (Max) |
| OS Compatibility | macOS 10 or Later<br />Windows 7 or Later<br />Linux |
| Switching Bandwidth | 18 Gb/s (Non-Blocking) |
| Forwarding Rate | 26.78 Mpps |
| Supported IEEE Standards | 802.3af, 802.3at |
| Transmission Method | Store-and-Forward |
| Rack Form Factor | 1 RU |
Reviews (8)
8 reviews for Ubiquiti Networks UniFi 16-Port Managed Gigabit PoE Switch with SFP
Only logged in customers who have purchased this product may leave a review.
Related products
$2.21
$221.64
Wired Networking
Netgear GS516PP 16-Port Gigabit PoE+ Compliant Unmanaged Switch
$195.99
Wired Networking
$5.99
Wired Networking
Cisco SG250-50 250 Series 50-Port Managed Gigabit Ethernet Switch
$631.14
Wired Networking
$142.17
Wired Networking
$31.19
Wired Networking
$244.99
Carley Rath
Verified Purchase
Uniquiti makes it easy and so does B&H.
Ervin O’Hara
Verified Purchase
I have never seen Unifi with just 8 POE so make sure you get the right thing.
Eleanore Ledner
Verified Purchase
Decent switch, pricey for what it can do, I dislike that they gutted the POE capability of this switch compared to it’s first generation. The POE budget is 42 watts that makes no sense at all, 60 watts or slightly more would have made more sense given the per port max limit of 32 watts.. I say the same for what they did on the 24 port version. The only consolation is that some WiFi AP’s are only consuming about 6 watts so far, under typical SOHO/SMB operation. It detected my POE devices without issue, and was detected by my cloud key device right away, so adoption was as simple as logging in to my existing test network to set it up. The switch is completely silent, it stays cool to the touch in my wiring closet and has done everything i’ve asked of it so far with no issue.
Christopher Howe
Verified Purchase
Uniquiti makes it easy and so does B&H.
Cloyd Bauch
Verified Purchase
This switch is connected to my home network, running 100% Ubiquiti equipment. This switch replaced the 8 port 150w switch which I now use for miscellaneous projects. Setup was fast and easy. Each port can be configured for VLANS, APs, or other devices for a custom setup.
Reilly Reichel
Verified Purchase
Works well for our use
Kendrick Mosciski
Verified Purchase
Bought this for a client that needed switches on two floors. I like that this is silent. If you buy this, be sure to notice that this only has 8 PoE ports.
Domenick Lowe
Verified Purchase
Good performing switch, easy to manage. A lot of flexibility for the price.
