Description

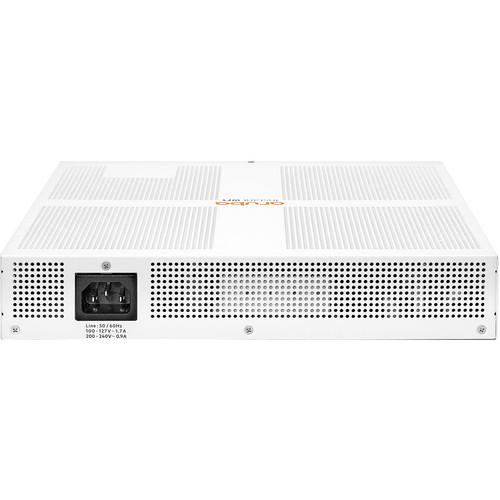

Expand your small office’s network capacity by using the Instant On 1930 8-Port Gigabit PoE+ Compliant Managed Switch with SFP from Aruba to connect computers, network attached storage, and other high-bandwidth devices. This rack-mountable smart managed switch features eight PoE+ compliant Gigabit Ethernet ports with a 20 Gb/s switching capacity and a 14.88 Mpps forwarding capacity powered by an 800 MHz ARM Cortex-A9 processor, 512MB RAM, and 256MB of flash storage with a 1.5MB packet buffer. Each PoE+ port supports up to 30W of power delivery, with a total budget of 124W, to connect security cameras, VoIP phones, and other powered devices. There are also two SFP ports available that support fiber line uplinks and other connections that carry data across greater distances than copper lines. With its fanless design, the Instant On 1930 is built to quietly blend into almost any environment. Additionally, the switch includes a suite of security controls that allow greater control over network access, configured using the web-based application or downloadable mobile app.
Additional information
| Weight | 8.08 lbs |
|---|---|
| Dimensions | 20.1 × 14.1 × 5.4 in |
| Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)<br />2 x 10/100/1000 Mb/s Gigabit SFP |
| Processor | 800 MHz ARM Cortex-A9 |
| Indicator Lights | Link/Activity/PoE, Power |
| Cooling System | Passive |
| Noise Level | 0.0 dB |
| Operating Altitude | 10, 000' / 3048 m |
| Storage Humidity | 15 to 95% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Humidity | 15 to 95% |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Power Supply Type | Internal |
| PoE per Port | 30 W |
| PoE Power Budget | 124 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.8 to 1.6 A |
| Power Draw | 150.2 W (Max)<br />11.7 W (Idle) |
| Memory | 512 MB |
| RAM Buffer | 1.5 MB per Device |
| Layer Services Supported | Layer 2 Support |
| Static Routes | 32 |
| Supported Protocols | Auto-MDIX/MDI<br>Auto-VoIP<br>IGMP Snooping<br>IPv4<br>IPv6<br>Link Aggregation<br>Port Mirroring<br>SNMPv1<br>SNMPv2c<br>SNMPv3 |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9216 Bytes |
| MAC Address Table Size | 8K |
| Security Features | DHCP Snooping<br>DoS Attack Prevention<br>RADIUS Authentication<br>Storm Control |
| Access Control List | 50 |
| SNMP Support | 1, 2, 3 |
| Flash Memory | 256 MB |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1s, 802.1w, 802.1x, 802.2az, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3p, 802.3q, 802.3u, 802.3x, 802.3z |
| Latency | 5.2 µs |
| Forwarding Rate | 14.88 Mpps |
| Switching Bandwidth | 20 Gb/s |
| Priority Queues | 4 |
| Packet Buffer | 64 B |
| Rack Form Factor | 1 RU |
Reviews (5)
5 reviews for Aruba Instant On 1930 8-Port Gigabit PoE+ Compliant Managed Switch with SFP
Only logged in customers who have purchased this product may leave a review.
Related products
Wired Networking
$15.99
Wired Networking
Cisco SG250-50 250 Series 50-Port Managed Gigabit Ethernet Switch
$631.14
Wired Networking
$75.19
Wired Networking
Cisco RV345P 16-Port Gigabit PoE+ Compliant Router with Dual WAN
$350.69
Wired Networking
Netgear GS305PP 5-Port Gigabit PoE+-Compliant Unmanaged Switch
$58.49
$271.49
$259.35
Wired Networking
$5.99
Karolann Hill
Verified Purchase
I got this switch and 2 AP-22’s. I have one AP-22 running POE at the switch and the other is plugged in upstairs. I also have several PC’s plugged directly into the switch Wi-Fi 6 is great and this switch is rock solid. The only time it’s offline is when it’s rebooting from a scheduled update (usually Sunday at 2am) or when the power has gone out. The app to control it all is easy to use and gives me quick control of the guest network.
Noble Metz
Verified Purchase
I bought this as a supplement to a 1930 48-Port switch when I realized I was almost out of ports. Setup is super easy and the user interface is great. Setting up a guest network is a breeze. No issues so far.
Rickie Runolfsdottir
Verified Purchase
I recently purchased this as an alternative to Unifi and wow…I really like the options and ability to edit this switch. The only thing I did not like is the cloud management. I prefer local because I don’t like putting my stuff at risk by going through the internet. We have enough vulnerabilities in our networks, why risk it even more. Besides the options for management is better for local than the cloud. If you can get this, go get it…great switch.
Heath Bailey
Verified Purchase
Poor function of multi-purpose Ethernet status LEDs makes quick diagnosis of Ethernet issues impossible. Well ventilated fabless design with internal 120v power supply was the most attractive feature.
Buck Quigley
Verified Purchase
Instant ON is a great solution. My switch came up quickly albeit not instantly. I was hoping I could look at the Instant On config and then change the switch to local web control which doesn’t appear possible. The unit has 8/8 ports with POE whereas my previous vendor only had 4/8. This works well for my Dante. Rework.
