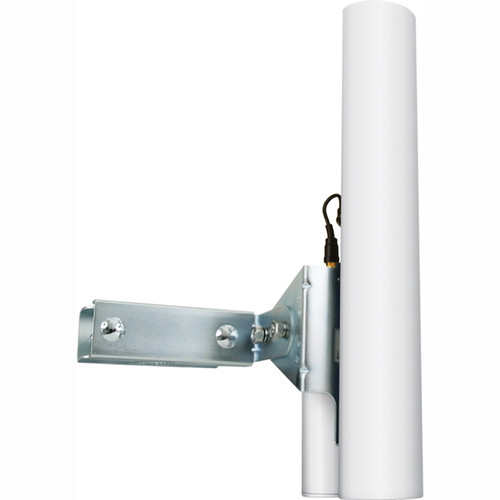

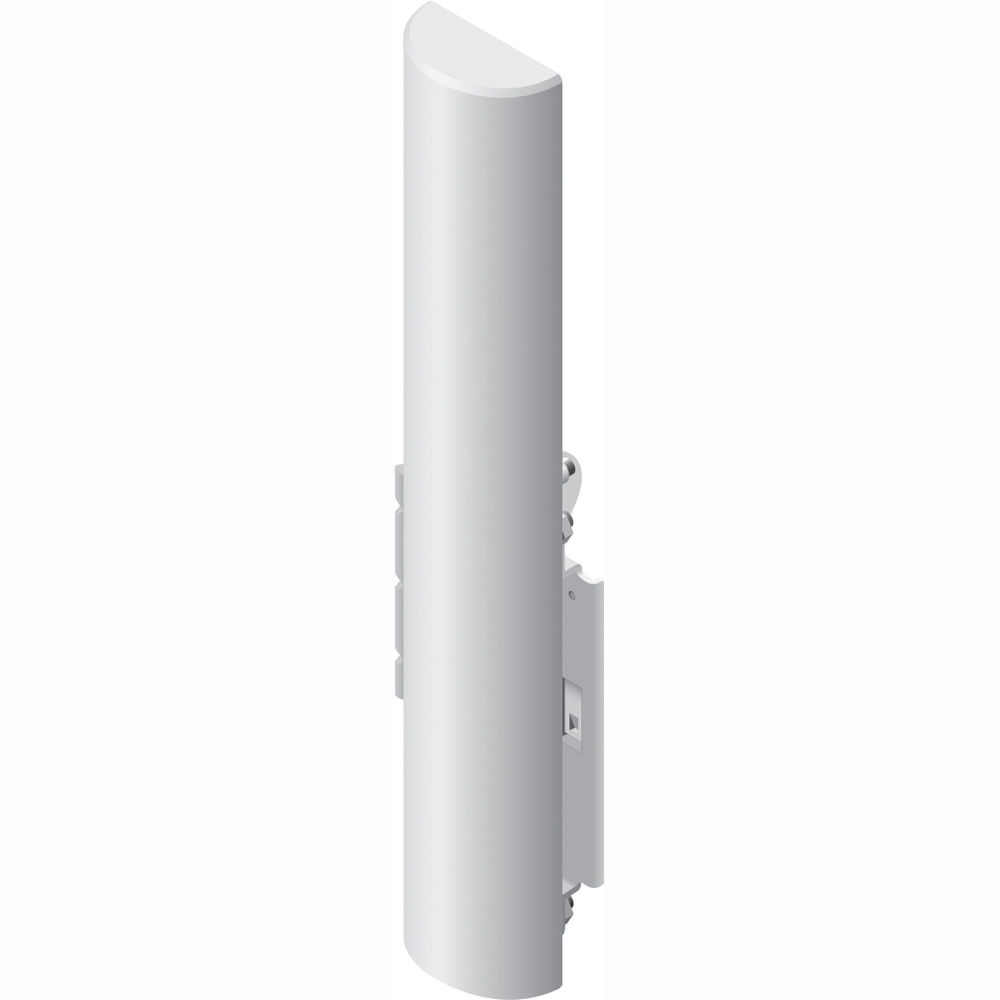

The AM-5G16-120 AirMAX 5 GHz 2×2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 5 GHz frequency and offers a gain of 16 dBi. It delivers 2×2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.
Ubiquiti Networks AM-5G16-120 AirMAX 5 GHz 2×2 MIMO Sector Antenna
$63.20
In stock
Description
Additional information
Weight | 3.1 lbs |
---|---|
Dimensions | 16.6 × 5.45 × 4.65 in |
Frequency Range | 5.10 to 5.85 GHz |
Gain | 15.0 to 16.0 dBi |
Hpol Beamwidth | 137° (6 dB) |
Vpol Beamwidth | 118° (6 dB) |
Beamwidth | Electrical: 8° |
Electrical Downtilt | 4° |
VSWR (Voltage Standing Wave Ratio) | 1.5:1 |
Wind Survivability | 125 mph |
Wind Loading | 6 lbf @100 mph |
Polarization | Dual-Linear |
Cross-pol Isolation | 22 dB Min |
ETSI Specification | EN 302 326 DN2 |
